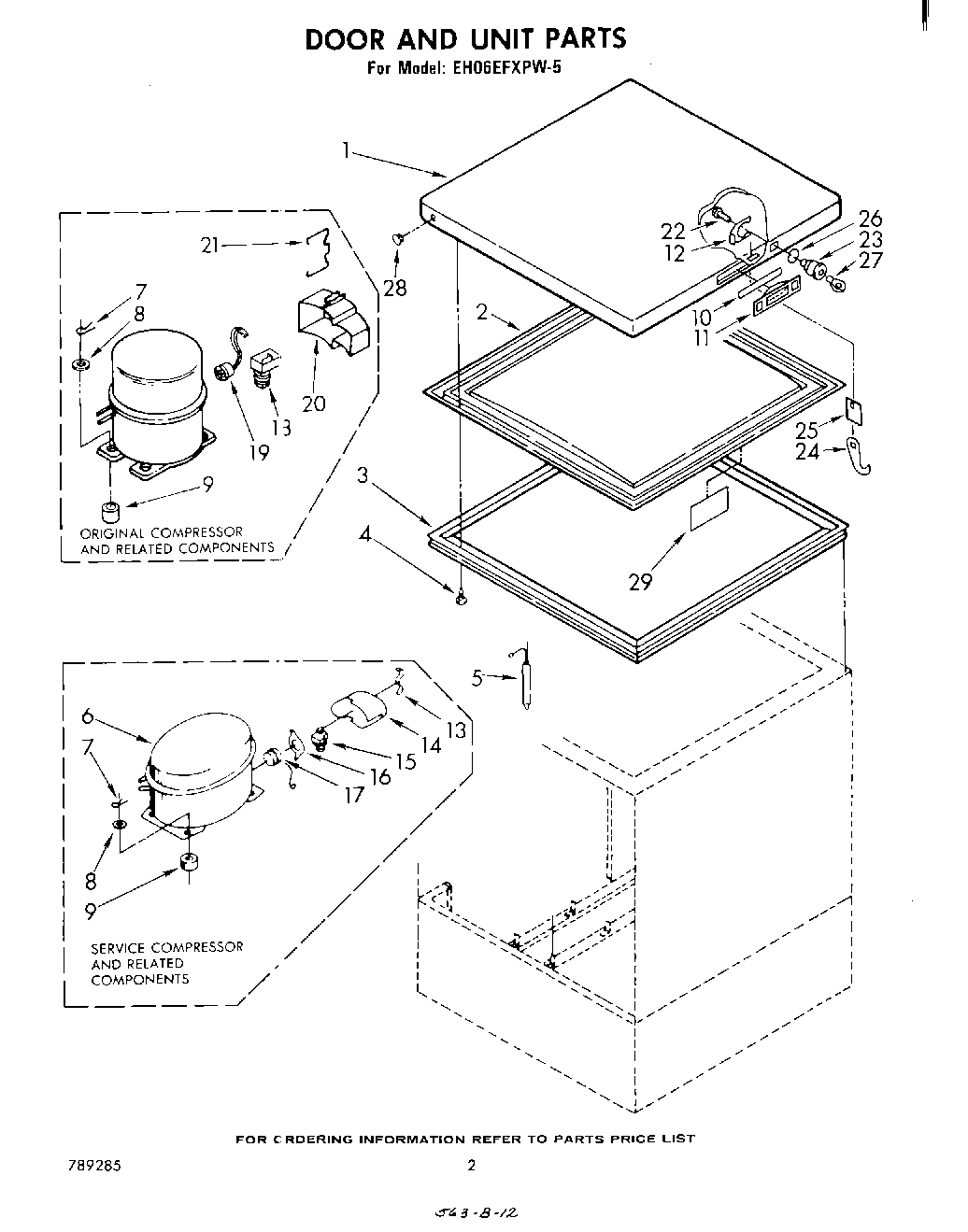

EH06EFXPW5 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Leveler (Thinner) (2oz.)
	WPL LIT656493
	WPL LIT728839
	WPL LIT730047
	WPL LIT730075
	350942 Whirlpool Spray Paint
	WPL LIT789285
1	Door
2	Panel
3	Gasket
4	Clip (44)
5	Drier
6	876765 Whirlpool Primary Mounting Kit Refrigerator
6	Compressor (Service Replacement) (Includes Items 13, 14, 15, 16 & 17)
7	Clip (4)
8	Washer
9	Grommet (4)
10	Gasket, Handle
11	Handle, Snap-In
12	Clip, Lock
13	Cover, Spring
14	WPL 549505
15	Relay
16	Spring, Overload
17	Overload
18	Relay, Start (Used W/ Original Compressor)
19	Overload (Used W/ Original Compressor)
20	Cover, Terminal
21	Strap
22	Screw
23	Lock
24	Hook, Lock
25	Shroud, Lock
26	“O“ Ring
27	WP842177 Whirlpool Refrigerator Door Key
28	Hole Plug (2)
29	WP503695 Whirlpool Refrigerator Sealer
29	212643 Whirlpool Refrigerator Permagum Sealer
29	VALVE, ACCESS (5/8“)
29	799344 Whirlpool Refrigerator Paint
29	Decal (Estate Series)
29	72017 Whirlpool Appliance Touch-Up Paint White
29	833938 Whirlpool Refrigerator Terminal
29	978026 Whirlpool Refrigerator Primary Valve
29	WP505587 Whirlpool Refrigerator Sealer
29	978027 Whirlpool Refrigerator Primary Valve
29	978030 Whirlpool Refrigerator Valve
29	WP978025 Whirlpool Refrigerator Valve
29	VALVE, ACCESS (1/2“)
29	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
29	Kit, Insulation (Door Only)
