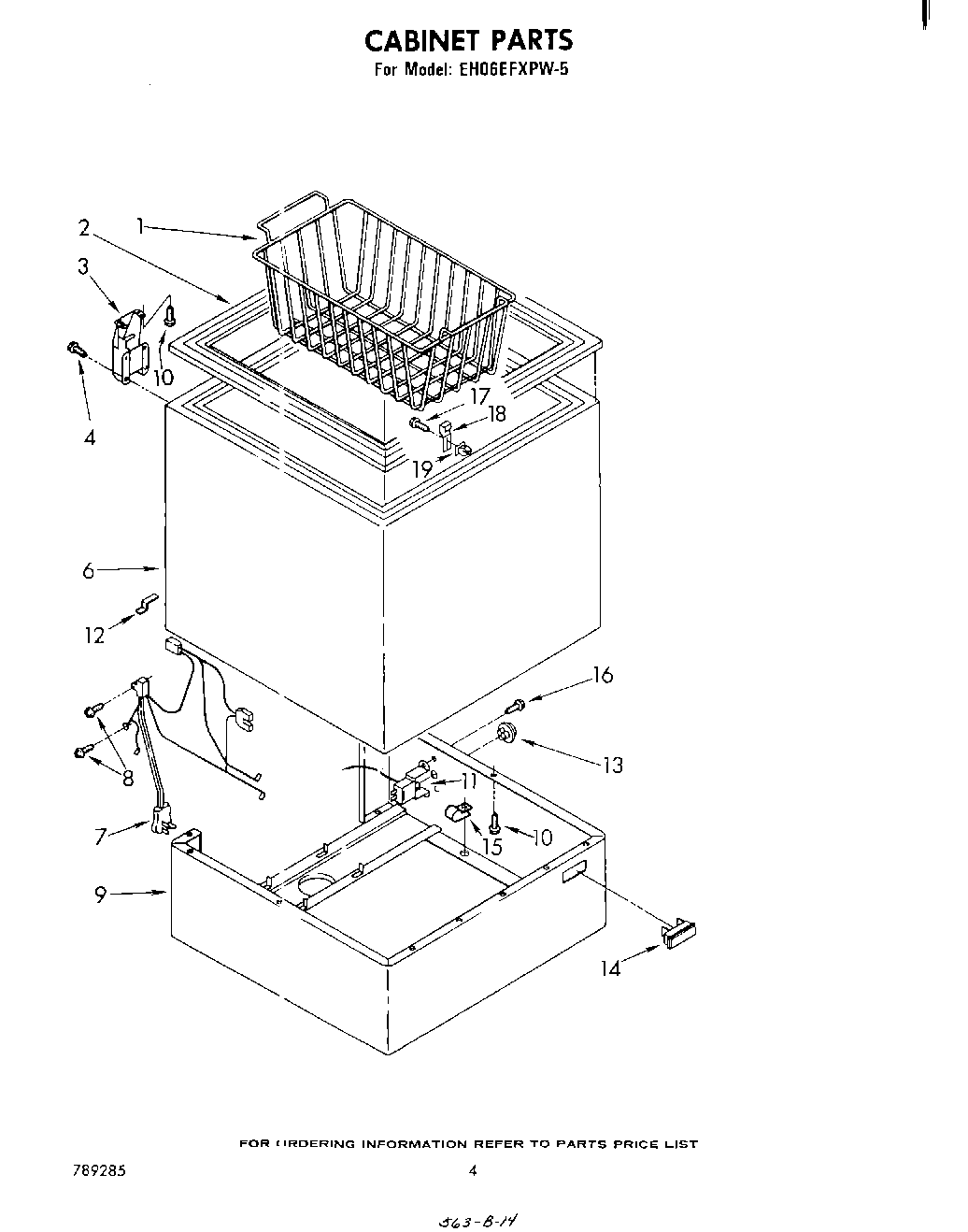

EH06EFXPW5 03 – SECTION

Written by

Products

Position	Product
1	Basket
2	Collar
3	Hinge
4	Screw (6)
6	Cabinet (Not A Serviceable Part)
7	Harness, Wiring
8	Screw
9	Base
10	Screw (12)
11	Control
12	Clip, Cord Plug
13	Knob, Control
14	Light, Indicator
15	Clamp, Wire
16	Screw
17	WP487353 Whirlpool Refrigerator Screw
18	Strike, Lock
19	Grommet
