EH070CFXCQ00 03 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
Customer Touch-Up Material

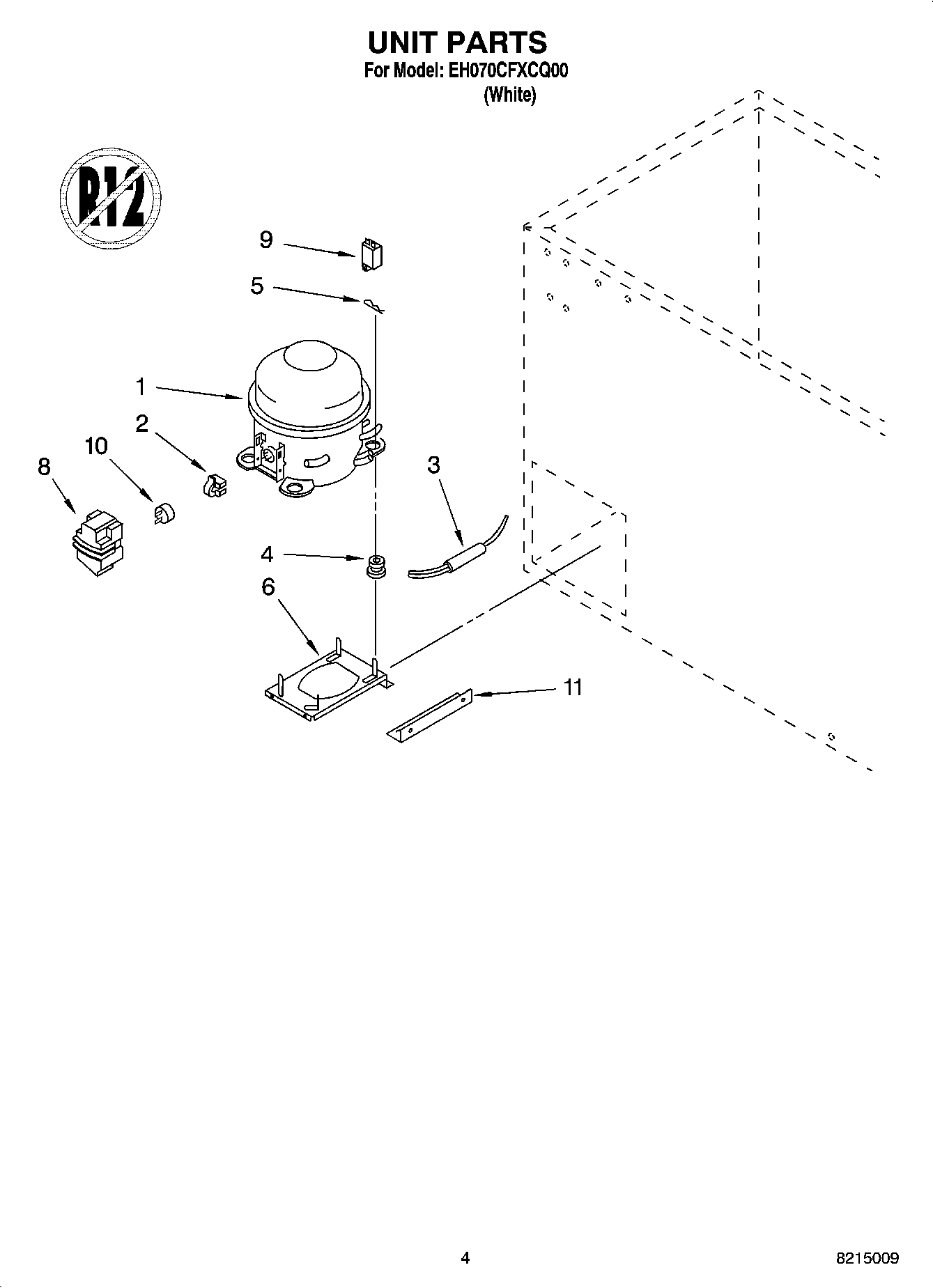

Parts Not Illustrated and Optional Parts (Not Included)
Clip, Gasket (Kit Of 60)
1W10237328 Whirlpool Refrigerator Compressor
2Relay
3W10843121 Whirlpool Refrigerator Tube
4Grommet, Mounting Compressor
5Clip, Hitch Pin
6Base, Compressor
8Cover
9Capacitor
10Overload
113-81556-001 Whirlpool Brace
11REFRIGERANT CHARGE 3.7 oz. (R-134A)
