EH070FXEN00 01 – SECTION

Written by

Products

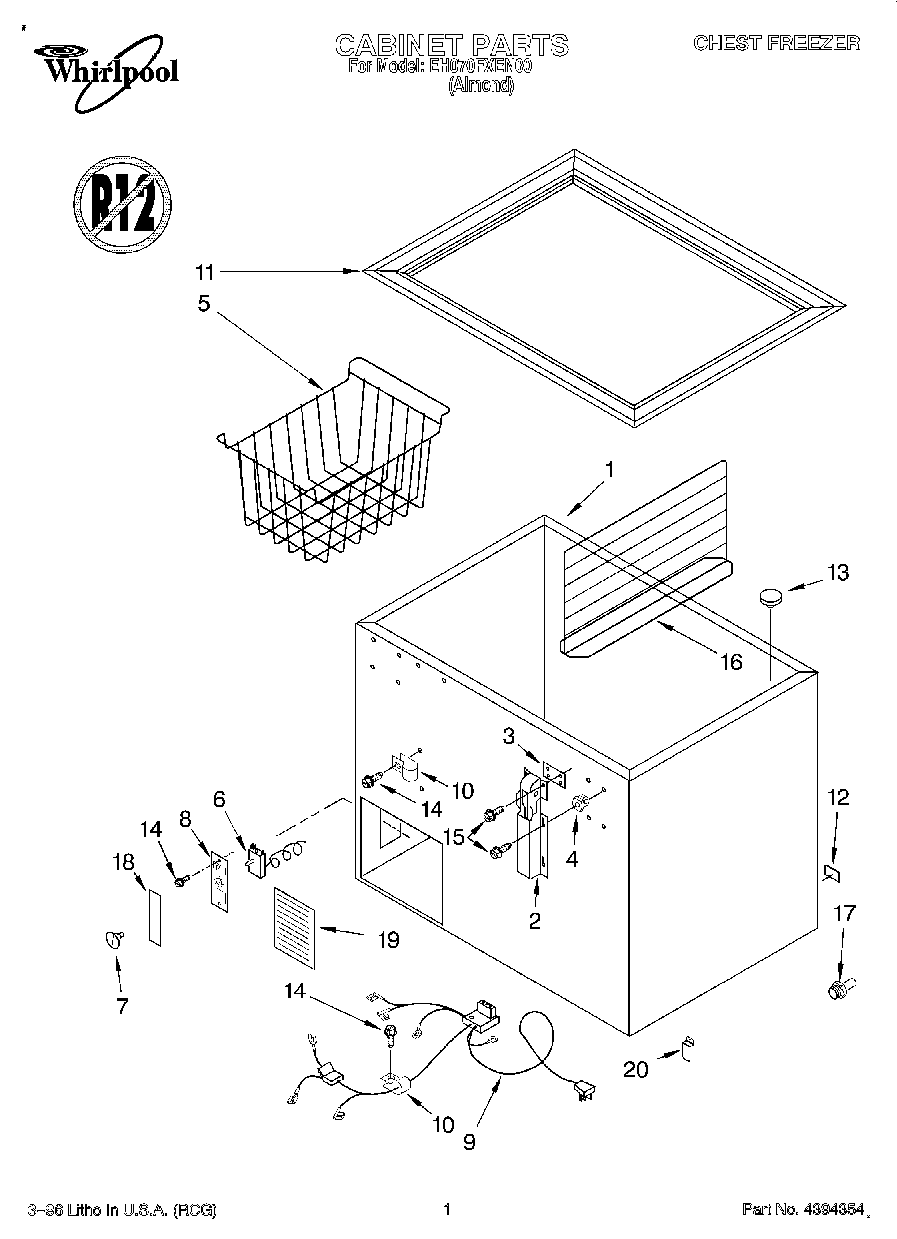

Position	Product
	Use & Care Guide
	Energy Label
1	Cabinet (Not A Serviceable Part)
2	Hinge Assembly
3	1-17548-006 Whirlpool Refrigerator Spacer
4	4356321 Whirlpool Refrigerator Grommet
5	8210434A Whirlpool Refrigerator Basket
6	Thermostat
7	Knob, Thermostat
8	Control Box
9	External, Wiring Harness
10	488946 Whirlpool Air Conditioner Clamp
11	Breaker Strip
12	Drain Plug
13	Drain, Plug
14	3-24004-049 Whirlpool Screw
15	4356491 Whirlpool Refrigerator Screw
16	Divider (Optional)
17	W11663505 Whirlpool Hose Adapter
18	Insert, Control
19	Access Panel
20	Rivet Kit (60)
20	Almond (Uncut)
20	Clip
20	WP72107 Whirlpool Touchup
20	350956 Whirlpool Spray Assembly
