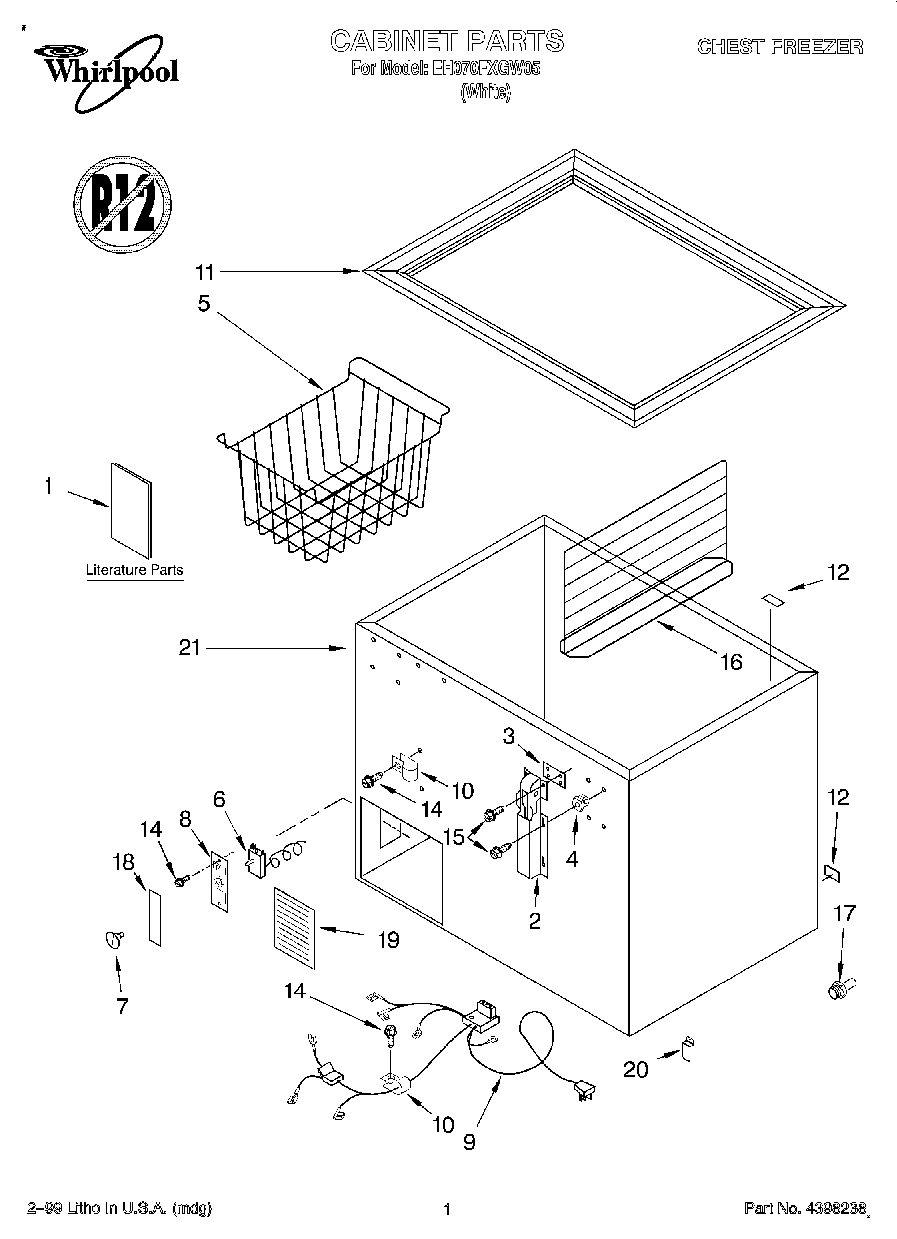

EH070FXGW05 01 – SECTION

EH070FXGW05 01 – SECTION

Written by

in

EH070FXGW05 01 – SECTION

Products

PositionProduct
1Energy Label
1Literature Parts (Owner`s Manual)
2Hinge Assembly
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
58210434A Whirlpool Refrigerator Basket
6WP4-35940-001 Whirlpool Refrigerator Thermostat
7Knob, Thermostat
8W10682894 Whirlpool Refrigerator Control Box
9External, Wiring Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
12Drain, Cap
143-24004-049 Whirlpool Screw
154356491 Whirlpool Refrigerator Screw
16Divider (Optional)
17W11663505 Whirlpool Hose Adapter
18Insert, Control
19Access Panel
20Clip
21Clip, Gasket (Kit Of 60)
21350956 Whirlpool Spray Assembly
21Almond (Uncut)
21WP72107 Whirlpool Touchup
21Cabinet (Not A Serviceable Part)
