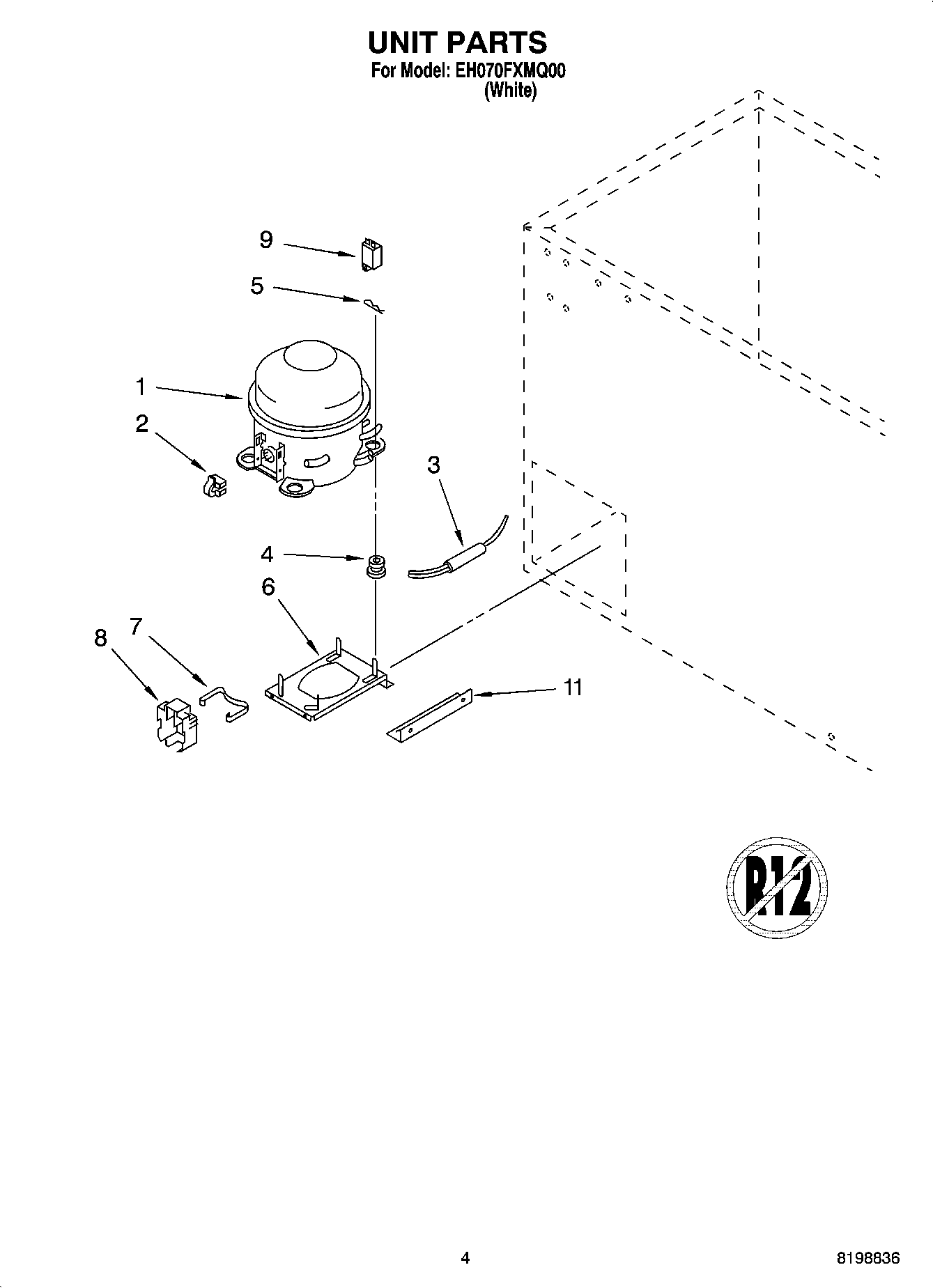

EH070FXMQ00 03 – UNIT PARTS

Written by

Products

Position	Product
1	W10823815 Whirlpool Refrigerator Compressor
2	Relay
3	W10843121 Whirlpool Refrigerator Tube
4	Grommet, Mounting Compressor
5	Clip, Hitch Pin
6	Base, Compressor
7	Clip, Cover
8	Cover
9	WPW10662129 Whirlpool Refrigerator Run Capacitor
11	3-81556-001 Whirlpool Brace
