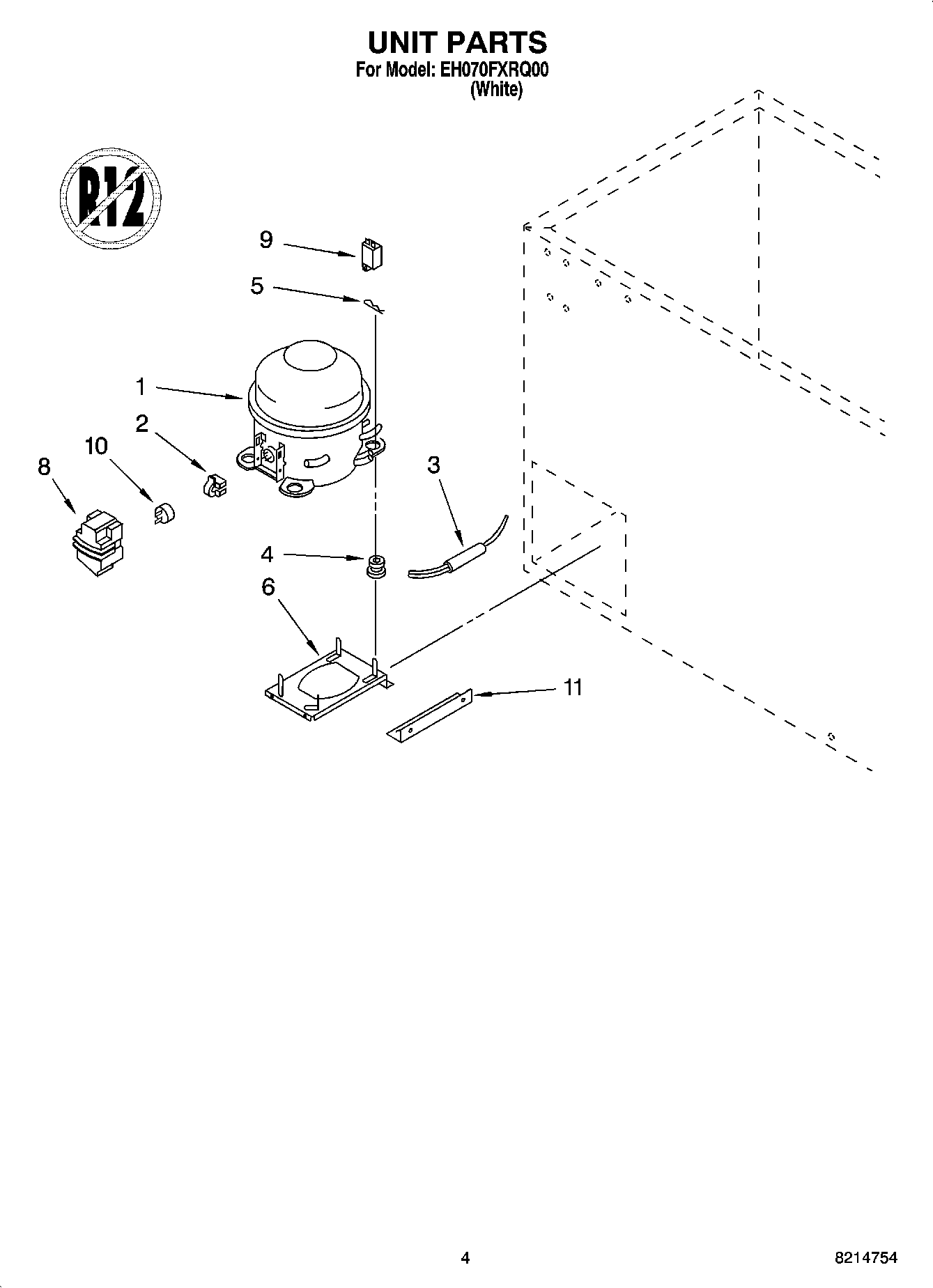

EH070FXRQ00 03 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Customer Touch-Up Material
	Parts Not Illustrated and Optional Parts (Not Included)
	Clip, Gasket (Kit Of 60)
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
1	W10237328 Whirlpool Refrigerator Compressor
2	Relay
3	W10843121 Whirlpool Refrigerator Tube
4	Grommet, Mounting Compressor
5	Clip, Hitch Pin
6	Base, Compressor
8	Cover
9	Capacitor
10	Overload
11	3-81556-001 Whirlpool Brace
11	REFRIGERANT CHARGE 3.7 oz. (R-134A)
