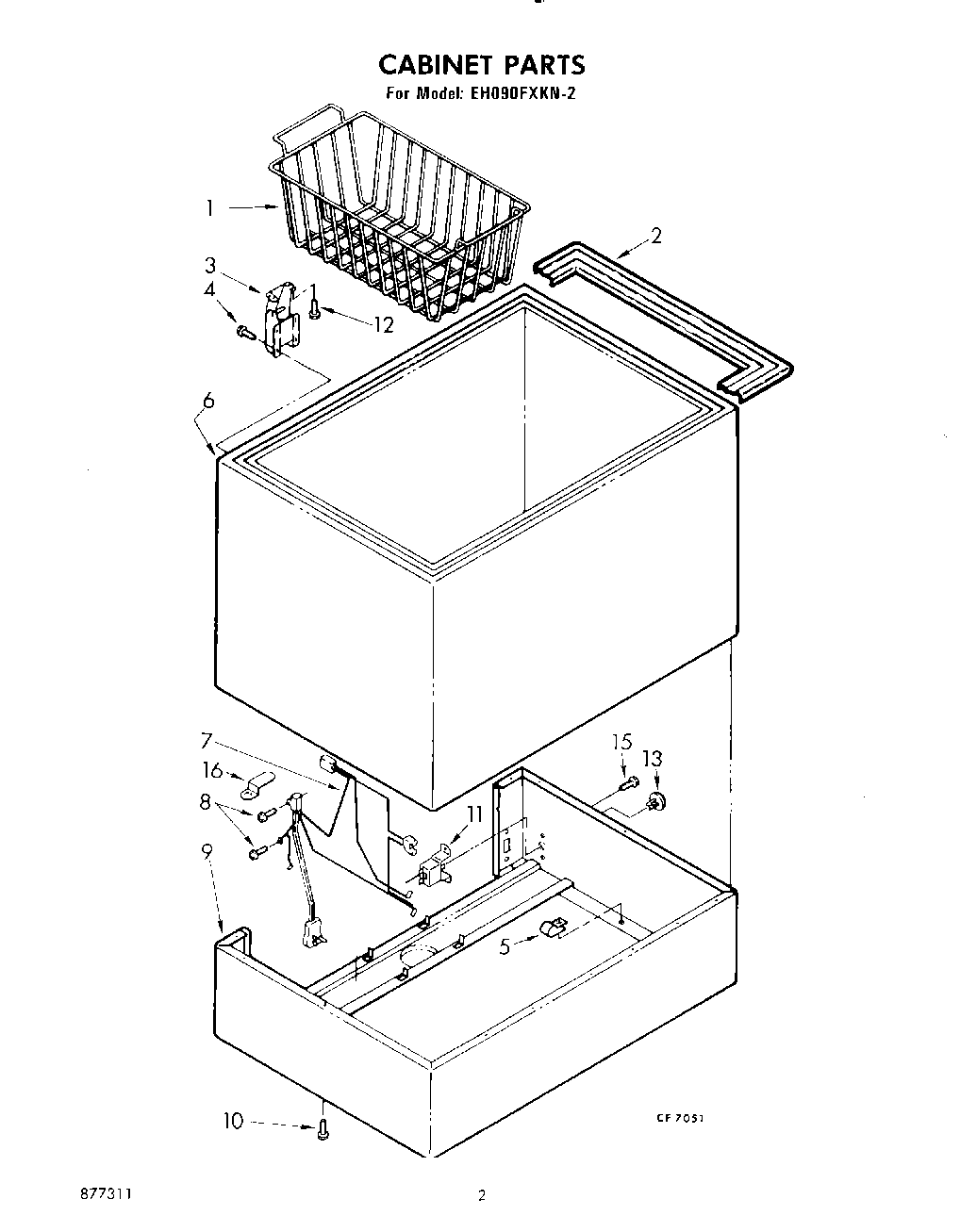

EH090FXKN2 02 – SECTION

Written by

Products

Position	Product
1	Basket
2	Collar Breaker
3	Hinge
4	Screw (6)
5	Clamp, Wire
6	Cabinet (Not A Serviceable Part)
7	Harness, Wiring
8	Screw
9	Base
10	WP489069 Whirlpool Compactor Screw
11	Control
12	Screw (6)
13	Knob, Control
15	Screw
16	WP978025 Whirlpool Refrigerator Valve
16	Guide, Use & Care
16	Book, How To Freeze
16	Enamel, White (1 Qt. Uncut)
16	List, Parts
16	energy guide
16	Kit, Insulation (Door Only)
16	Clip, Cord Plug
16	Start Kit
16	350956 Whirlpool Spray Assembly
16	72017 Whirlpool Appliance Touch-Up Paint White
16	799344 Whirlpool Refrigerator Paint
16	WP72107 Whirlpool Touchup
16	Almond (Uncut)
16	VALVE, ACCESS (5/8“)
16	212643 Whirlpool Refrigerator Permagum Sealer
16	350942 Whirlpool Spray Paint
16	833938 Whirlpool Refrigerator Terminal
16	978026 Whirlpool Refrigerator Primary Valve
16	WP505587 Whirlpool Refrigerator Sealer
16	978027 Whirlpool Refrigerator Primary Valve
16	978030 Whirlpool Refrigerator Valve
16	VALVE, ACCESS (1/2“)
16	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
16	Leveler (Thinner) (2oz.)
16	WPL 799351
16	350930 Whirlpool White Spray Paint
