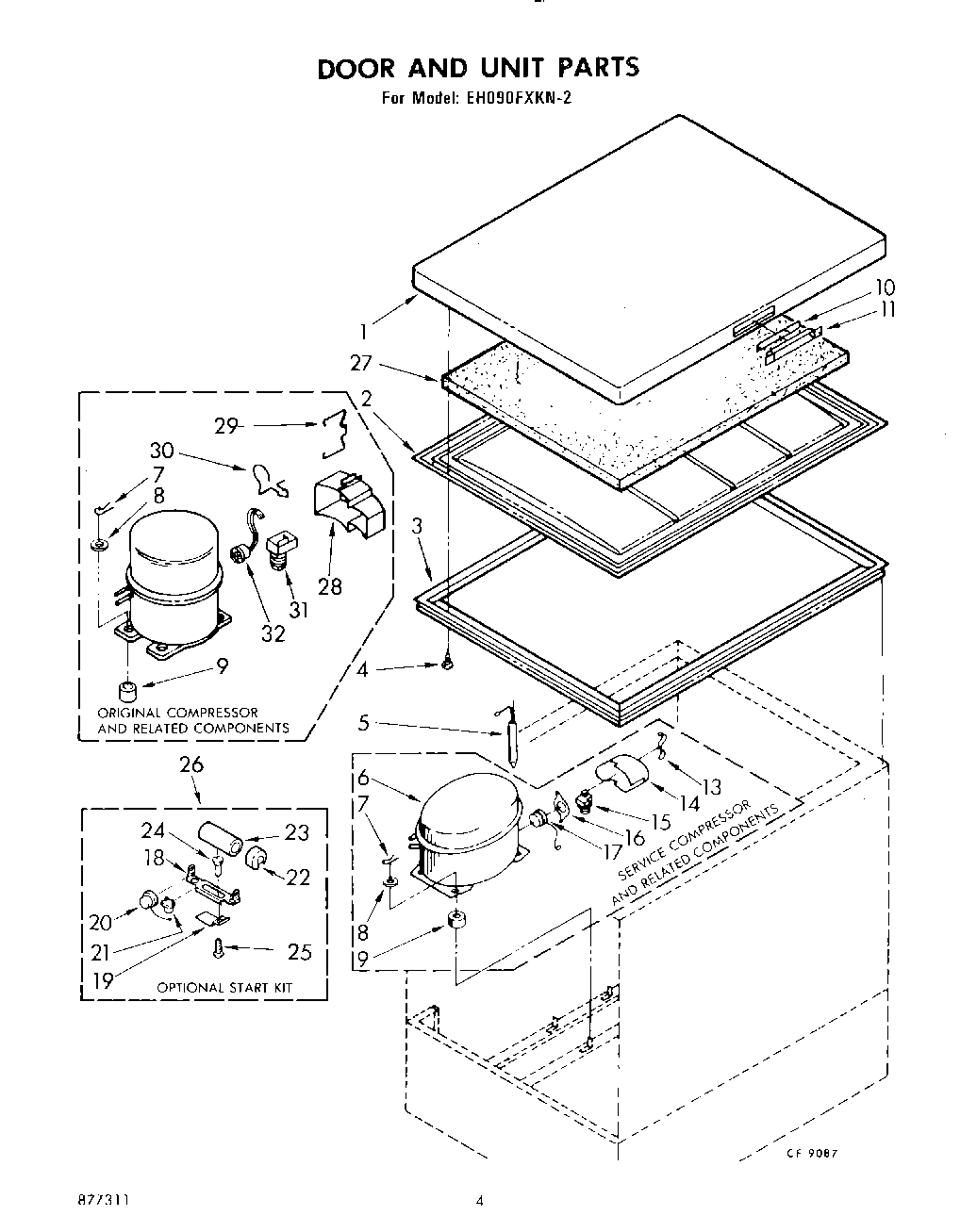

EH090FXKN2 03 – SECTION

Written by

Products

Position	Product
1	Door
2	Panel
3	WP730643 Whirlpool Refrigerator Door Gasket
4	Clip (36)
5	W10843121 Whirlpool Refrigerator Tube
6	Compressor (Includes Items 13, 14, 15, 16 & 17)
7	clip (4)
8	Washer
9	Grommet (4)
10	Gasket, Handle
11	Handle, Snap-In
13	Cover Strap
14	Case, Relay
15	Relay
16	Spring
17	Overload
18	Support, Bracket (Used On Start Kit 482278)
19	Bracket, Mounting (Used On Start Kit 482278)
20	Overload (Used On Start Kit 482278)
21	Relay (Used On Start Kit 482278)
22	Cap, Capacitor (Used On Start Kit 482278)
23	WP482156 Whirlpool Refrigerator Capacitor
24	Screw (2) (Used On Start Kit 482278)
25	Screw (Used On Start Kit 482278)
26	Start Kit
27	Kit, Insulation (Door Only)
28	Cover, Relay & Overload Assembly (Used W/Original Compressor)
29	Clamp (Used W/Original Compressor)
30	Clip (Used W/Original Compressor)
31	Relay (W/Original Compressor)
32	Overload (W/Original Compressor)
