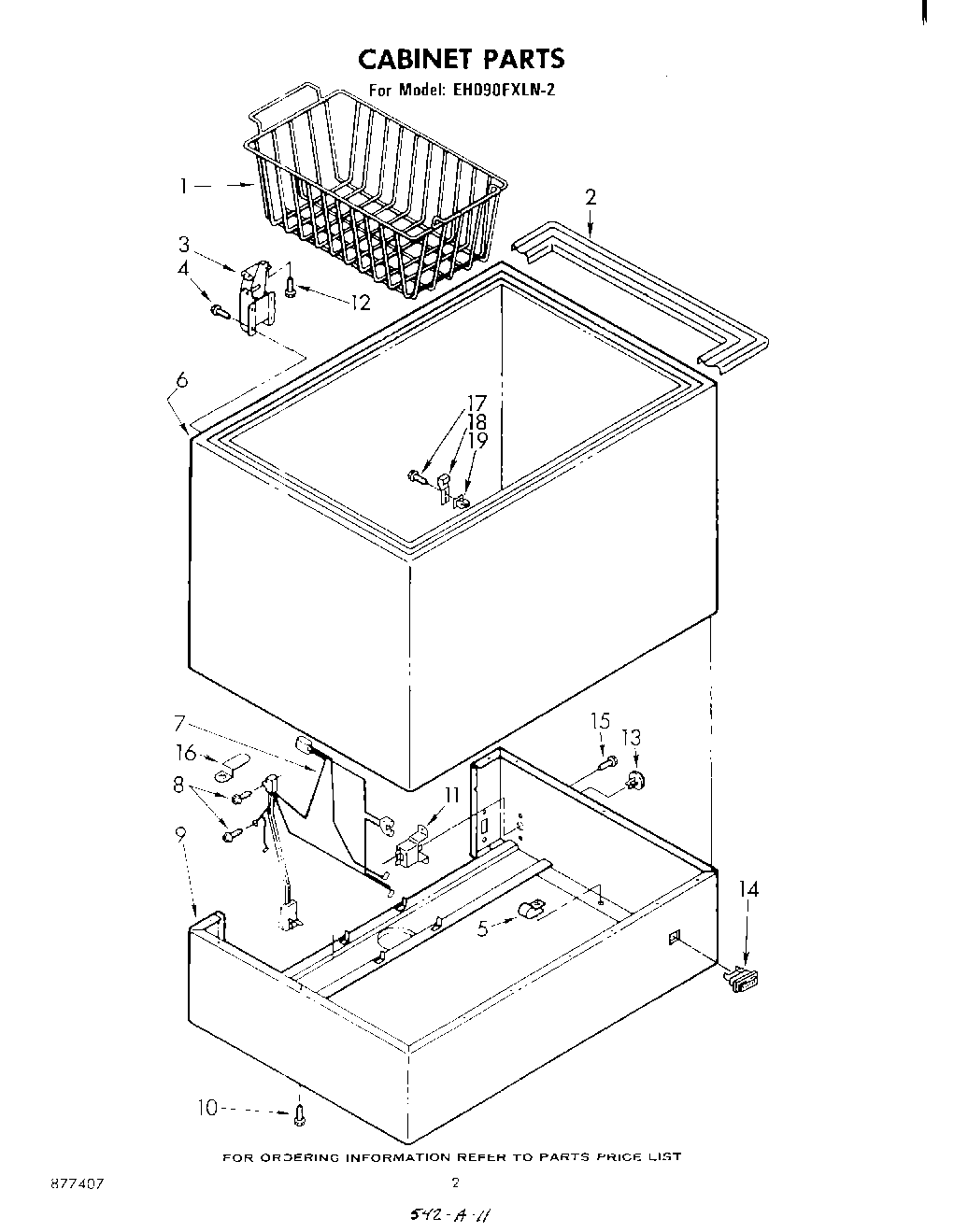

EH090FXLN2 02 – SECTION

Products

Position	Product
1	Basket
2	Collar Breaker
3	Hinge
4	Screw (6)
5	Clamp, Wire
6	Cabinet (Not A Serviceable Part)
7	Harness, Wiring
8	Screw
9	Base
10	WP489069 Whirlpool Compactor Screw
11	Control
12	Screw (6)
13	Knob, Control
14	Light, Indicator
15	Screw
16	Clip, Cord Plug
17	WP487353 Whirlpool Refrigerator Screw
18	Strike, Lock
19	Book, How To Freeze
19	tech sheet
19	energy guide
19	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
19	list, parts
19	Kit, Insulation (Door Only)
19	Almond (Uncut)
19	Use & Care Guide
19	Start Kit
19	833938 Whirlpool Refrigerator Terminal
19	350942 Whirlpool Spray Paint
19	212643 Whirlpool Refrigerator Permagum Sealer
19	VALVE, ACCESS (5/8“)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	350956 Whirlpool Spray Assembly
19	WP503695 Whirlpool Refrigerator Sealer
19	978026 Whirlpool Refrigerator Primary Valve
19	WPL 799351
19	Leveler (Thinner) (2oz.)
19	Grommet
19	VALVE, ACCESS (1/2“)
19	WP978025 Whirlpool Refrigerator Valve
19	978030 Whirlpool Refrigerator Valve
19	978027 Whirlpool Refrigerator Primary Valve
19	WP505587 Whirlpool Refrigerator Sealer
19	350930 Whirlpool White Spray Paint
