EH090FXLN5 02 – SECTION

EH090FXLN5 02 – SECTION

Written by

in

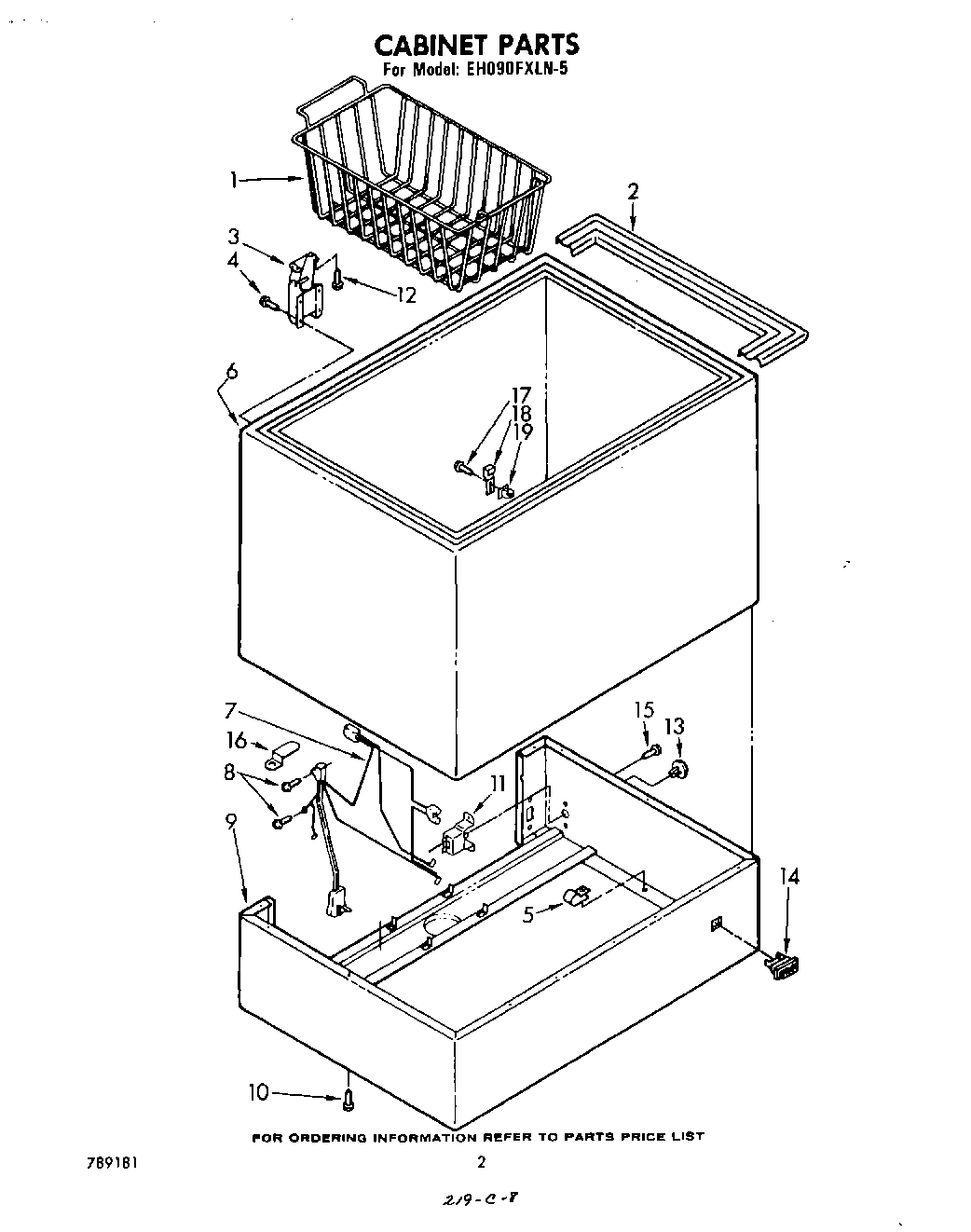

EH090FXLN5 02 – SECTION

Products

PositionProduct
1Basket
2Collar Breaker
3Hinge
4Screw (6)
5Clamp, Wire
6Cabinet (Not A Serviceable Part)
7Harness, Wiring
8Screw
9Base
10WP489069 Whirlpool Compactor Screw
11Control
12Screw (6)
13Knob, Control
14Light, Indicator
15Screw
16Clip, Cord Plug
17WP487353 Whirlpool Refrigerator Screw
18Strike, Lock
19Book, How To Freeze
19Almond (Uncut)
19VALVE, ACCESS (1/2“)
19Energy Guide
19Kit, Insulation (Door Only)
19Tech Sheet
19List, Parts
19WPL 799351
19350956 Whirlpool Spray Assembly
1972017 Whirlpool Appliance Touch-Up Paint White
19799344 Whirlpool Refrigerator Paint
19WP72107 Whirlpool Touchup
19VALVE, ACCESS (5/8“)
19212643 Whirlpool Refrigerator Permagum Sealer
19350942 Whirlpool Spray Paint
19833938 Whirlpool Refrigerator Terminal
19WP503695 Whirlpool Refrigerator Sealer
19978026 Whirlpool Refrigerator Primary Valve
19WP505587 Whirlpool Refrigerator Sealer
19978027 Whirlpool Refrigerator Primary Valve
19978030 Whirlpool Refrigerator Valve
19WP978025 Whirlpool Refrigerator Valve
19WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
19Grommet
19Leveler (Thinner) (2oz.)
19350930 Whirlpool White Spray Paint
