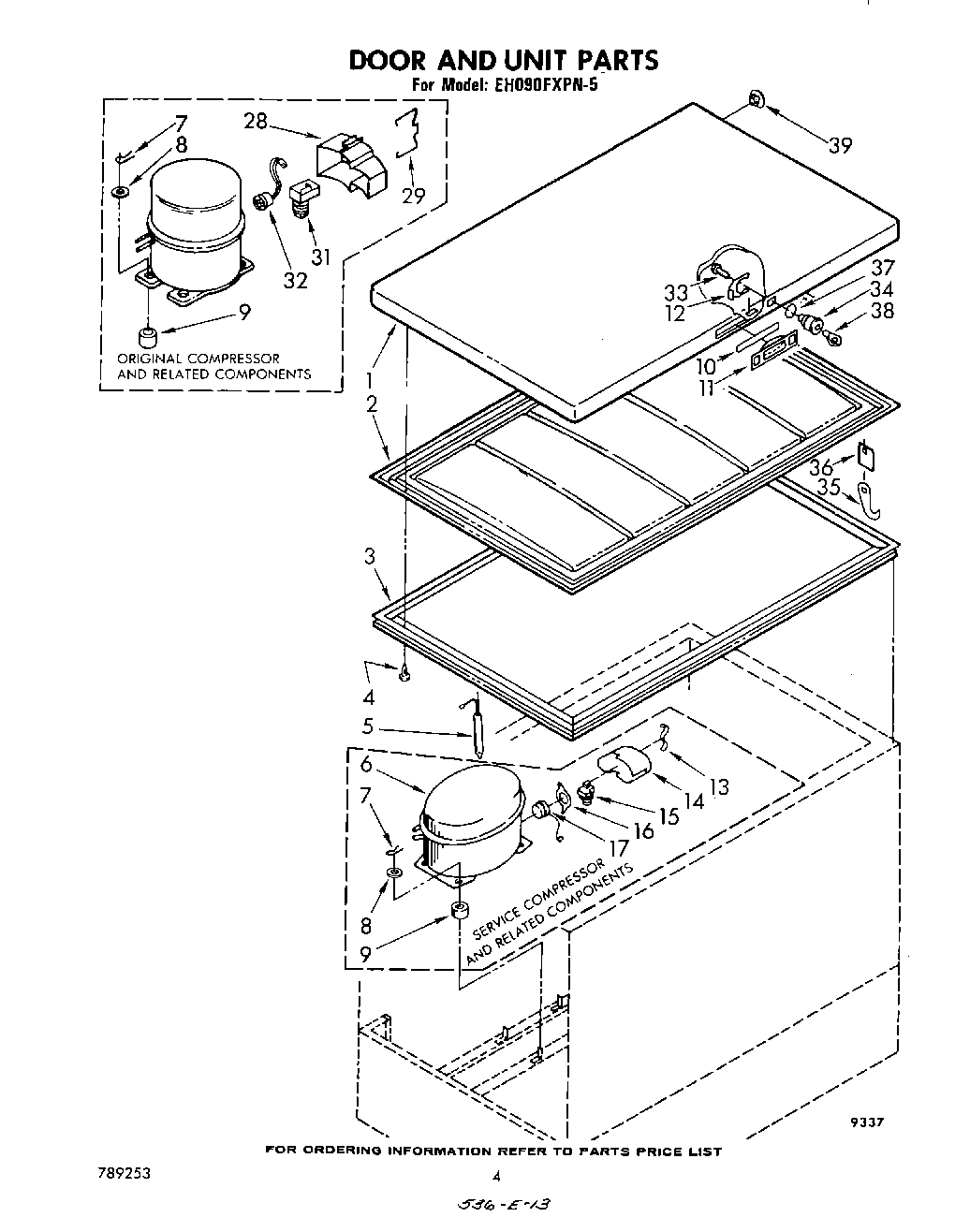

| 1 | Door |
| 2 | Panel |
| 3 | WP730643 Whirlpool Refrigerator Door Gasket |
| 4 | Clip (44) |
| 5 | Drier |
| 6 | Compressor (Includes Items 32, 33, 34, 35 & 36) (Also Order 876765 Tube Kit) |
| 7 | Clip (4) |
| 8 | Washer |
| 9 | 876811 Whirlpool Grommet |
| 10 | Gasket, Handle |
| 11 | Handle, Snap-In |
| 12 | Clip, Lock |
| 13 | Cover, Spring |
| 14 | Cover, Terminal |
| 15 | Relay |
| 16 | Spring, Overload |
| 17 | overload |
| 28 | Cover (Used W/ Original Compressor) |
| 29 | Clamp (Used W/Original Compressor) |
| 31 | Relay (W/Original Compressor) |
| 32 | Overload (W/Original Compressor) |
| 33 | Screw |
| 34 | Lock |
| 35 | Hook, Lock |
| 36 | Shroud, Lock |
| 37 | ``O`` Ring |
| 38 | WP842177 Whirlpool Refrigerator Door Key |
| 39 | Hole Plug (2) (Almond) |
