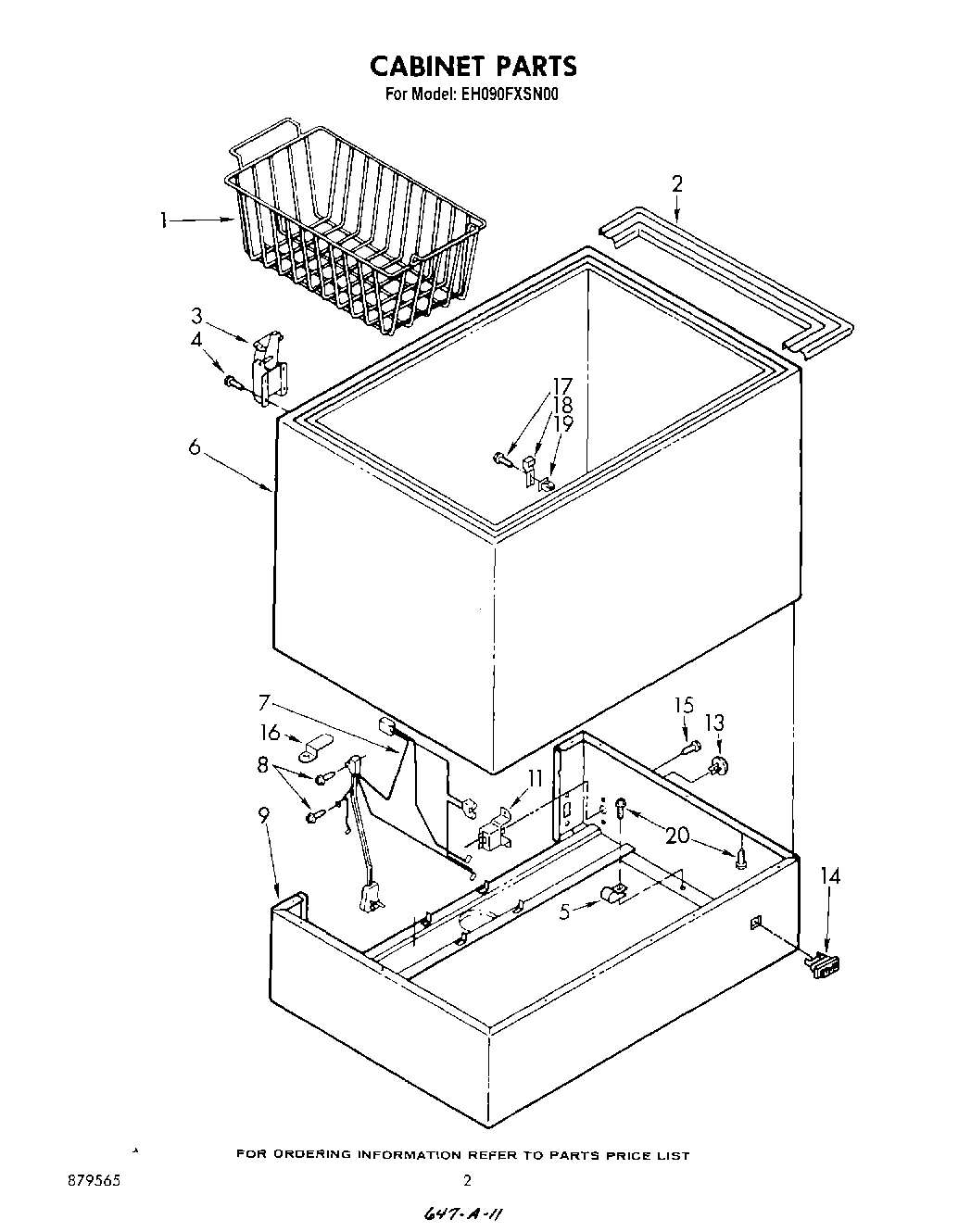

| 1 | Basket |
| 2 | Collar Breaker |
| 3 | Hinge |
| 4 | Screw |
| 5 | Clamp, Wire |
| 6 | Cabinet (Not A Serviceable Part) |
| 7 | Harness, Wiring |
| 8 | Screw |
| 9 | Base |
| 11 | Control |
| 13 | Knob, Control |
| 14 | Light, Indicator |
| 15 | Screw |
| 16 | Clip, Cord Plug |
| 17 | Screw, No.8-32 x 1/2 |
| 18 | Strike, Lock |
| 19 | Grommet |
| 20 | VALVE, ACCESS (1/2``) |
| 20 | 350942 Whirlpool Spray Paint |
| 20 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 20 | W11624204 Whirlpool Screw |
| 20 | VALVE, ACCESS (5/8``) |
| 20 | Almond (Uncut) |
| 20 | WP72107 Whirlpool Touchup |
| 20 | 799344 Whirlpool Refrigerator Paint |
| 20 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 20 | 350956 Whirlpool Spray Assembly |
| 20 | 833938 Whirlpool Refrigerator Terminal |
| 20 | WP503695 Whirlpool Refrigerator Sealer |
| 20 | WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive |
| 20 | WP978025 Whirlpool Refrigerator Valve |
| 20 | Leveler (Thinner) (2oz.) |
| 20 | WPL 799351 |
| 20 | 978030 Whirlpool Refrigerator Valve |
| 20 | 978027 Whirlpool Refrigerator Primary Valve |
| 20 | Kit, Insulation (Door Only) |
| 20 | WP505587 Whirlpool Refrigerator Sealer |
| 20 | 978026 Whirlpool Refrigerator Primary Valve |
| 20 | 350930 Whirlpool White Spray Paint |
