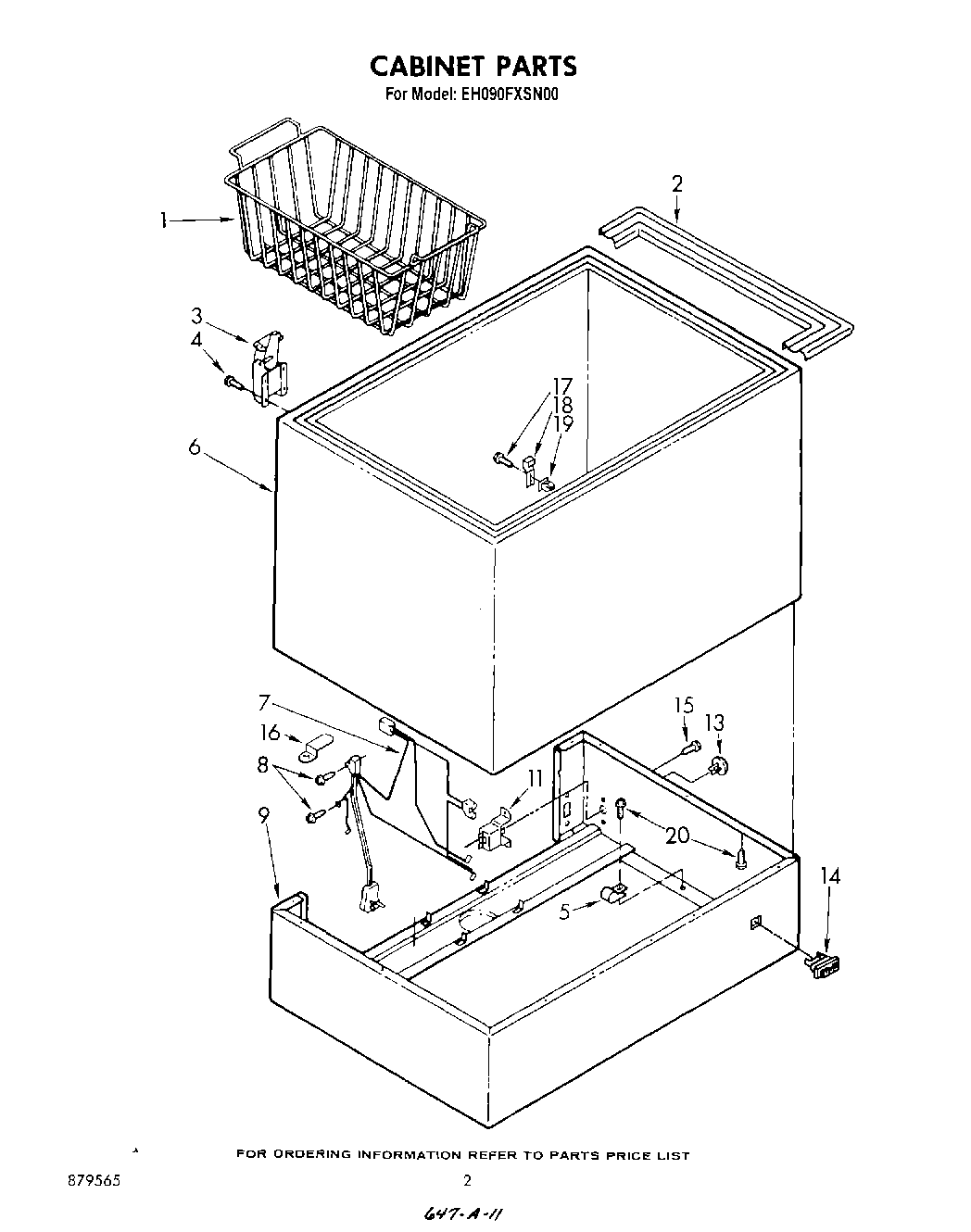

EH090FXSW00 02 – SECTION

Products

Position	Product
1	Basket
2	Collar Breaker
3	Hinge
4	Screw
5	Clamp, Wire
6	Cabinet (Not A Serviceable Part)
7	Harness, Wiring
8	Screw
9	Base
11	Control
13	Knob, Control
14	Light, Indicator
15	Screw
16	Clip, Cord Plug
17	Screw, No.8-32 x 1/2
18	Strike, Lock
19	Grommet
20	VALVE, ACCESS (1/2“)
20	350942 Whirlpool Spray Paint
20	212643 Whirlpool Refrigerator Permagum Sealer
20	W11624204 Whirlpool Screw
20	VALVE, ACCESS (5/8“)
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	72017 Whirlpool Appliance Touch-Up Paint White
20	350956 Whirlpool Spray Assembly
20	833938 Whirlpool Refrigerator Terminal
20	WP503695 Whirlpool Refrigerator Sealer
20	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
20	WP978025 Whirlpool Refrigerator Valve
20	Leveler (Thinner) (2oz.)
20	WPL 799351
20	978030 Whirlpool Refrigerator Valve
20	978027 Whirlpool Refrigerator Primary Valve
20	Kit, Insulation (Door Only)
20	WP505587 Whirlpool Refrigerator Sealer
20	978026 Whirlpool Refrigerator Primary Valve
20	350930 Whirlpool White Spray Paint
