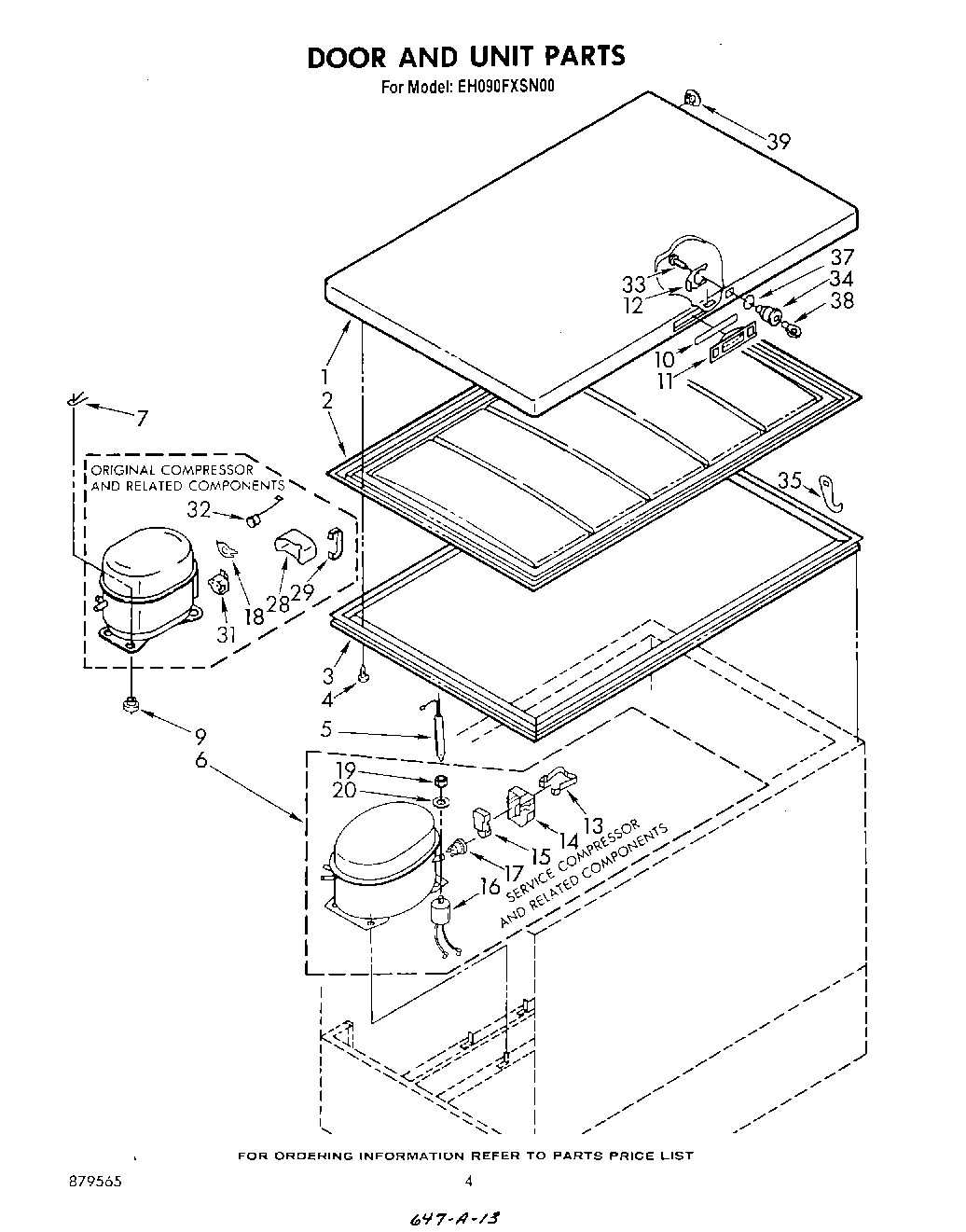

EH090FXSW00 03 – SECTION

Products

Position	Product
1	Door
2	Panel
3	WP730643 Whirlpool Refrigerator Door Gasket
4	Clip (44)
5	Drier
6	Compressor (Includes Items 32, 33, 34, 35, 36, 43, & 44)
7	Clip (4)
9	876811 Whirlpool Grommet
10	Gasket, Handle
11	Handle
12	Clip, Spring
13	Strap
14	Cover, Terminal
15	Relay
16	Capacitor
17	Overload
18	Overload, Spring (Used W/Original Compressor)
19	Nut
20	Washer
28	Cover, Overload & Relay (W/Original Compressor)
29	Clamp, Cover (W/Original Compressor)
31	WP2262181 Whirlpool Refrigerator Start Relay
32	Overload (Used W/Original Compressor)
33	Screw
34	Lock
35	Hook, Lock
37	“O“ Ring
38	WP842177 Whirlpool Refrigerator Door Key
39	Hole Plug (2) (Almond)
