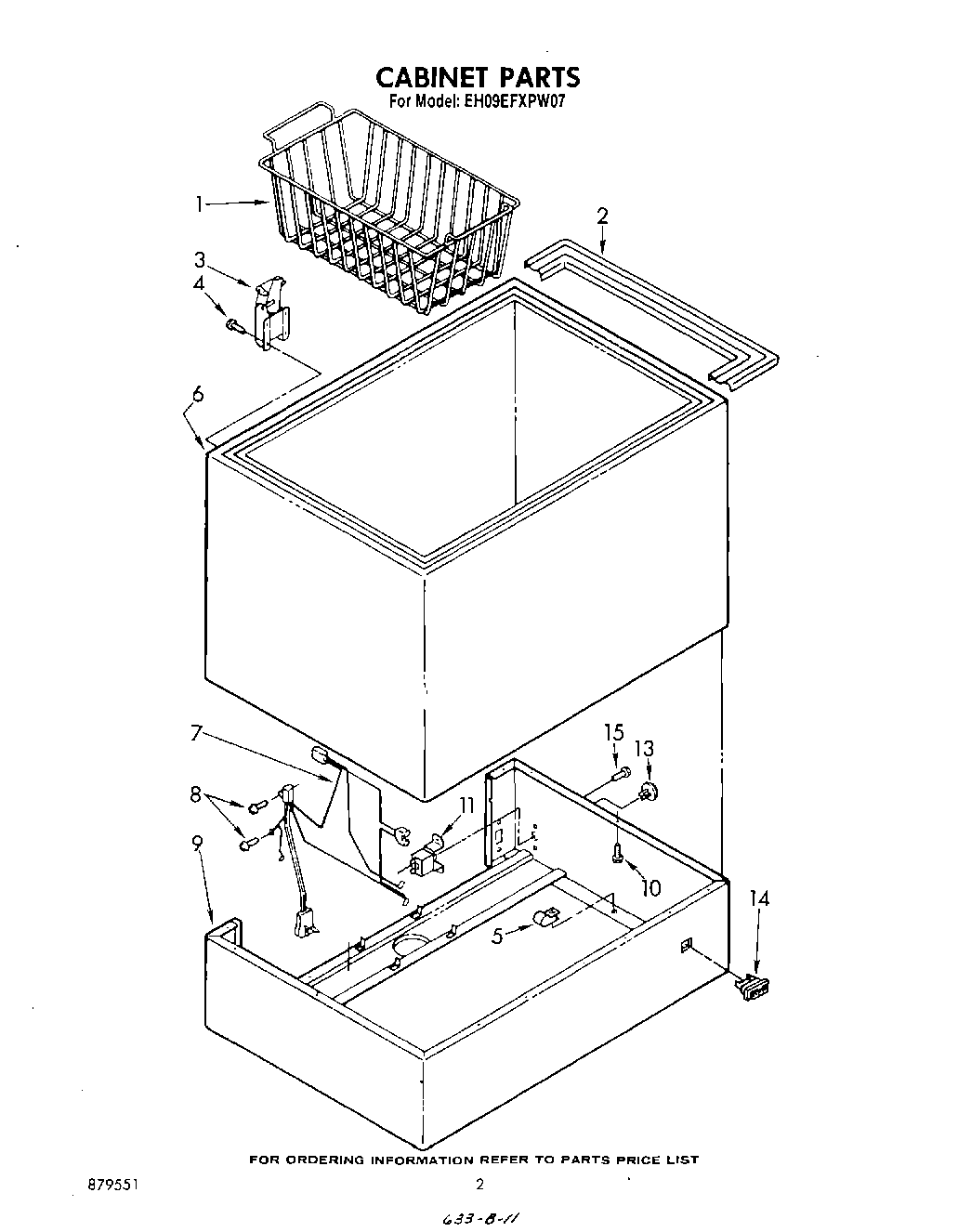

EH09EFXPW07 02 – SECTION

Products

Position	Product
	WPL LIT656493
	List, Parts
	Energy Guide
	Tech Sheet
	WPL LIT730047
1	Basket
2	Collar Breaker
3	Hinge
4	Screw (6)
5	Clamp, Wire
6	Cabinet (Not A Serviceable Part)
7	Harness, Wiring
8	Screw
9	Base
10	W11624204 Whirlpool Screw
11	Control
13	Knob, Control
14	Light, Indicator
15	Kit, Insulation (Door Only)
15	Screw
15	Leveler (Thinner) (2oz.)
15	350956 Whirlpool Spray Assembly
15	72017 Whirlpool Appliance Touch-Up Paint White
15	799344 Whirlpool Refrigerator Paint
15	WP72107 Whirlpool Touchup
15	Almond (Uncut)
15	VALVE, ACCESS (5/8“)
15	212643 Whirlpool Refrigerator Permagum Sealer
15	350942 Whirlpool Spray Paint
15	833938 Whirlpool Refrigerator Terminal
15	WP503695 Whirlpool Refrigerator Sealer
15	978026 Whirlpool Refrigerator Primary Valve
15	WP505587 Whirlpool Refrigerator Sealer
15	978027 Whirlpool Refrigerator Primary Valve
15	978030 Whirlpool Refrigerator Valve
15	WP978025 Whirlpool Refrigerator Valve
15	VALVE, ACCESS (1/2“)
15	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
15	350930 Whirlpool White Spray Paint
