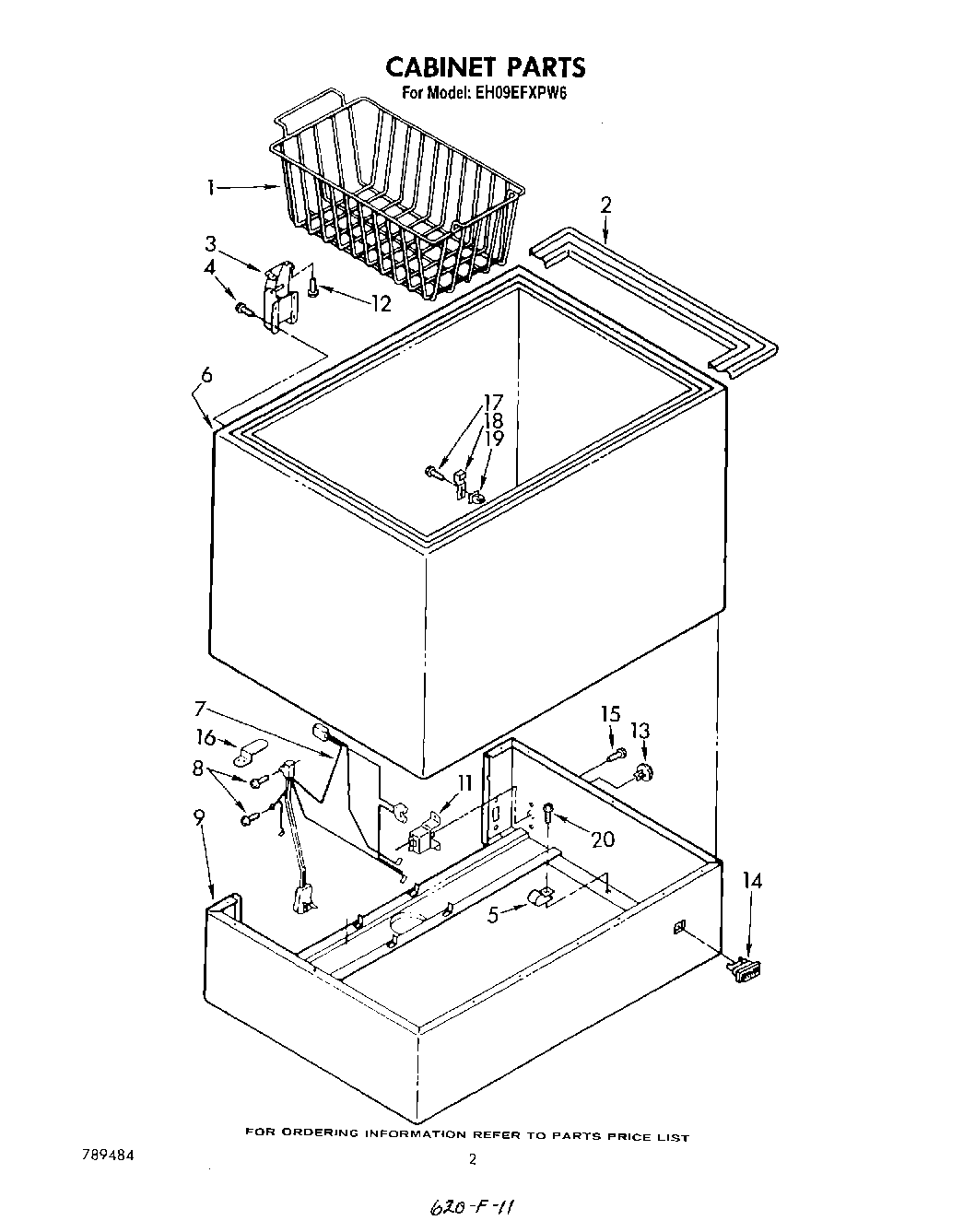

EH09EFXPW6 02 – SECTION

Products

Position	Product
	List, Parts
	WPL LIT656493
	WPL LIT730081
	WPL LIT728839
	WPL LIT730047
1	Basket
2	Collar Breaker
3	Hinge
4	Screw (6)
5	Clamp, Wire
6	Cabinet (Not A Serviceable Part)
7	Harness, Wiring
8	Screw
9	Base
11	Control
13	Knob, Control
14	Light, Indicator
15	Screw
16	Clip, Cord Plug
17	WP487353 Whirlpool Refrigerator Screw
18	Strike, Lock
19	Grommet
20	350942 Whirlpool Spray Paint
20	212643 Whirlpool Refrigerator Permagum Sealer
20	VALVE, ACCESS (5/8“)
20	Screw (12)
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	72017 Whirlpool Appliance Touch-Up Paint White
20	350956 Whirlpool Spray Assembly
20	833938 Whirlpool Refrigerator Terminal
20	WP503695 Whirlpool Refrigerator Sealer
20	Leveler (Thinner) (2oz.)
20	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
20	WP978025 Whirlpool Refrigerator Valve
20	978030 Whirlpool Refrigerator Valve
20	VALVE, ACCESS (1/2“)
20	Kit, Insulation (Door Only)
20	978027 Whirlpool Refrigerator Primary Valve
20	WP505587 Whirlpool Refrigerator Sealer
20	978026 Whirlpool Refrigerator Primary Valve
20	350930 Whirlpool White Spray Paint
