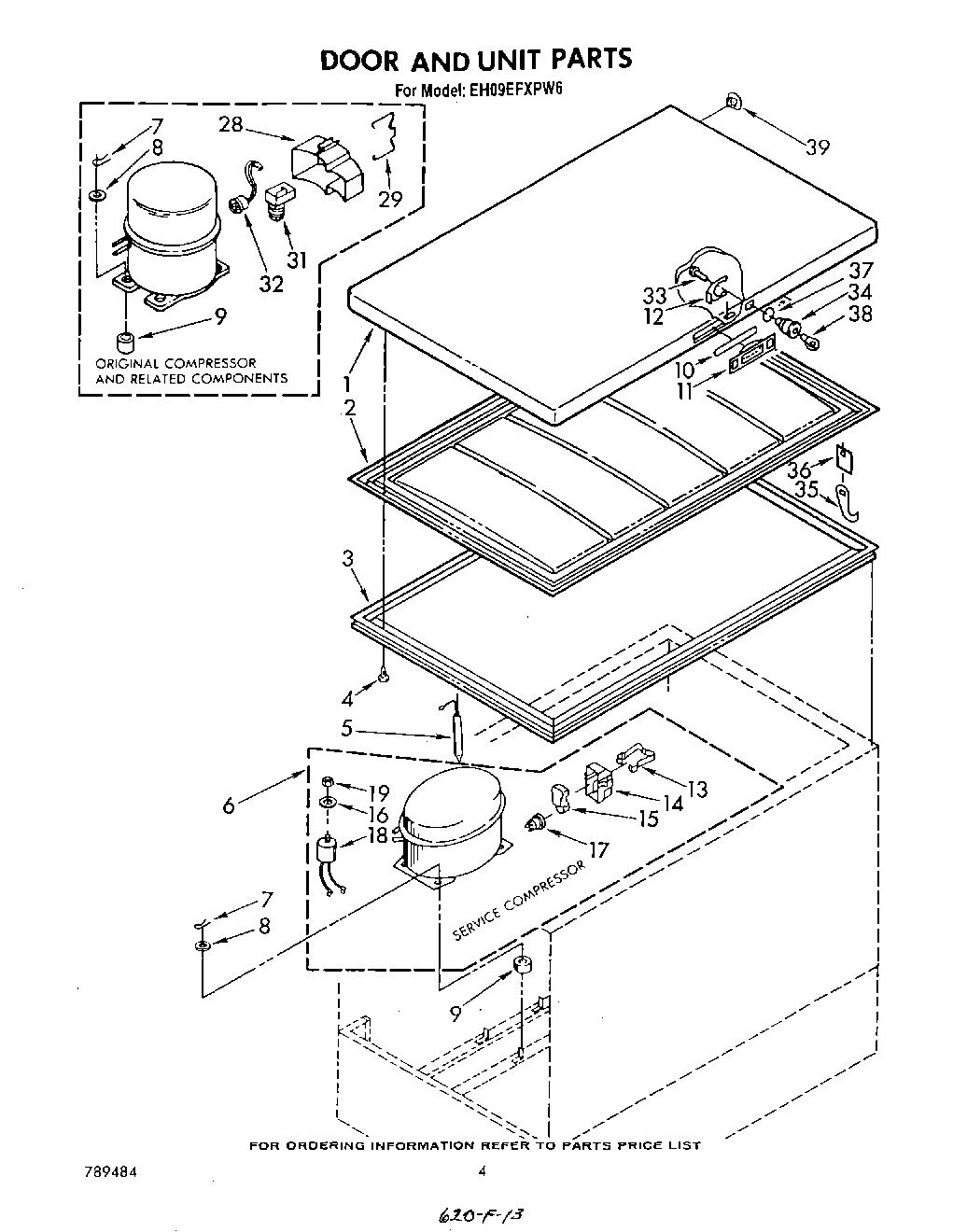

EH09EFXPW6 03 – SECTION

Products

Position	Product
1	Door
2	Panel
3	WP730643 Whirlpool Refrigerator Door Gasket
4	Clip (44)
5	Drier
6	Compressor (Includes Items 32, 33, 34, 35, 36, 43, & 44)
7	Clip (4)
8	Washer
9	876811 Whirlpool Grommet
10	Gasket, Handle
11	Handle, Snap-In
12	Clip, Spring
15	Relay
16	Washer
17	Overload
18	Capacitor
19	Nut
28	Cover, Terminal
29	Strap
32	Relay
33	Screw
34	Lock
35	Hook, Lock
36	Shroud, Lock
37	“O“ Ring
38	WP842177 Whirlpool Refrigerator Door Key
39	Hole Plug (2)
