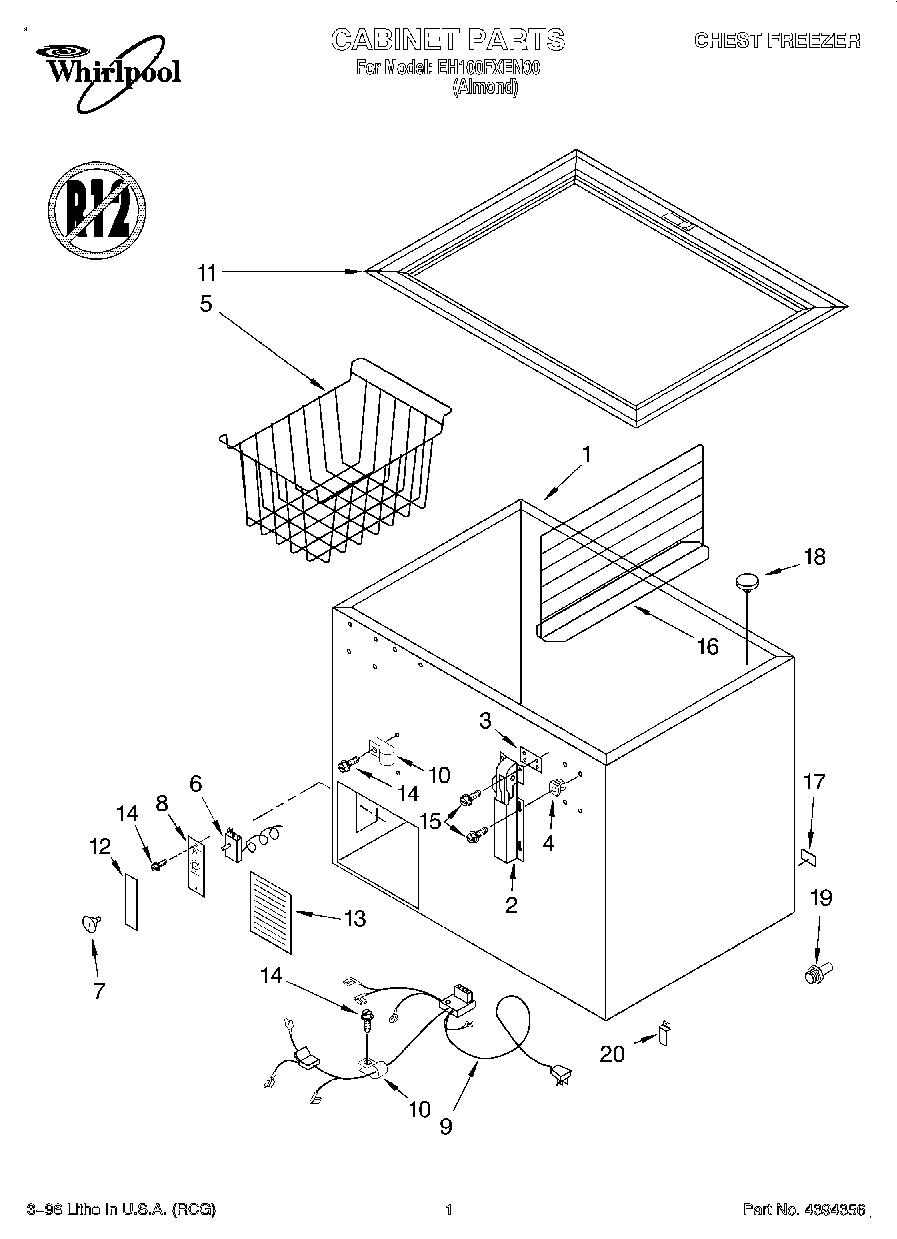

EH100FXEN00 01 – SECTION

Products

Position	Product
	Use & Care Guide
	Energy Label
1	Cabinet (Not A Serviceable Part)
2	Hinge Assembly
3	1-17548-006 Whirlpool Refrigerator Spacer
4	4356321 Whirlpool Refrigerator Grommet
5	8210434A Whirlpool Refrigerator Basket
6	Thermostat
7	Knob, Thermostat
8	Control Box
9	External, Wiring Harness
10	488946 Whirlpool Air Conditioner Clamp
11	2-35195-002 Whirlpool Refrigerator Hook
12	Insert, Control
13	Access Panel
14	3-24004-049 Whirlpool Screw
15	4356491 Whirlpool Refrigerator Screw
16	Divider (Optional)
17	Drain Plug
18	Drain, Plug
19	W11663505 Whirlpool Hose Adapter
20	WP72107 Whirlpool Touchup
20	Almond (Uncut)
20	Rivet Kit (60)
20	Clip
20	350956 Whirlpool Spray Assembly
