EH100FXGW05 01 – SECTION

EH100FXGW05 01 – SECTION

Written by

in

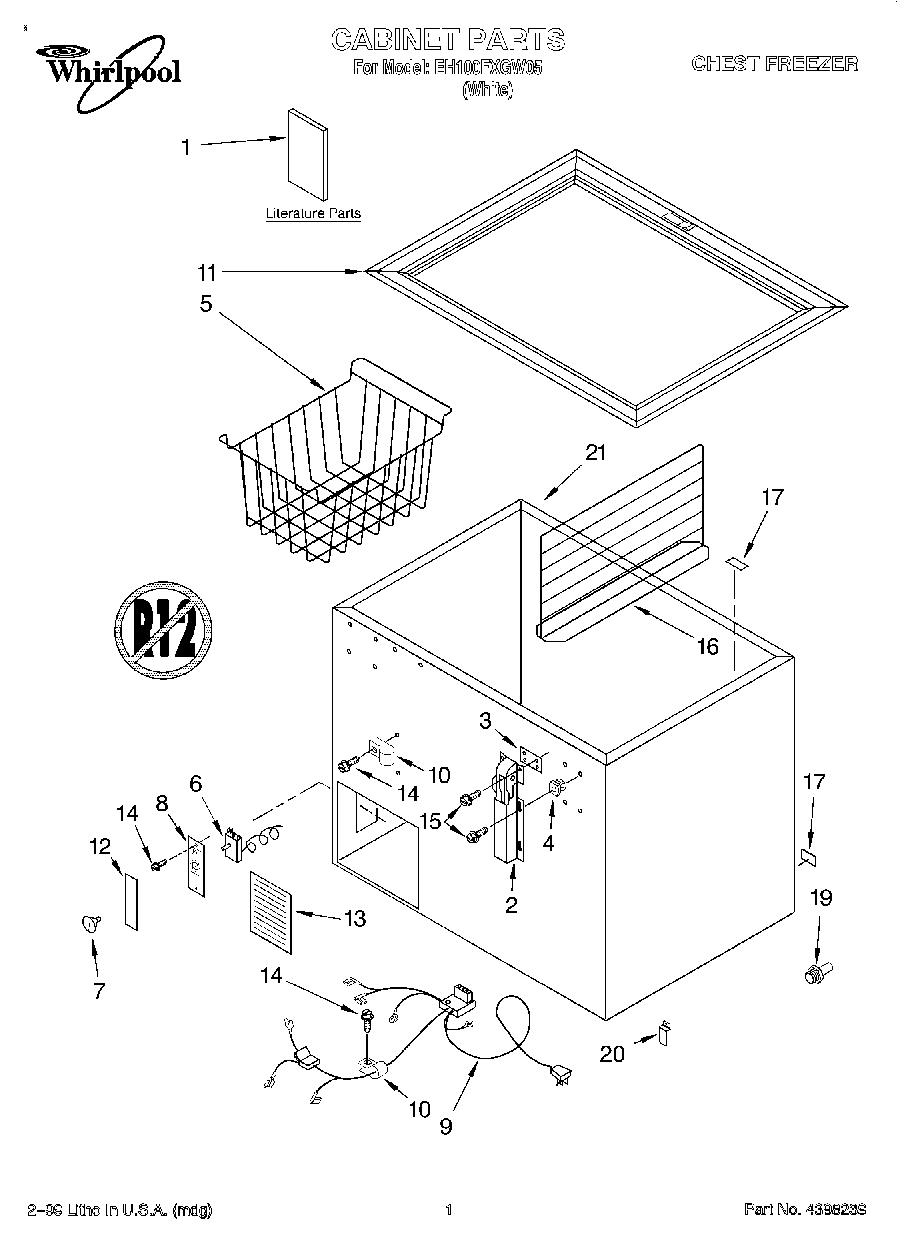

EH100FXGW05 01 – SECTION

Products

PositionProduct
1Energy Label
1Literature Parts (Owner`s Manual)
24356490 Whirlpool Refrigerator Door Hinge
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
58210434A Whirlpool Refrigerator Basket
6WP4-35940-001 Whirlpool Refrigerator Thermostat
7Knob, Thermostat
8W10682894 Whirlpool Refrigerator Control Box
9External, Wiring Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
12Insert, Control
13Access Panel
143-24004-049 Whirlpool Screw
154356491 Whirlpool Refrigerator Screw
16Divider (Optional)
17Drain, Cap
19W11663505 Whirlpool Hose Adapter
20Clip
21Clip, Gasket (Kit Of 60)
21Almond (Uncut)
21WP72107 Whirlpool Touchup
21Cabinet (Not A Serviceable Part)
21350956 Whirlpool Spray Assembly
