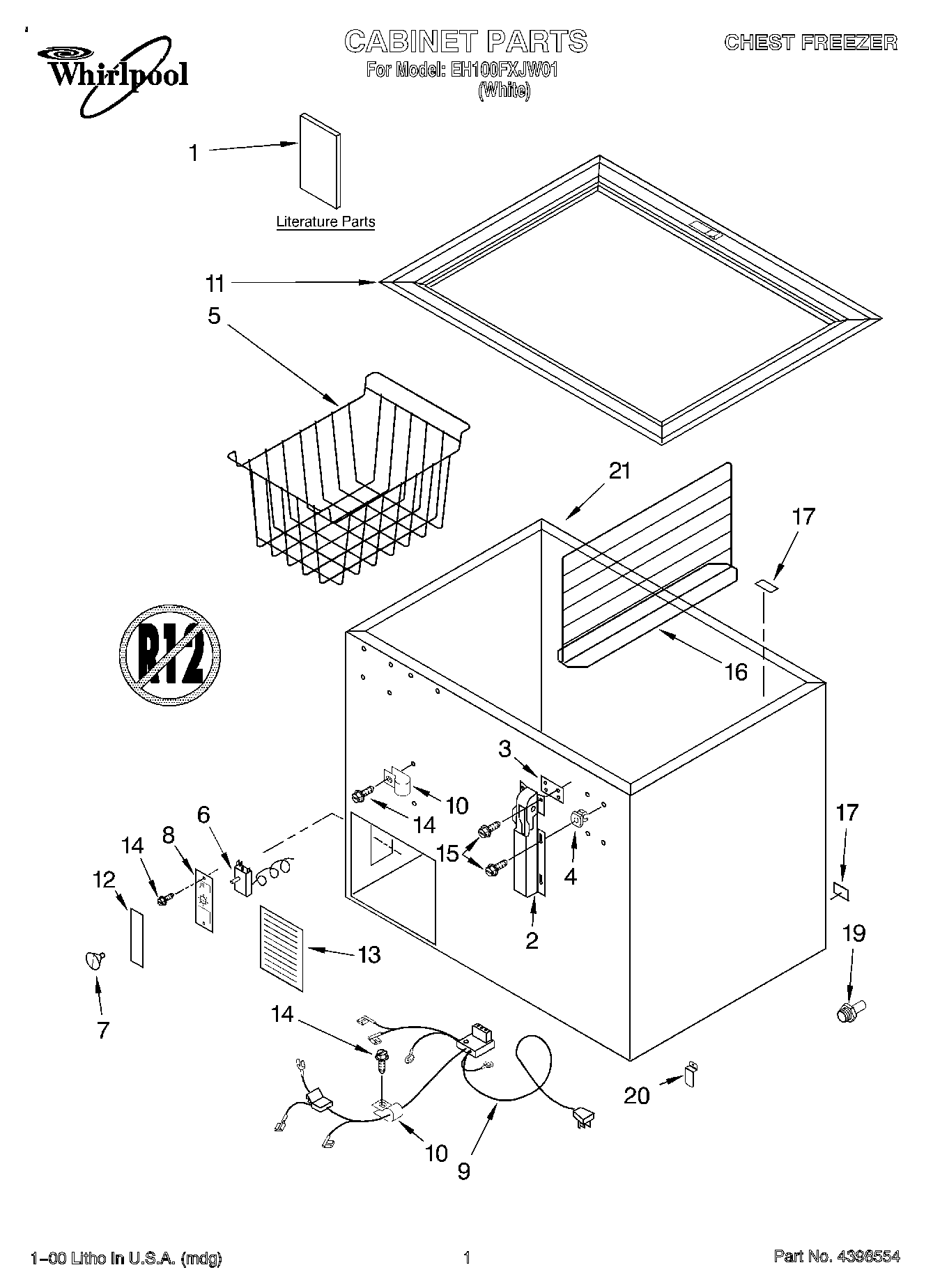

EH100FXJW01 01 – SECTION

EH100FXJW01 01 – SECTION

Written by

in

EH100FXJW01 01 – SECTION

Products

PositionProduct
1Literature Parts (Energy Guide)
1Literature Parts (Owner`s Manual)
2Hinge Assembly
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
5Wire Basket (Standard, Lower (2))
5Wire Basket (Large, Top)
6WP4-35940-001 Whirlpool Refrigerator Thermostat
7Knob, Thermostat
8W10682894 Whirlpool Refrigerator Control Box
94-35130-004 Whirlpool Refrigerator Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
12Insert, Control
13Access Panel
143-24004-049 Whirlpool Screw
154356491 Whirlpool Refrigerator Screw
16Divider (Optional)
17Drain, Cap
19W11663505 Whirlpool Hose Adapter
20Clip
21Clip, Gasket (Kit Of 60)
21350930 Whirlpool White Spray Paint
21799344 Whirlpool Refrigerator Paint
2172017 Whirlpool Appliance Touch-Up Paint White
21Cabinet (Not A Serviceable Part)
