EH100FXKQ00 03 – SECTION

EH100FXKQ00 03 – SECTION

Written by

in

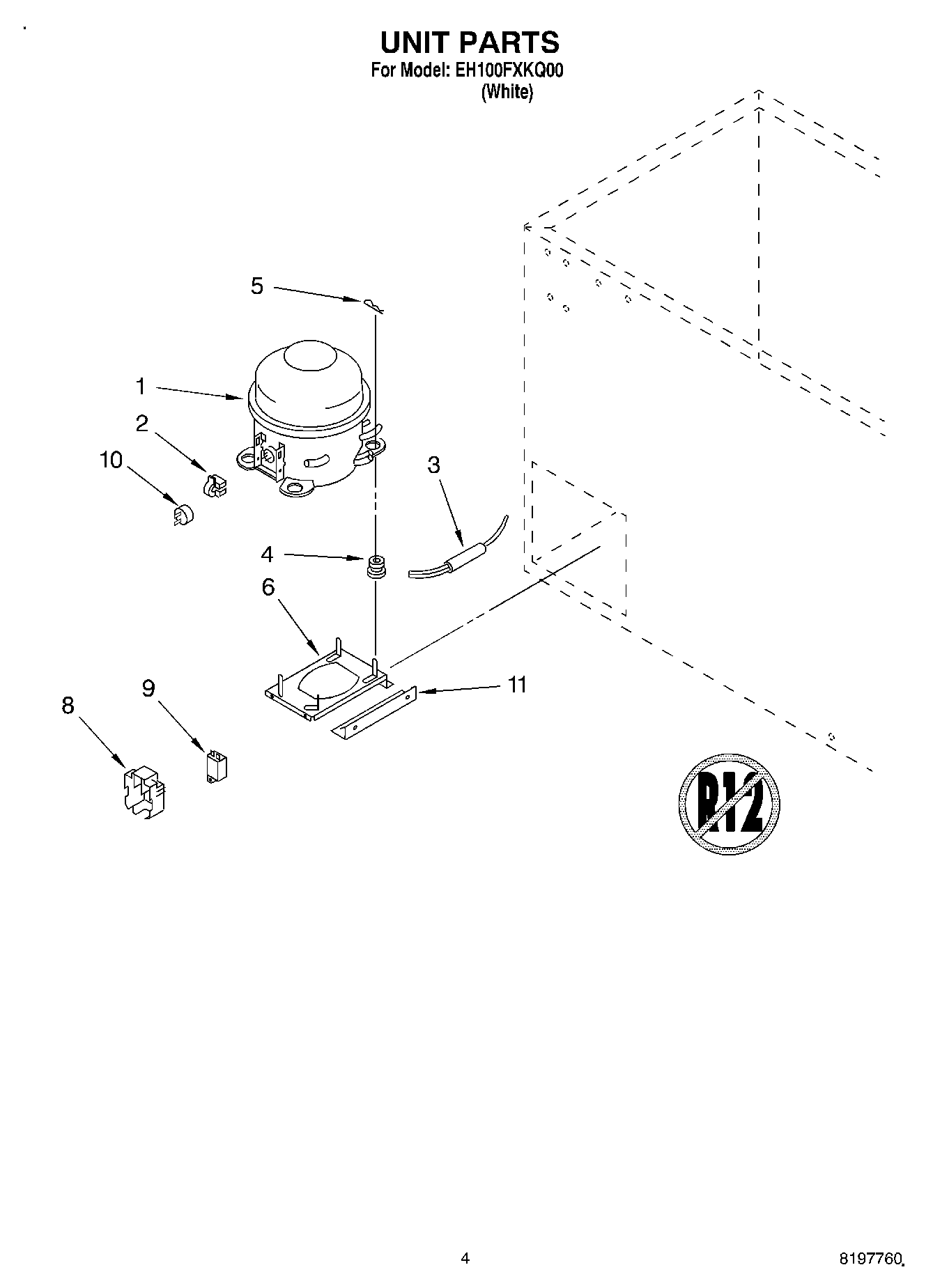

EH100FXKQ00 03 – SECTION

Products

PositionProduct
1W10237328 Whirlpool Refrigerator Compressor
2W11673287 Whirlpool Starter Relay
3W10843121 Whirlpool Refrigerator Tube
4Grommet, Mounting Compressor
5Clip, Hitch Pin
6Base, Compressor
8WP2162358 Whirlpool Refrigerator Terminal Cover
9WPW10662129 Whirlpool Refrigerator Run Capacitor
1061004883 Whirlpool Refrigerator Overload
113-81556-001 Whirlpool Brace
