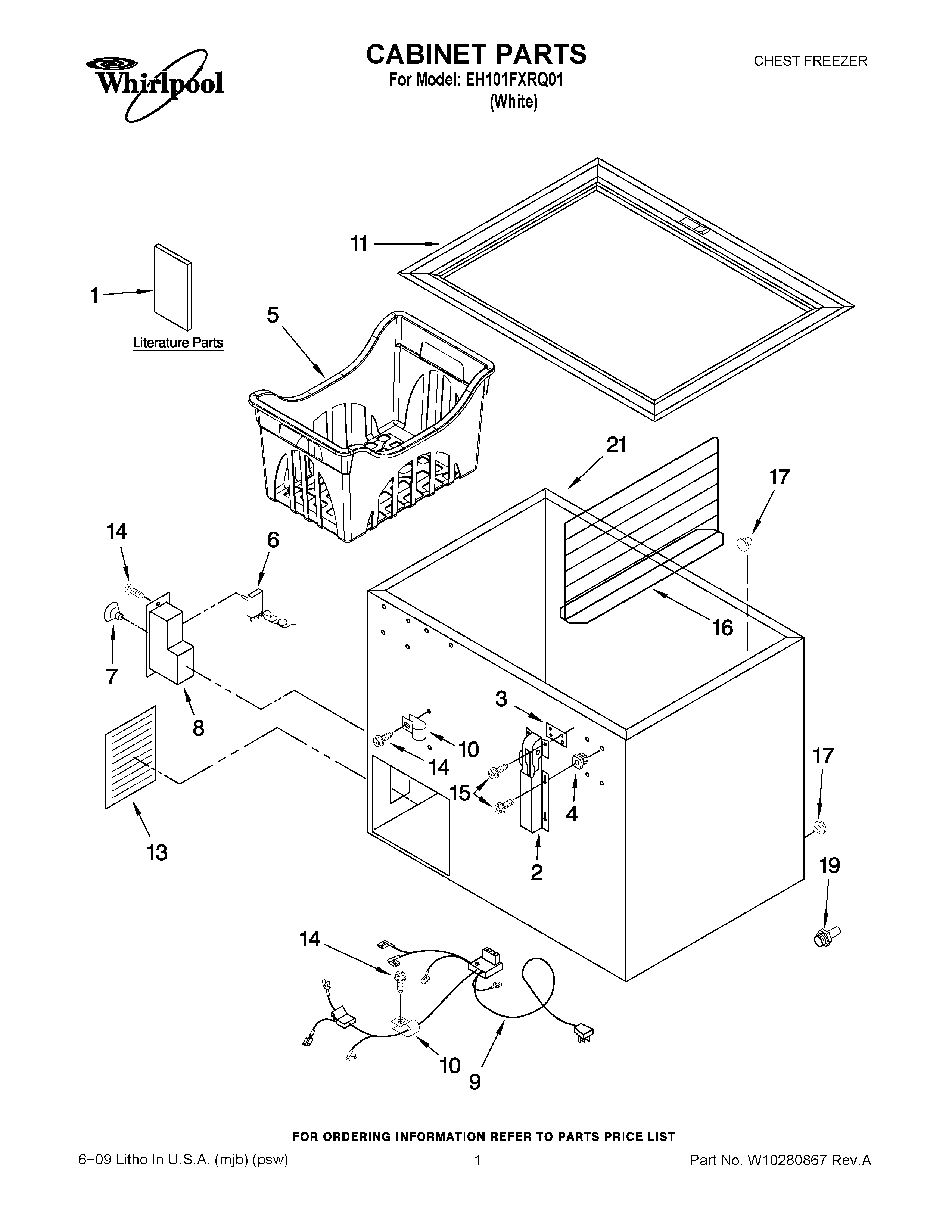

EH101FXRQ01 01 – CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE
1	Owners Manual
2	Hinge Assembly
3	1-17548-006 Whirlpool Refrigerator Spacer
4	4356321 Whirlpool Refrigerator Grommet
5	Basket (2)
6	WP4-35940-001 Whirlpool Refrigerator Thermostat
7	Thermostat, Knob
8	W10682894 Whirlpool Refrigerator Control Box
9	4-35130-004 Whirlpool Refrigerator Harness
10	488946 Whirlpool Air Conditioner Clamp
11	Breaker Strip
13	Access Panel
14	3-24004-049 Whirlpool Screw
15	4356491 Whirlpool Refrigerator Screw
16	Divider (Optional)
17	Drain, Cap
19	W11663505 Whirlpool Hose Adapter
21	CABINET (NOT A SERVICEABLE PART)
