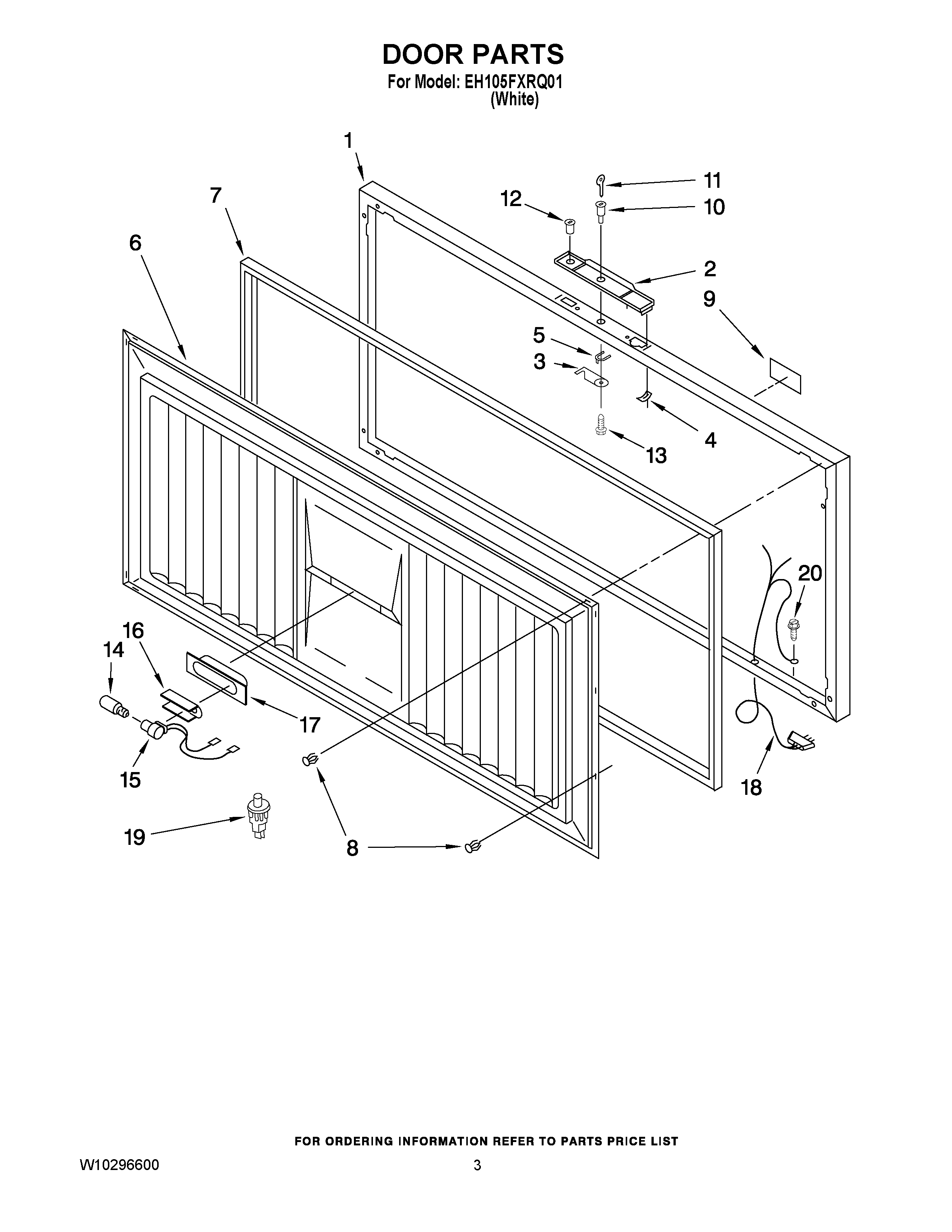

EH105FXRQ01 02 – DOOR PARTS

Products

Position	Product
1	EXTERIOR DOOR PANEL (INCLUDES INSULATION)
2	HANDLE
3	HOOK BOLT
4	3-24059-024 Whirlpool Refrigerator Handle Clip
5	Clip
6	INTERIOR DOOR PANEL
7	Gasket
8	Clip, Gasket (Kit Of 60)
9	WP2213265 Whirlpool Refrigerator Nameplate
10	3-35284-001 Whirlpool Refrigerator Door Lock
11	Key
12	LIGHT, INDICATOR
13	SCREW
14	W10873798 Whirlpool Refrigerator Light Bulb
15	Socket, Light
16	Shield, Heat
17	3-25693-001 Whirlpool Refrigerator Defrost Light
18	Harness, Wiring (Lid)
19	W10917237 Whirlpool Refrigerator Switch
20	WP488787 Whirlpool Refrigerator Screw
