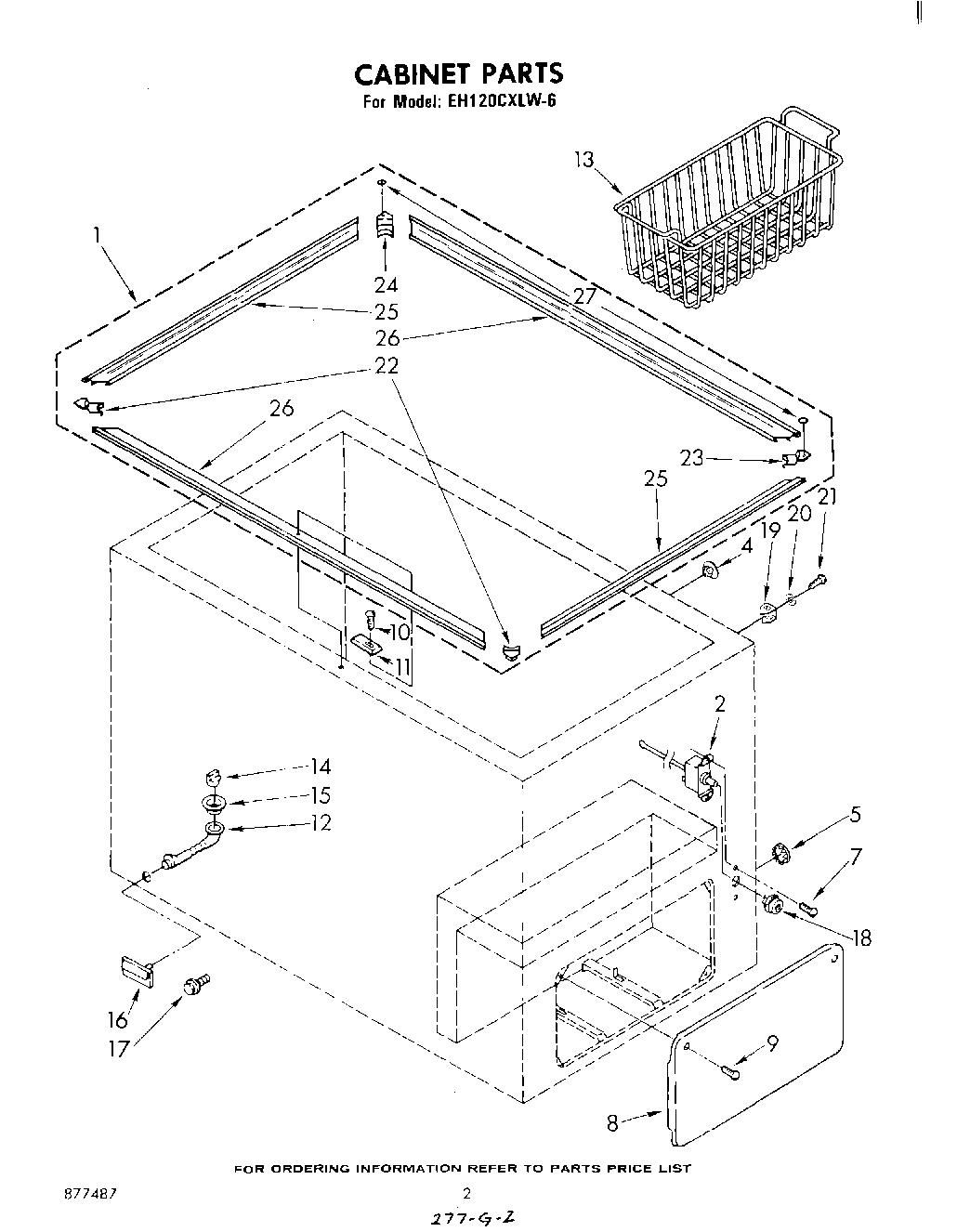

EH120CXLW6 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Leveler (Thinner) (2oz.)
	350942 Whirlpool Spray Paint
1	Collar Kit (Items 22, 23, 24, 25, 26 & 27 Are Included In Collar Kit)
2	Control, Cold
4	Plug Button
5	Plug, Button
7	Screw
8	Door
9	Screw
10	Screw
11	Box, Strike
12	Tube, Drain
13	Basket (2)
14	Plug, Drain
15	Ferrule, Drain
16	Cover, Drain
17	Adapter, Hose
18	Knob, Control
19	Rod Holder Assembly
20	WP120393 Whirlpool Washer Assembly
21	Screw
22	Corner, Front (2)
23	Corner (Right Rear)
24	Corner (Left Rear)
25	Collar, End (2)
26	Collar (2) (Front & Rear)
27	72017 Whirlpool Appliance Touch-Up Paint White
27	Use & Care Guide
27	Tech Sheet
27	VALVE, ACCESS (5/8“)
27	List, Parts
27	799344 Whirlpool Refrigerator Paint
27	212643 Whirlpool Refrigerator Permagum Sealer
27	WP503695 Whirlpool Refrigerator Sealer
27	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
27	Kit, Insulation (Door Only)
27	VALVE, ACCESS (1/2“)
27	WP978025 Whirlpool Refrigerator Valve
27	978030 Whirlpool Refrigerator Valve
27	Grommet (2)
27	978027 Whirlpool Refrigerator Primary Valve
27	Book, How To Freeze
27	978026 Whirlpool Refrigerator Primary Valve
27	WPL 799351
27	Energy Guide
