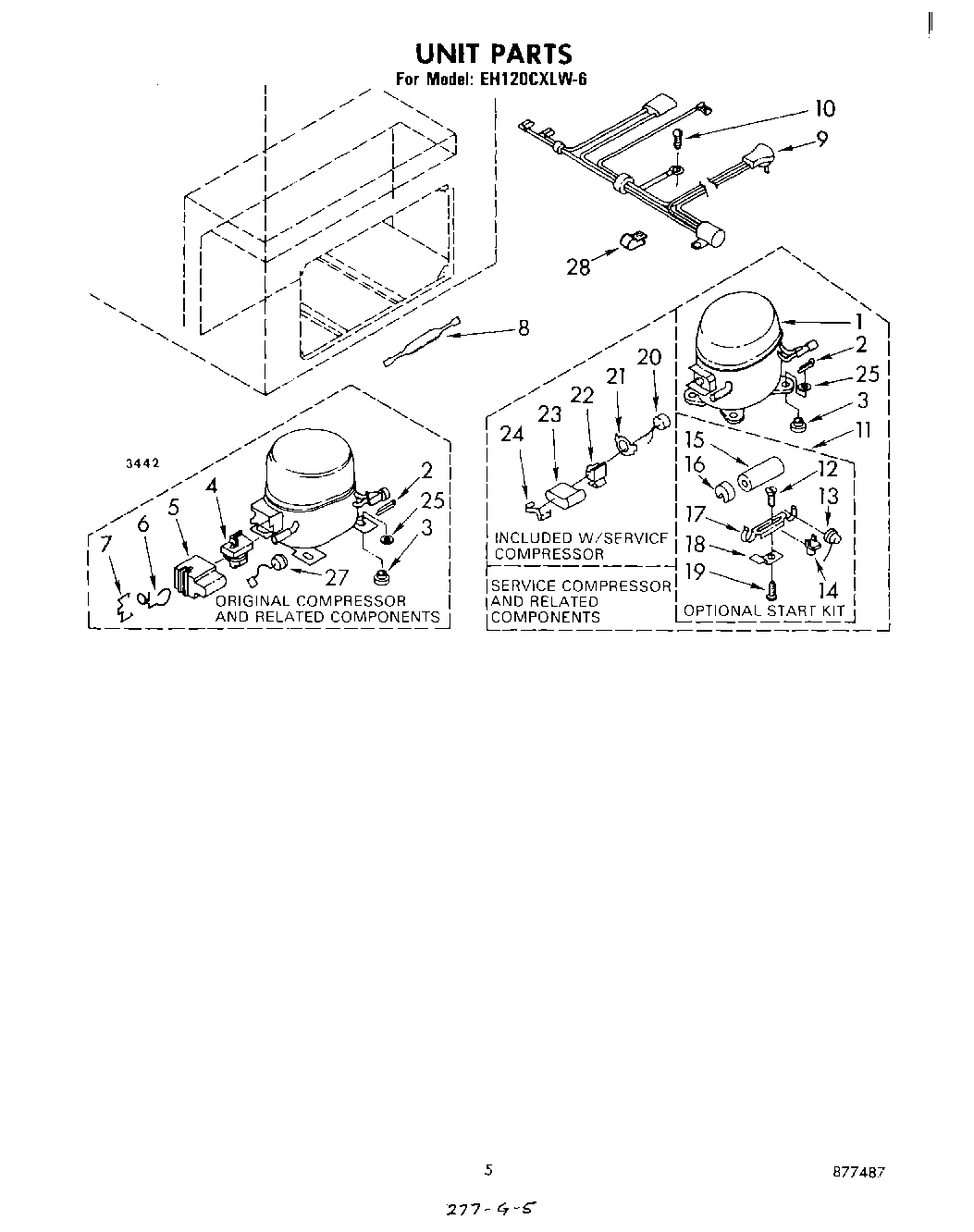

EH120CXLW6 04 – SECTION

Products

PositionProduct
1Compressor (Service Replacement) (Items No.20, 21, 22, 23 & 24 Included With Service Compressor) (Al
2Clip, Compressor Mounting (4)
3876811 Whirlpool Grommet
4Relay (W/Original Compressor)
5Cover (Used W/ Original Compressor)
6Clip (Used W/Original Compressor)
7Clamp (Used W/Original Compressor)
8W10843121 Whirlpool Refrigerator Tube
9Harness, Wiring
10Screw
11Start Kit
12Screw (2) (Used On Start Kit 482278)
13Overload (Used On Start Kit 482278)
14Relay (Used On Start Kit 482278)
15WP482156 Whirlpool Refrigerator Capacitor
16Cap, Capacitor (Used On Start Kit 482278)
17Support, Bracket (Used On Start Kit 482278)
18Bracket, Mounting (Used On Start Kit 482278)
19Screw (Used On Start Kit 482278)
20Overload (Used On Service Compressor 702215)
21Spring
22Relay (Used On Service Compressor 702215)
23Case, Relay
24Cover Strap
25Washer
27Overload (W/Original Compressor)
28Clip, Cord Plug
