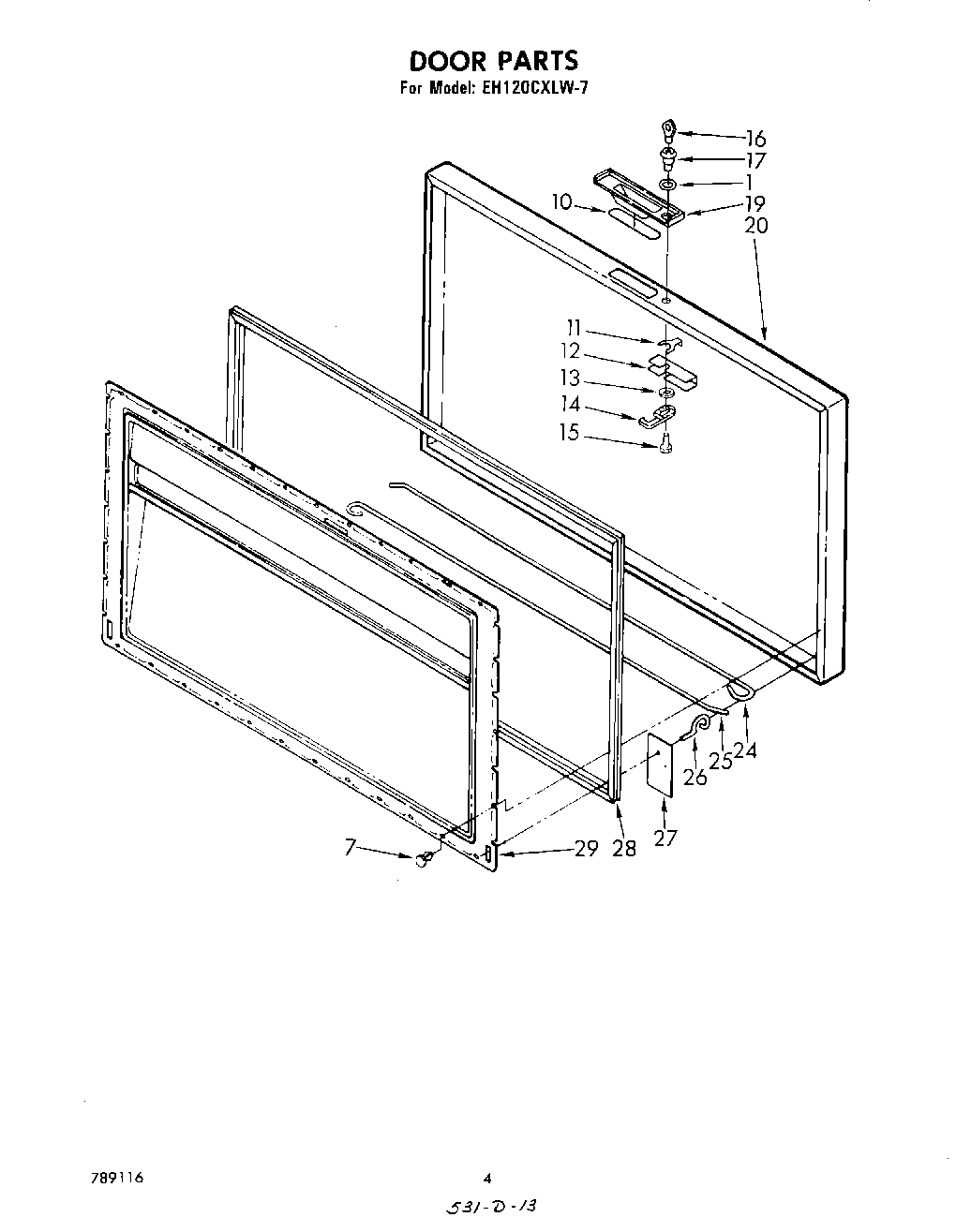

EH120CXLW7 03 – SECTION

Written by

Products

Position	Product
1	“O“ Ring
7	Clip (36)
10	Gasket, Handle
11	Clip, Lock
12	Shroud, Lock
13	Plate, Bolt
14	Hook, Lock
15	Screw
16	WP842177 Whirlpool Refrigerator Door Key
17	Lock
19	Handle, Door
20	Panel, Door Exterior
24	Bar, L.H. Torsion
25	Bar, R.H. Torsion
26	Hinge, R.H.
26	Hinge, L.H.
27	Cover, Hinge Rod (2)
28	Gasket, Door
29	Panel, Door Interior
