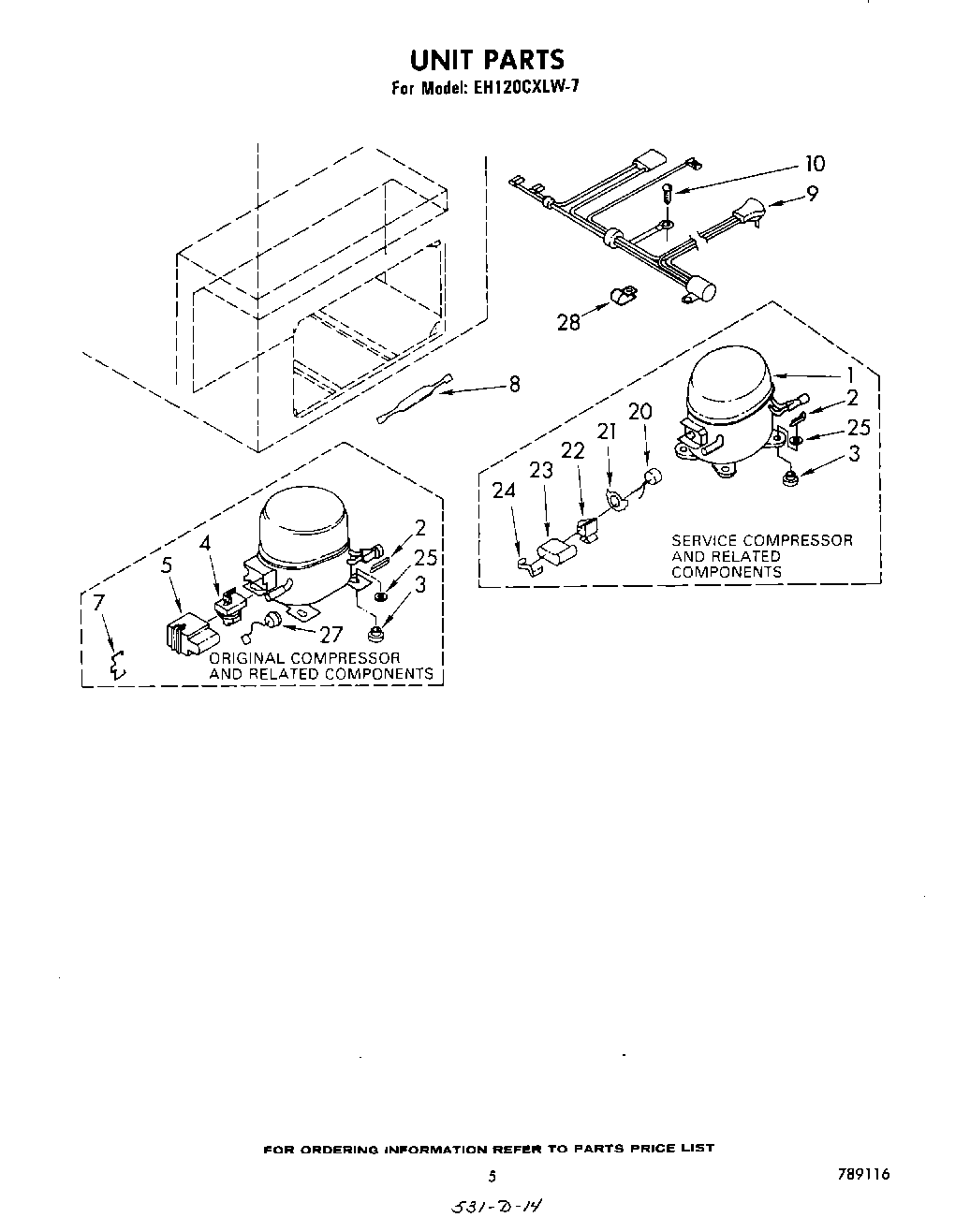

EH120CXLW7 04 – SECTION

Products

Position	Product
1	Compressor (Includes Items 32, 33, 34, 35 & 36) (Also Order 876765 Tube Kit)
2	Clip, Compressor Mounting (4)
3	876811 Whirlpool Grommet
4	Relay (W/Original Compressor)
5	Cover (Used W/ Original Compressor)
7	Clamp (Used W/Original Compressor)
8	W10843121 Whirlpool Refrigerator Tube
9	Harness, Wiring
10	Screw
20	overload
21	Spring, Overload
22	Relay
23	Cover, Terminal
24	Cover, Spring
25	Washer
27	Overload (W/Original Compressor)
28	Clip, Cord Plug
