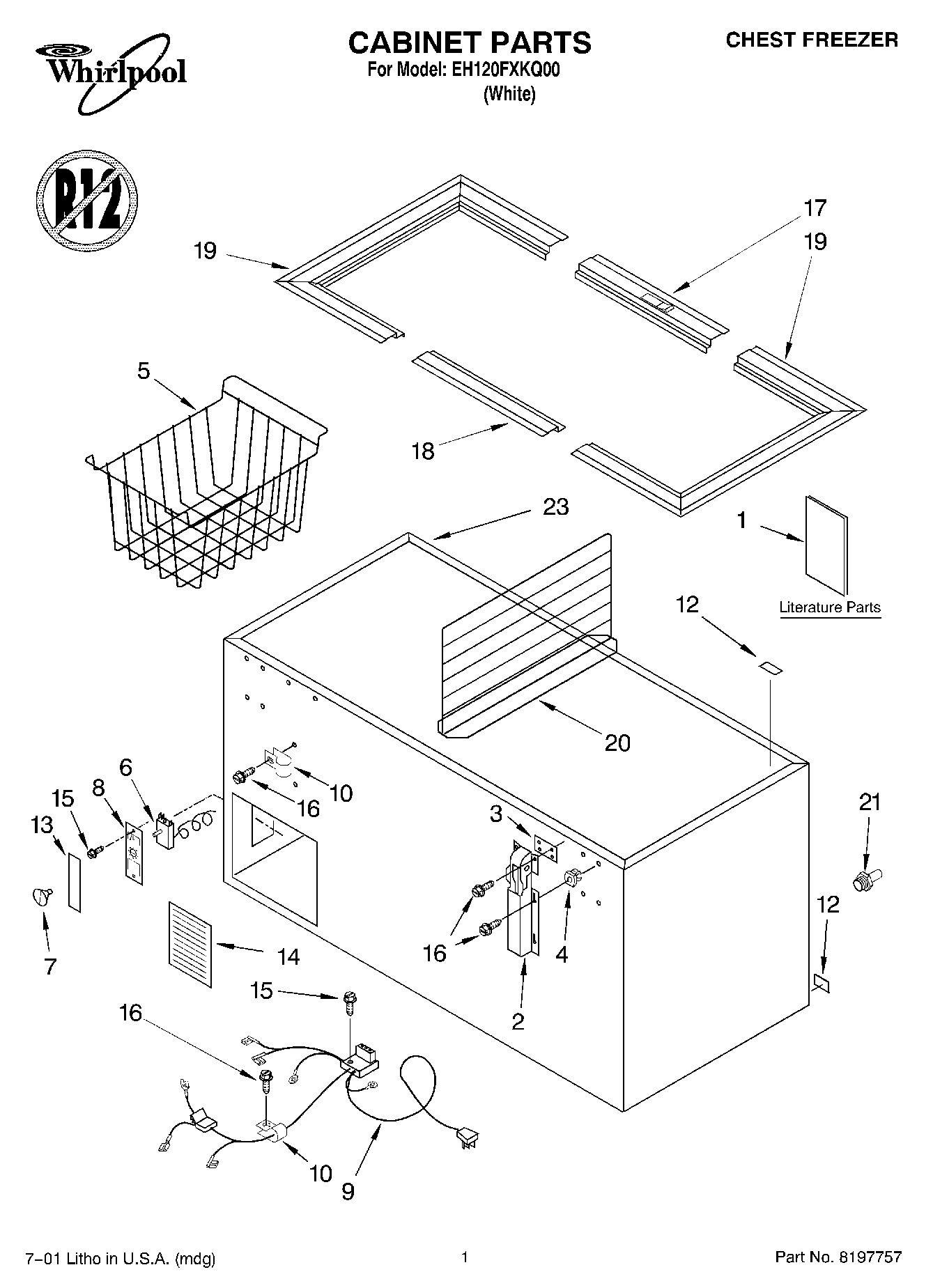

EH120FXKQ00 01 – SECTION

Products

Position	Product
1	Literature Parts (Owner`s Manual)
1	Literature Parts (Energy Guide)
2	Hinge, Assembly
3	1-17548-006 Whirlpool Refrigerator Spacer
4	4356321 Whirlpool Refrigerator Grommet
5	Wire Basket (Large, Top)
6	WP4-35940-001 Whirlpool Refrigerator Thermostat
7	Thermostat, Knob
8	W10682894 Whirlpool Refrigerator Control Box
9	4-35130-004 Whirlpool Refrigerator Harness
10	488946 Whirlpool Air Conditioner Clamp
12	Drain, Cap
13	Insert, Control
14	Access Panel
15	3-24004-049 Whirlpool Screw
16	4356491 Whirlpool Refrigerator Screw
17	4-35011-004 Whirlpool Refrigerator Breaker Trim
18	4-35010-004 Whirlpool Breaker Trim
19	End, Breaker Strip (2)
20	Divider (Optional)
21	W11663505 Whirlpool Hose Adapter
23	Rivet Kit (60)
23	350930 Whirlpool White Spray Paint
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	Cabinet (Not A Serviceable Part)
