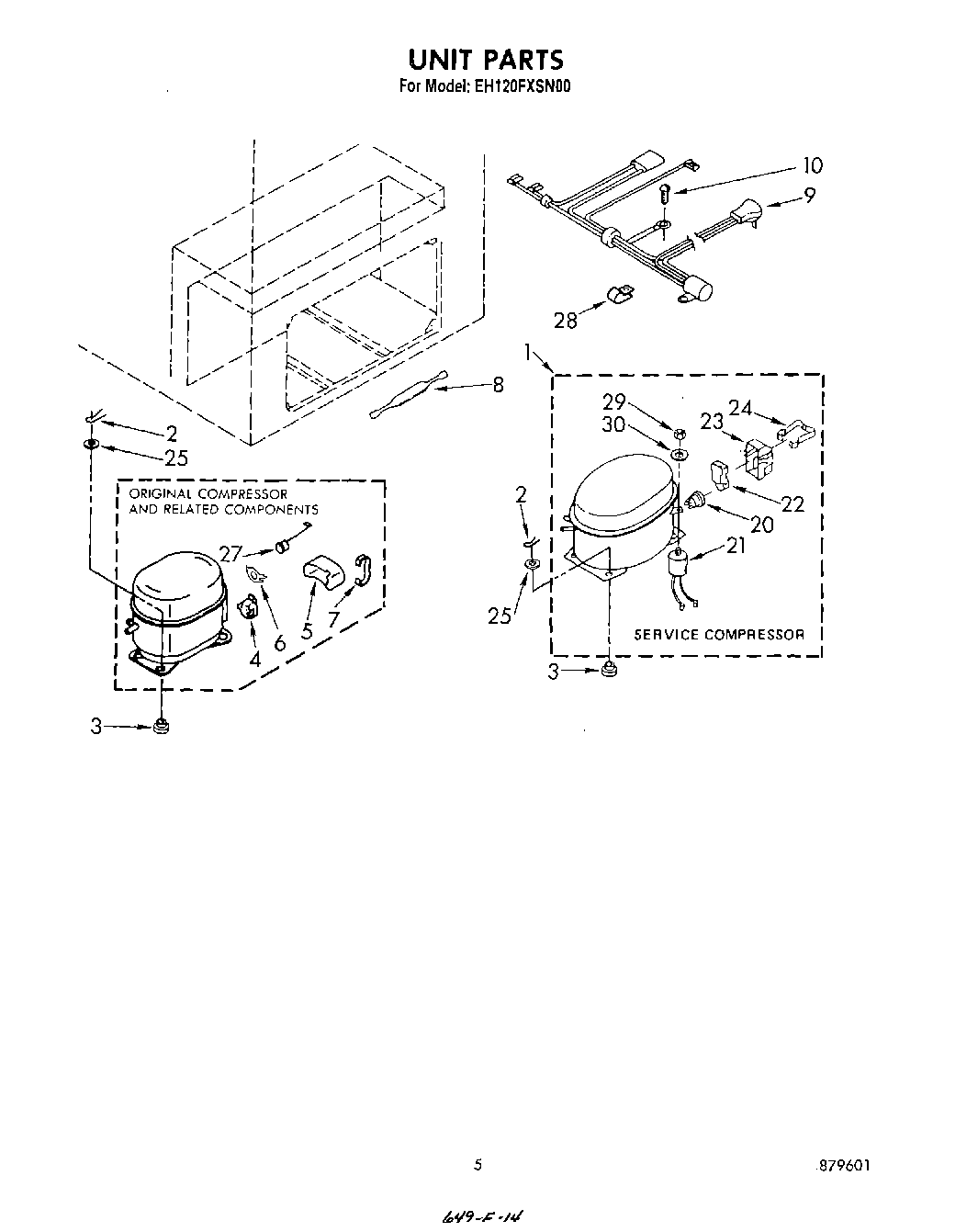

EH120FXSN00 04 – SECTION

Products

PositionProduct
1Compressor (Includes Items 32, 33, 34, 35, 36, 43, & 44)
2Clip (4)
3876811 Whirlpool Grommet
4WP2262181 Whirlpool Refrigerator Start Relay
5Cover, Overload & Relay (W/Original Compressor)
6Overload, Spring (Used W/Original Compressor)
7Clamp, Cover (W/Original Compressor)
8Drier
9Harness, Wiring
10Screw
20Overload
21Capacitor
22Relay
23Cover, Terminal
24Strap
25Washer
27Overload (Used W/Original Compressor)
28Clip, Cord Plug
29Nut
30Washer
