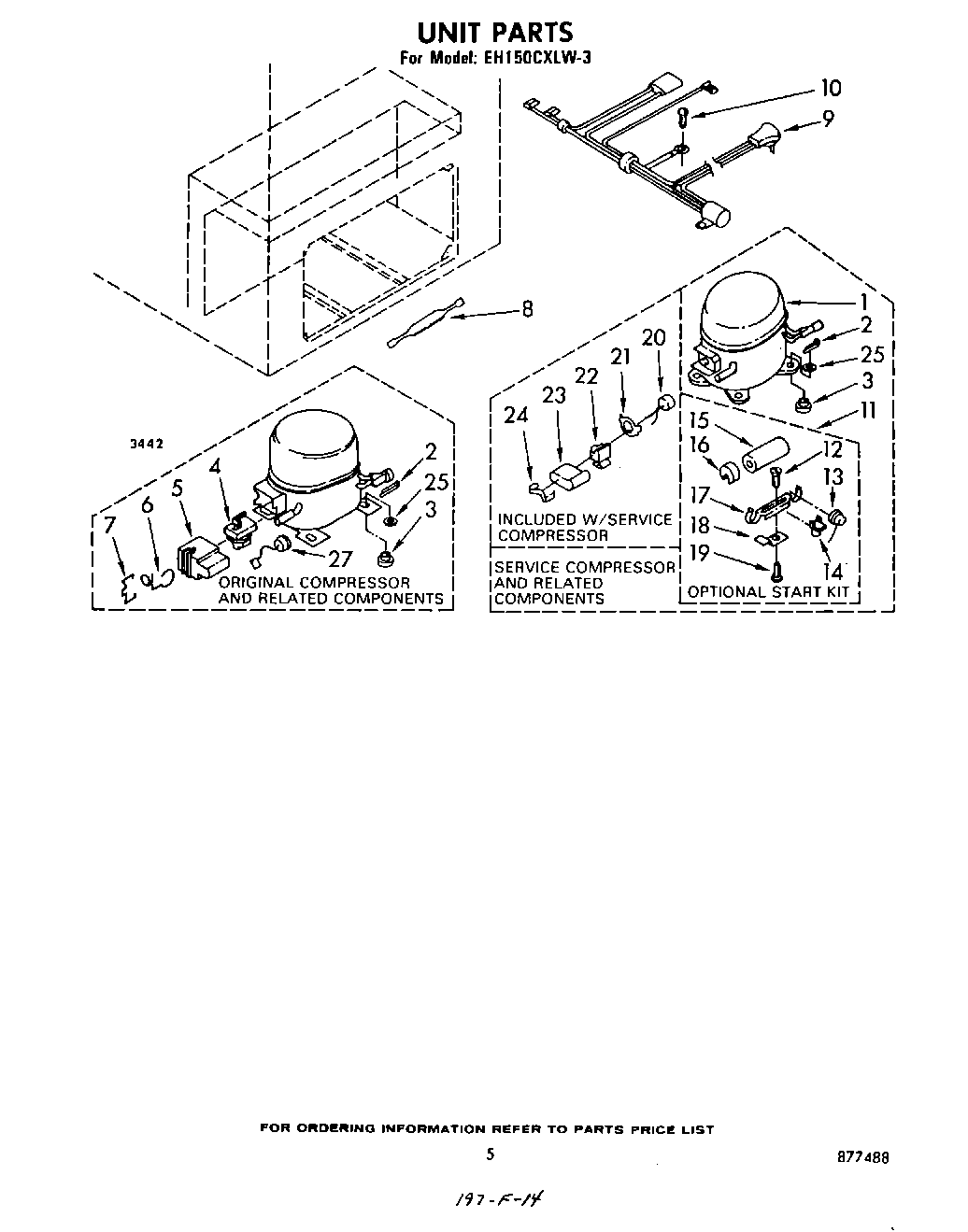

EH150CXLW3 04 – SECTION

Products

Position	Product
1	Compressor (Service Replacement) (Items No.20, 21, 22, 23 & 24 Included With Service Compressor) (Al
2	Clip, Compressor Mounting (4)
3	876811 Whirlpool Grommet
4	Relay (Used W/Original Compressor)
5	Cover, Relay & Overload Assembly (Used W/Original Compressor)
6	Clip (Used W/Original Compressor)
7	Clamp (Used W/Original Compressor)
8	W10843121 Whirlpool Refrigerator Tube
9	Harness, Wiring
10	Screw
11	Start Kit
12	Screw (2) (Used On Start Kit 482278)
13	Overload (Used On Start Kit 482278)
14	Relay (Used On Start Kit 482278)
15	WP482156 Whirlpool Refrigerator Capacitor
16	Cap, Capacitor (Used On Start Kit 482278)
17	Support, Bracket (Used On Start Kit 482278)
18	Bracket, Mounting (Used On Start Kit 482278)
19	Screw (Used On Start Kit 482278)
20	Overload (Used On Service Compressor 702215)
21	Spring
22	Relay (Used On Service Compressor 702215)
23	Case, Relay
24	Cover Strap
25	Washer
27	Ov
