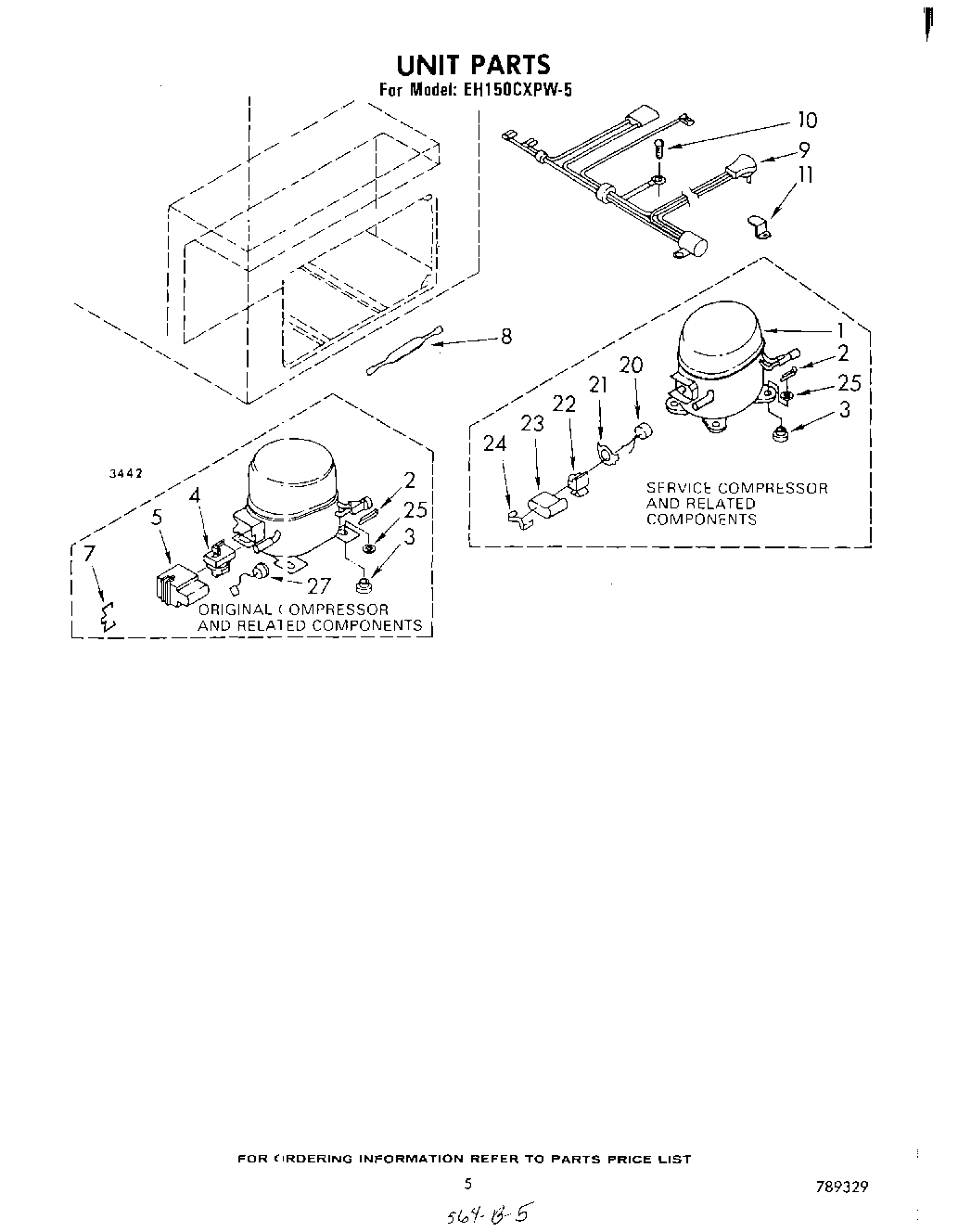

EH150CXPW5 04 – SECTION

Written by

Products

Position	Product
1	W10439652 Whirlpool Refrigerator Compressor
2	Clip (4)
3	876811 Whirlpool Grommet
4	Relay (Used W/Original Compressor)
5	Cover, Terminal
7	Strap
8	Drier
9	Harness, Wiring
10	Screw
11	Clip, Cord Plug
20	Overload
21	Spring, Overload
22	Relay
23	Cover, Terminal
24	Cover, Spring
25	Washer
27	Overload
