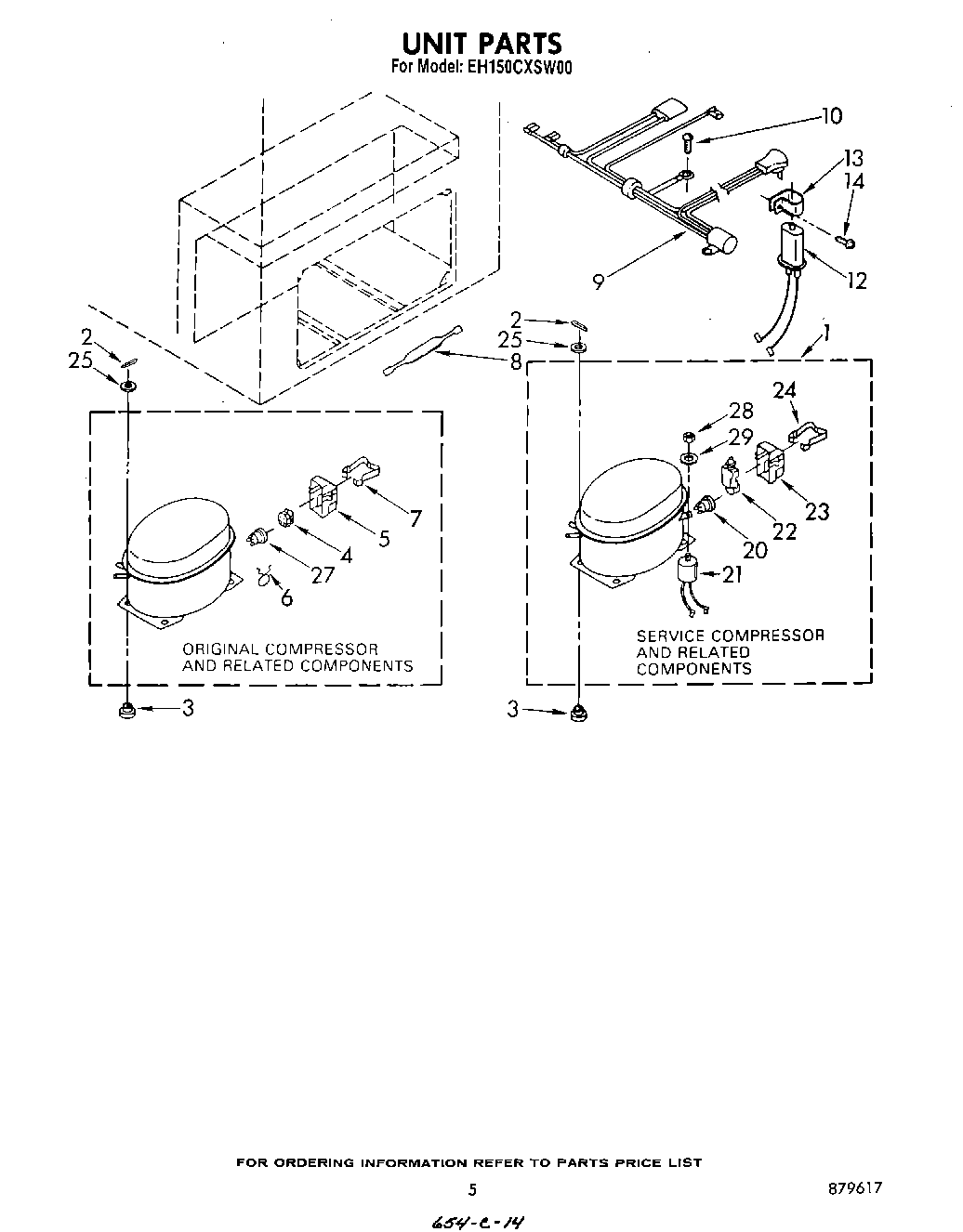

EH150CXSW00 04 – SECTION

Products

Position	Product
1	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
2	Clip (4)
3	876811 Whirlpool Grommet
4	WP2262181 Whirlpool Refrigerator Start Relay
5	Cover
6	Overload Spring
8	Drier
9	Harness, Wiring
10	Screw
12	Running Capacitor
13	WP43449 Whirlpool Bracket
14	Screw, 8-32 x 1/2
20	Overload
21	Capacitor
22	Relay
23	Cover, Terminal
24	Strap
25	Washer
27	Overload (Used w/Original Compressor)
28	Nut
29	Washer
