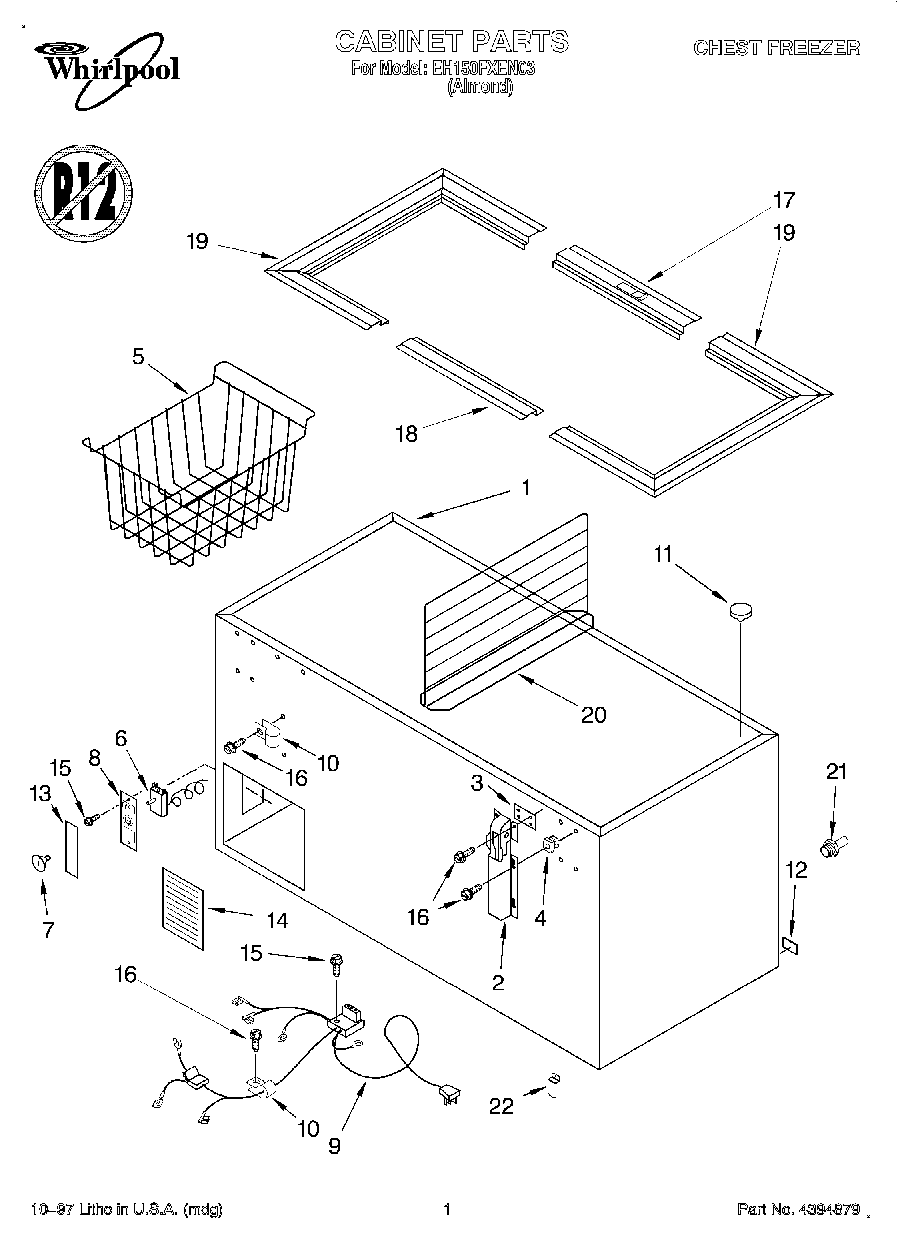

EH150FXEN03 01 – SECTION

Products

Position	Product
	Use & Care Guide
	Energy Label
1	Cabinet (Not A Serviceable Part)
2	Hinge Assembly
3	1-17548-006 Whirlpool Refrigerator Spacer
4	4356321 Whirlpool Refrigerator Grommet
5	Wire Basket
6	WP4-35940-001 Whirlpool Refrigerator Thermostat
7	Knob, Thermostat
8	Control Box
9	Wiring, Harness External
10	488946 Whirlpool Air Conditioner Clamp
11	Drain, Cap
12	Drain, Plug
13	Insert, Control
14	Access Panel
15	3-24004-049 Whirlpool Screw
16	4356491 Whirlpool Refrigerator Screw
17	Front, Breaker Strip
18	Rear, Breaker Strip
19	End, Breaker Strip (2)
20	Divider
21	W11663505 Whirlpool Hose Adapter
22	Clip
22	WP72107 Whirlpool Touchup
22	Almond (Uncut)
22	Rivet Kit (60)
22	350956 Whirlpool Spray Assembly
