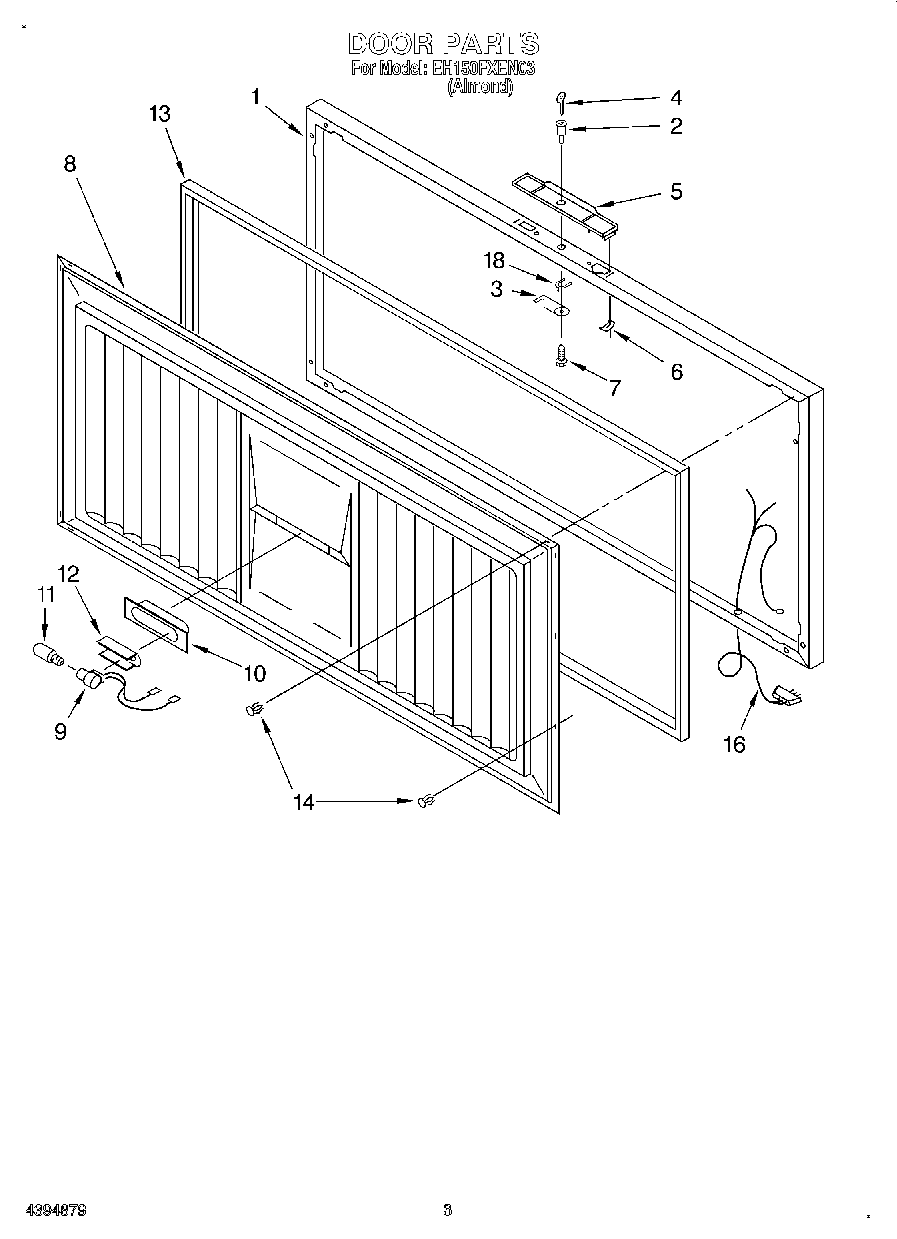

EH150FXEN03 02 – SECTION

Products

Position	Product
1	Exterior Door Panel (Includes Insulation)
2	Lock
3	2-35195-002 Whirlpool Refrigerator Hook
4	Key
5	Handle
6	3-24059-024 Whirlpool Refrigerator Handle Clip
7	SCREW
8	Interior, Door Panel
9	Lamp Socket
10	3-25693-001 Whirlpool Refrigerator Defrost Light
11	W10873798 Whirlpool Refrigerator Light Bulb
12	Heat Shield
13	Gasket
14	Plastic, Mounting Clip
16	Wire Harness
18	Clip
