EH150FXKN2 02 – SECTION

EH150FXKN2 02 – SECTION

Written by

in

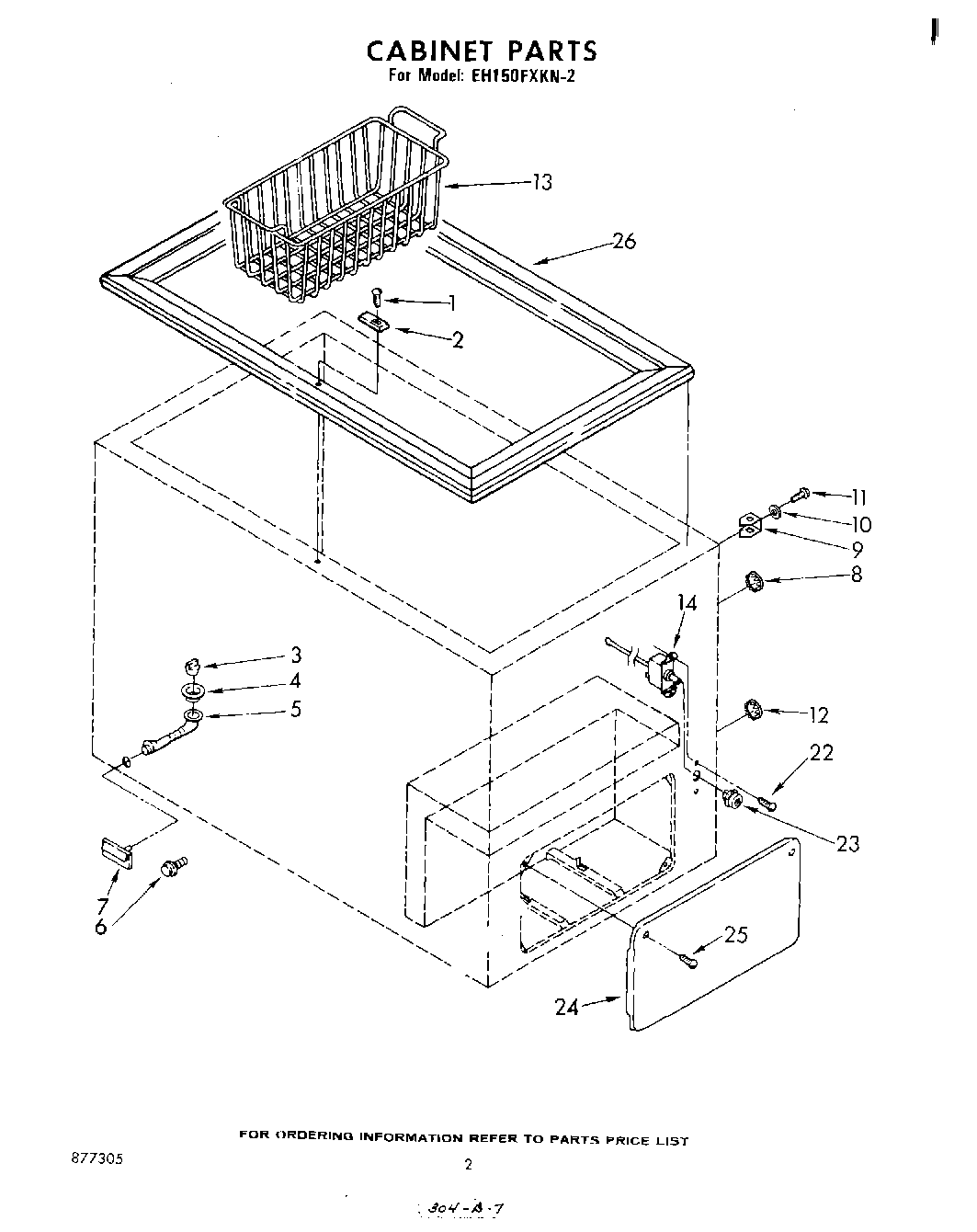

EH150FXKN2 02 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
xEnamel, Black (12 Oz. Spray Can)
Leveler (Thinner) (2oz.)
350942 Whirlpool Spray Paint
1Screw
2Box, Strike
3Plug, Drain
4Ferrule, Drain
5Tube, Drain
6Adapter, Hose
7Cover, Drain
8Plug Button
9Rod Holder Assembly
10WP120393 Whirlpool Washer Assembly
11Screw
12Plug, Button
13Basket (2)
14Control, Cold
22Screw
23Knob, Control
24Door
25Screw
26Guide, Use & Care
2672017 Whirlpool Appliance Touch-Up Paint White
26Kit, Insulation (Door Only)
26List, Parts
26978026 Whirlpool Refrigerator Primary Valve
26WP505587 Whirlpool Refrigerator Sealer
26978027 Whirlpool Refrigerator Primary Valve
26978030 Whirlpool Refrigerator Valve
26WP978025 Whirlpool Refrigerator Valve
26VALVE, ACCESS (1/2“)
26Enamel, Black (1 Qt. Uncut)
26WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
2672032 Whirlpool Touch Up Paint Black
26VALVE, ACCESS (5/8“)
26WPL 799351
26Collar
26Book, How To Freeze
26799344 Whirlpool Refrigerator Paint
26Energy Guide
26212643 Whirlpool Refrigerator Permagum Sealer
