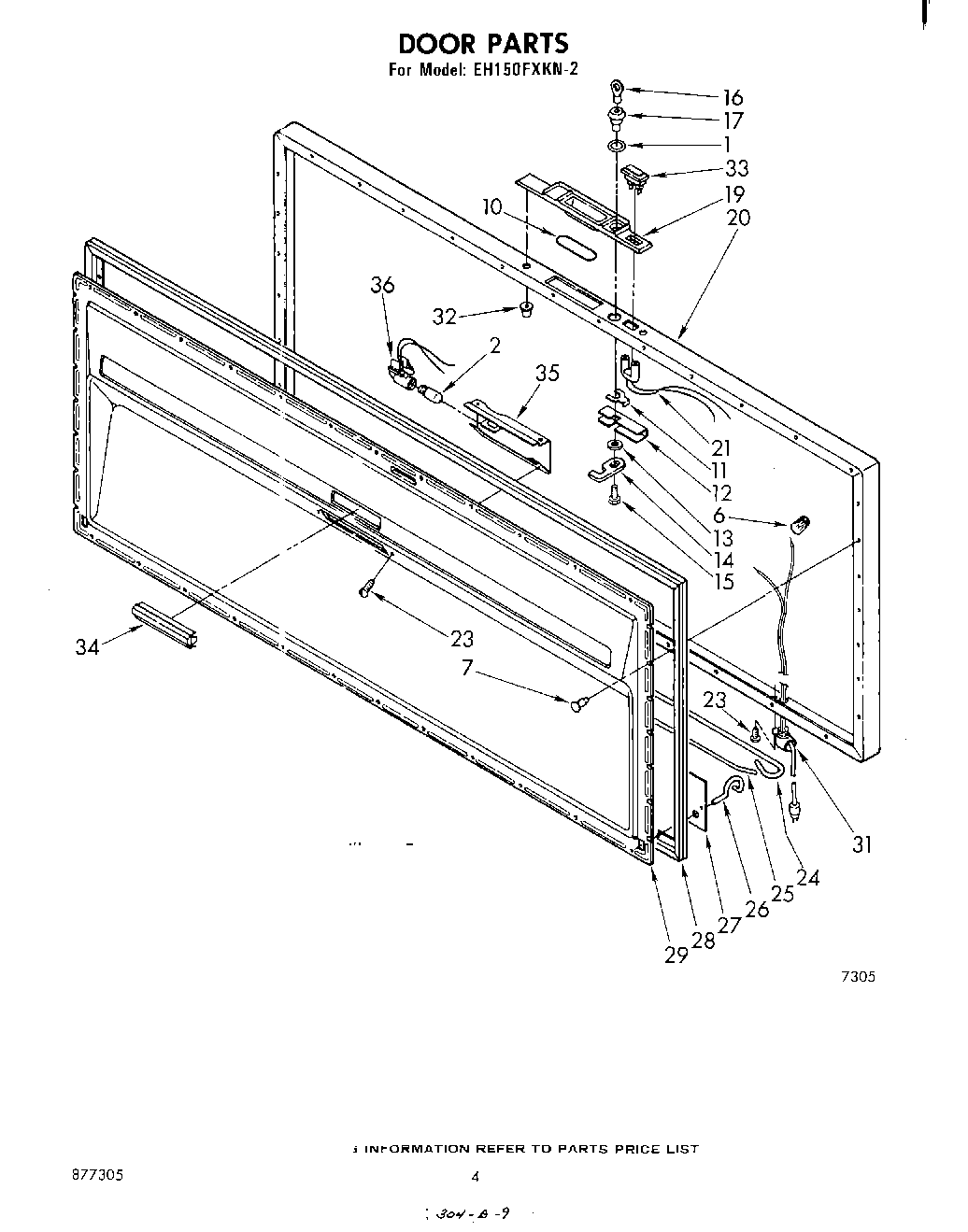

| 1 | ``O`` Ring |
| 2 | W10873798 Whirlpool Refrigerator Light Bulb |
| 6 | Conector, Wire |
| 7 | Clip, Panel (2) |
| 10 | Gasket, Handle |
| 11 | Clip, Lock |
| 12 | Shroud, Lock |
| 13 | Plate, Bolt |
| 14 | Hook, Lock |
| 15 | Screw |
| 16 | WP842177 Whirlpool Refrigerator Door Key |
| 17 | Lock |
| 19 | Handle |
| 20 | Panel, Door Exterior (Almond) |
| 21 | Plug, Indicator Light |
| 23 | WP965173 Whirlpool Dishwasher Screw |
| 24 | Bar, L.H. Torsion |
| 25 | Bar, R.H. Torsion |
| 26 | Hinge, R.H. |
| 26 | Hinge, L.H. |
| 27 | Cover, Hinge Rod (2) |
| 28 | Gasket |
| 29 | Panel, Door Interior |
| 31 | Harness, Exterior Door |
| 32 | Clip, Tubular (2) |
| 33 | Light, Indicator |
| 34 | Lens, Light |
| 35 | Deflector, Light |
| 36 | Lampholder |
