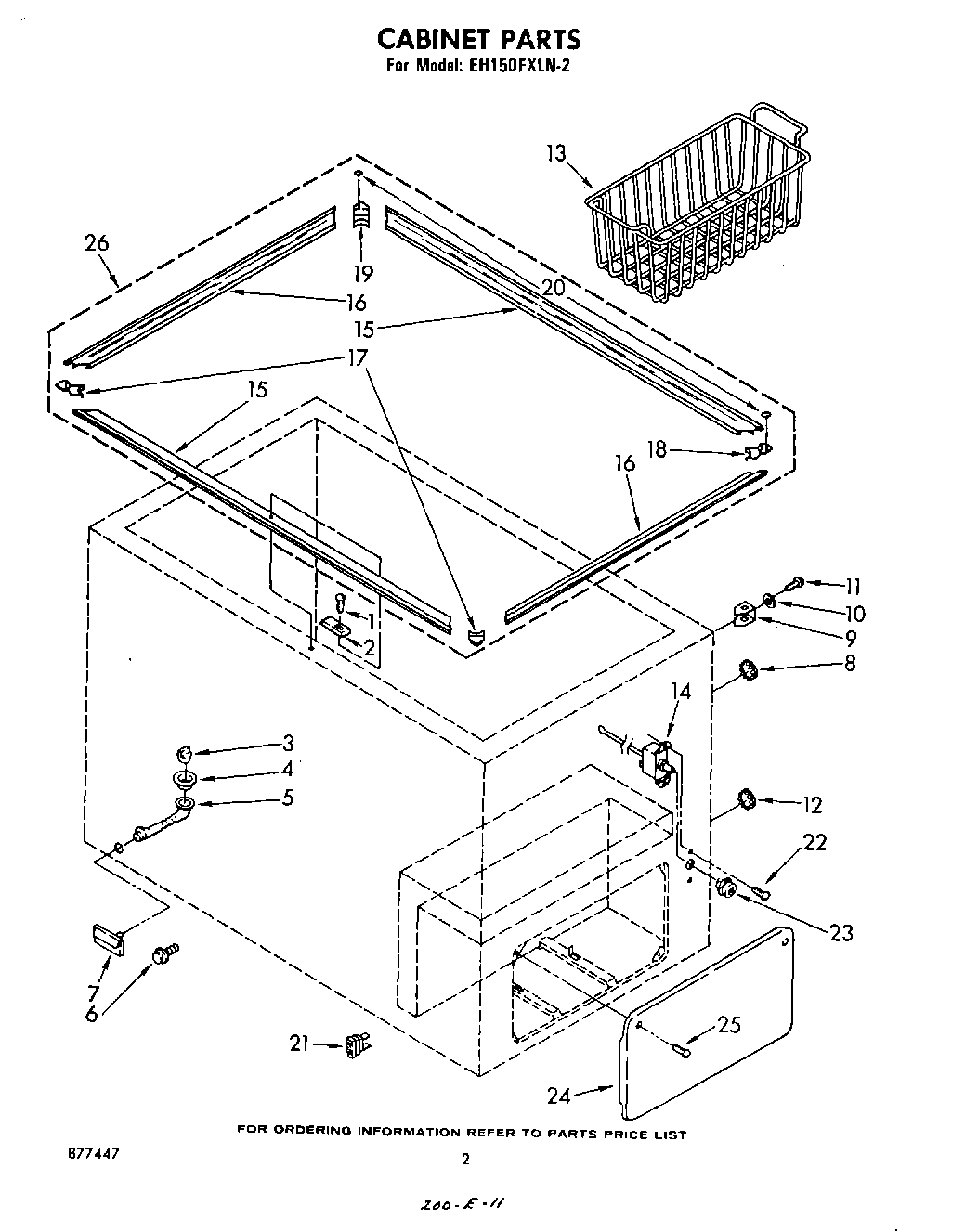

EH150FXLN2 02 – CABINET, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	xEnamel, Black (12 Oz. Spray Can)
	Leveler (Thinner) (2oz.)
	350942 Whirlpool Spray Paint
1	Screw
2	Box, Strike
3	Plug, Drain
4	Ferrule, Drain
5	Tube, Drain
6	Adapter, Hose
7	Cover, Drain
8	Plug Button
9	Rod Holder Assembly
10	WP120393 Whirlpool Washer Assembly
11	Screw
12	Plug, Button
13	Basket (2)
14	Control, Cold
15	Collar (2) (Front & Rear)
16	Collar, End (2)
17	Corner, Front (2)
18	Corner (Right Rear)
19	Corner (Left Rear)
20	Grommet (2)
21	Light, Indicator
22	Screw
23	Knob, Control
24	Door
25	Screw
26	978027 Whirlpool Refrigerator Primary Valve
26	Tech Sheet
26	WP505587 Whirlpool Refrigerator Sealer
26	212643 Whirlpool Refrigerator Permagum Sealer
26	978026 Whirlpool Refrigerator Primary Valve
26	VALVE, ACCESS (5/8“)
26	799344 Whirlpool Refrigerator Paint
26	72017 Whirlpool Appliance Touch-Up Paint White
26	Guide, Use & Care
26	978030 Whirlpool Refrigerator Valve
26	List, Parts
26	Energy Guide
26	Kit, Insulation (Door Only)
26	Collar
26	WPL 799351
26	72032 Whirlpool Touch Up Paint Black
26	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
26	Enamel, Black (1 Qt. Uncut)
26	VALVE, ACCESS (1/2“)
26	WP978025 Whirlpool Refrigerator Valve
26	Book, How To Freeze
