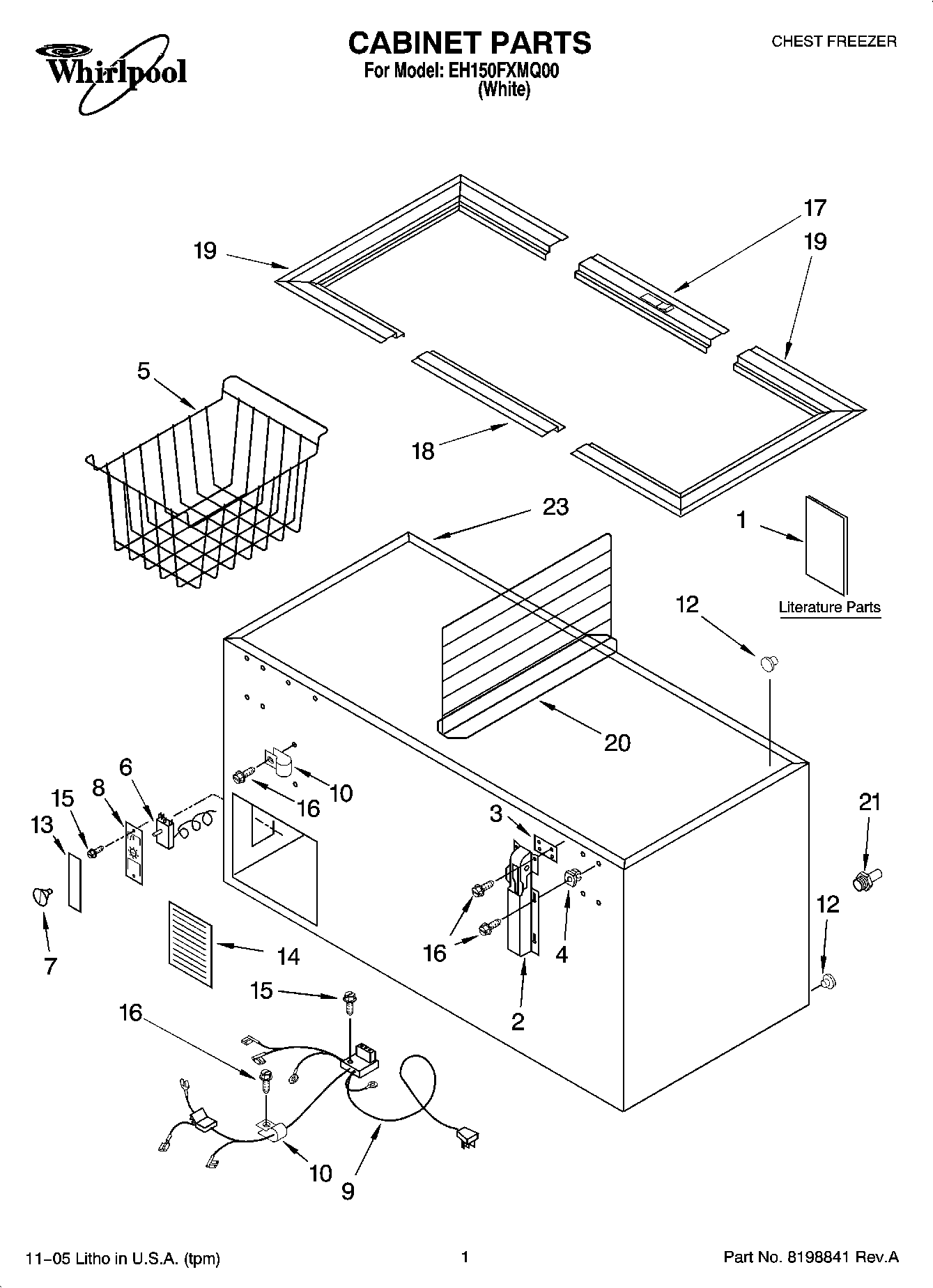

EH150FXMQ00 01 – CABINET PARTS

Products

Position	Product
1	Owner`s Manual
1	Energy Guide
2	Hinge, Assembly
3	1-17548-006 Whirlpool Refrigerator Spacer
4	4356321 Whirlpool Refrigerator Grommet
5	Wire Basket (Lower, Standard (2))
5	W11553315 Whirlpool Refrigerator Basket
6	WP4-35940-001 Whirlpool Refrigerator Thermostat
7	Thermostat, Knob
8	W10682894 Whirlpool Refrigerator Control Box
9	External, Wiring Harness
10	488946 Whirlpool Air Conditioner Clamp
12	Drain, Cap
13	Insert, Control
14	Access Panel
15	3-24004-049 Whirlpool Screw
16	4356491 Whirlpool Refrigerator Screw
17	4-35011-004 Whirlpool Refrigerator Breaker Trim
18	4-35010-004 Whirlpool Breaker Trim
19	W11045300 Whirlpool Refrigerator Trim Bracket
20	Divider
21	W11663505 Whirlpool Hose Adapter
23	Cabinet (Not A Serviceable Part)
23	Parts Not Illustrated and Optional Parts (Not Included)
23	350930 Whirlpool White Spray Paint
23	Rivet Kit (60)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	Customer Touch-Up Material
