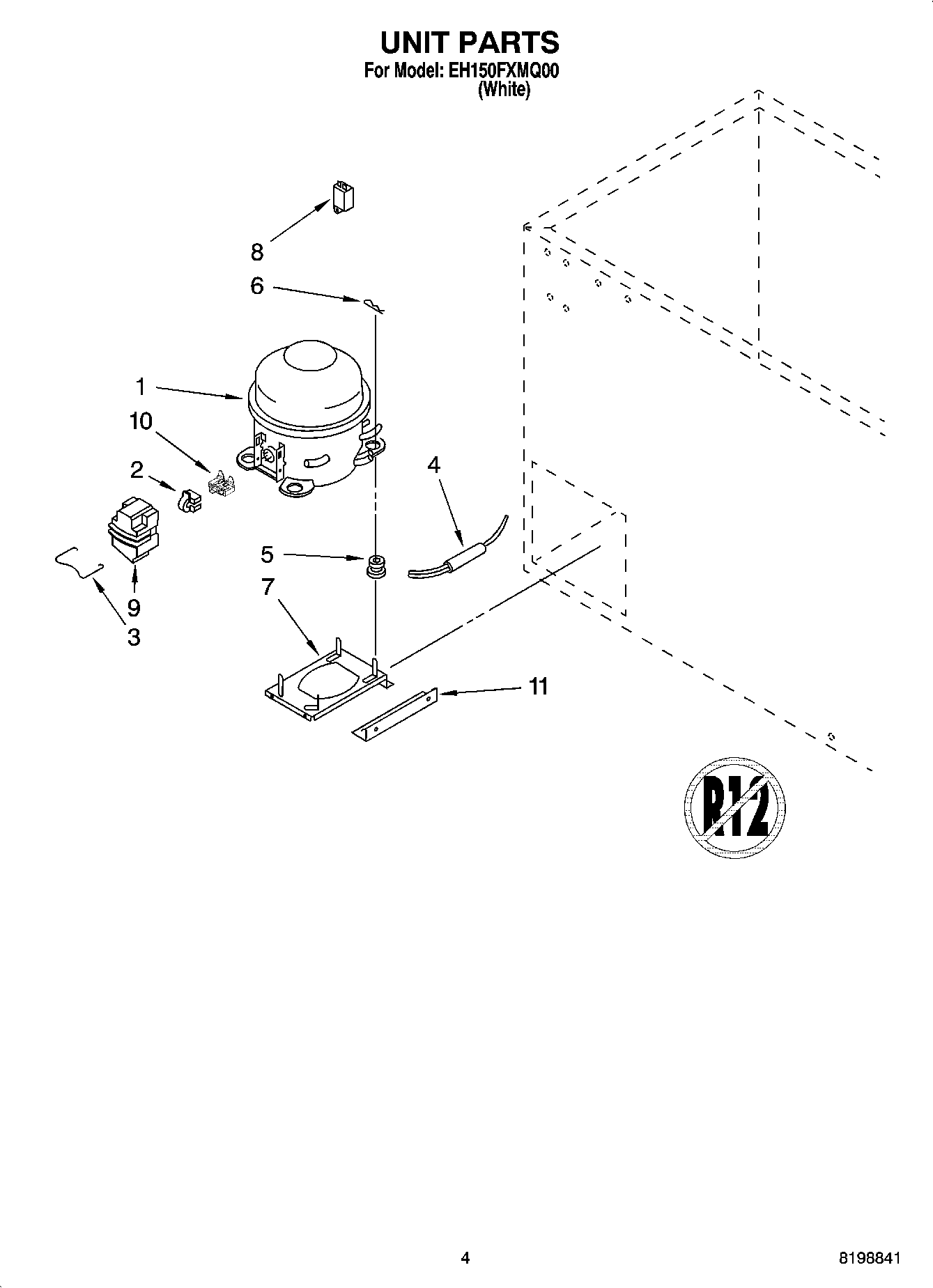

EH150FXMQ00 03 – UNIT PARTS

Products

PositionProduct
1Compressor (Includes Items 2, 9 & 10)
2Relay
3Clip, Cover
4W10843121 Whirlpool Refrigerator Tube
5Grommet, Mounting Compressor
6Clip, Hitch Pin
7Base, Compressor
8WPW10662129 Whirlpool Refrigerator Run Capacitor
9Cover
10Overload
113-81556-001 Whirlpool Brace
11REFRIGERANT CHARGE 4.8 oz. (R-134A)
