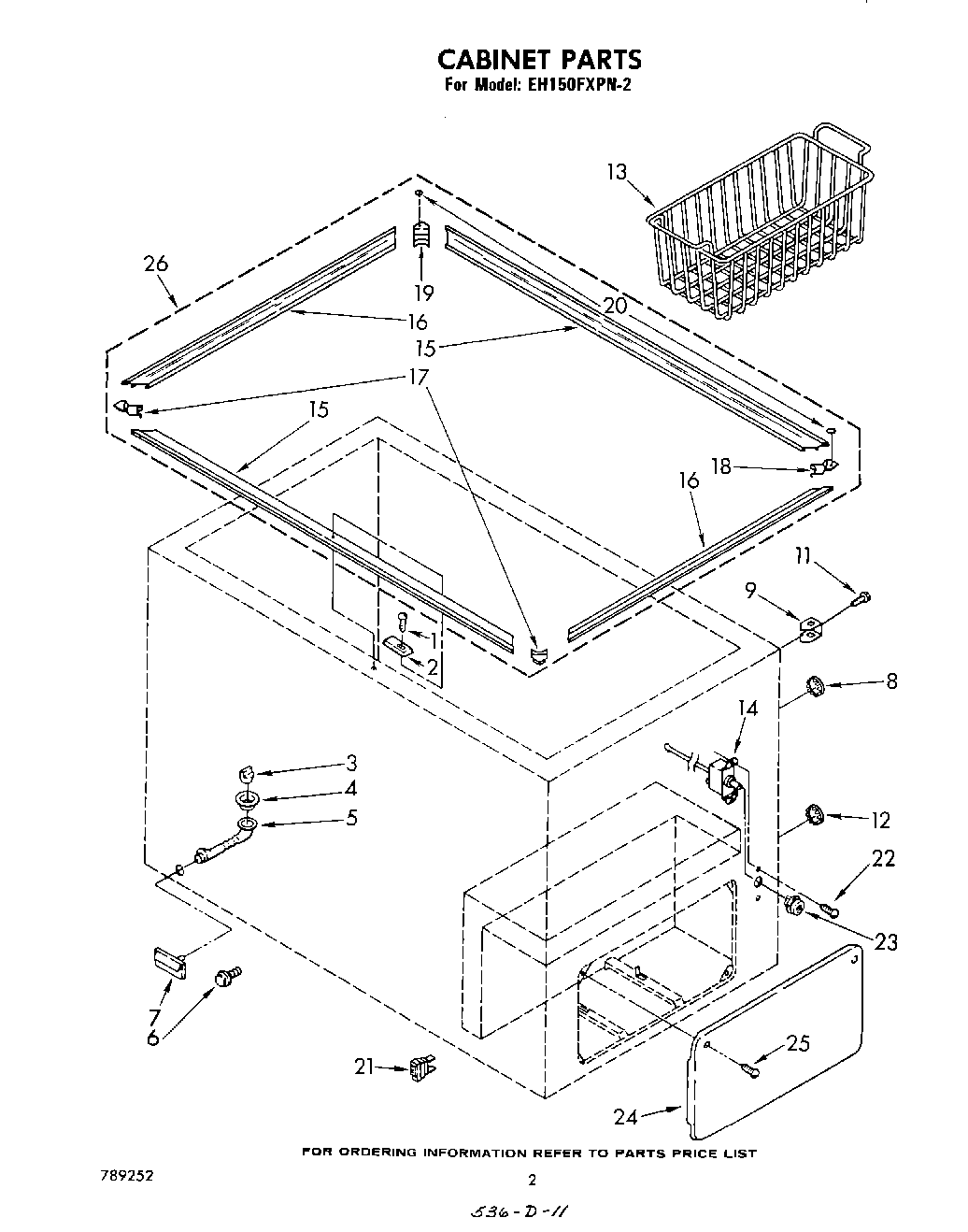

EH150FXPN2 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	xEnamel, Black (12 Oz. Spray Can)
	Leveler (Thinner) (2oz.)
	350942 Whirlpool Spray Paint
1	Screw
2	Box, Strike
3	Plug, Drain
4	Ferrule, Drain
5	Tube, Drain
6	Adapter, Hose
7	Cover, Drain
8	Plug Button
9	Rod Holder Assembly
11	Bolt, Machine
12	Plug, Button
13	Basket (2)
14	Control, Cold
15	Collar (2) (Front & Rear)
16	Collar, End (2)
17	Corner, Front (2)
18	Corner (Right Rear)
19	Corner (Left Rear)
20	Grommet (2)
21	Light, Indicator
22	Screw
23	Knob, Control
24	Door
25	Screw
26	Collar Kit (Items 15, 16, 17 18, 19, and 20 Are Included In Collar Kit)
26	Use & Care Guide
26	Energy Guide
26	List, Parts
26	Tech Sheet
26	978026 Whirlpool Refrigerator Primary Valve
26	799344 Whirlpool Refrigerator Paint
26	VALVE, ACCESS (5/8“)
26	212643 Whirlpool Refrigerator Permagum Sealer
26	WP505587 Whirlpool Refrigerator Sealer
26	978027 Whirlpool Refrigerator Primary Valve
26	978030 Whirlpool Refrigerator Valve
26	WP978025 Whirlpool Refrigerator Valve
26	VALVE, ACCESS (1/2“)
26	Enamel, Black (1 Qt. Uncut)
26	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
26	72032 Whirlpool Touch Up Paint Black
26	WPL 799351
26	Book, How To Freeze
26	Kit, Insulation (Door Only)
26	72017 Whirlpool Appliance Touch-Up Paint White
