EH150FXSN00 04 – SECTION

Products

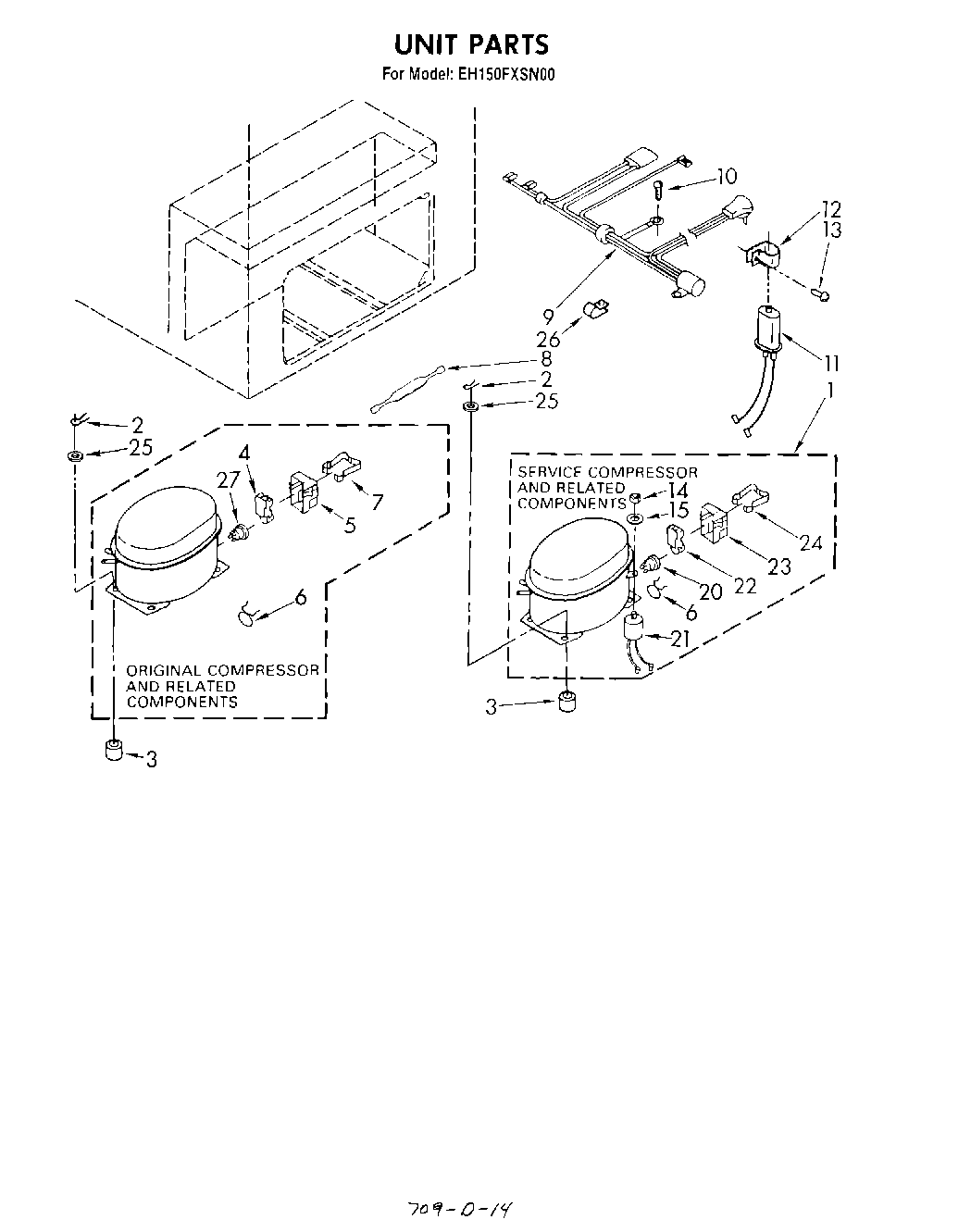

PositionProduct
1Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
2Clip (4)
3876811 Whirlpool Grommet
4Relay
5Cover, Terminal
6Overload Spring
8Drier
9Harness, Wiring
10Screw
11Running, Capacitor
12Clamp, Capacitor
13WP489128 Whirlpool Refrigerator Screw
14Nut
15Washer
20Overload
21Capacitor (Used On Service Compressor)
22WP2262181 Whirlpool Refrigerator Start Relay
23Cover
24Strap
25Washer
26Clip, Cord Plug
27Overload
