EH150FXWN00 02 – SECTION

Products

Position	Product

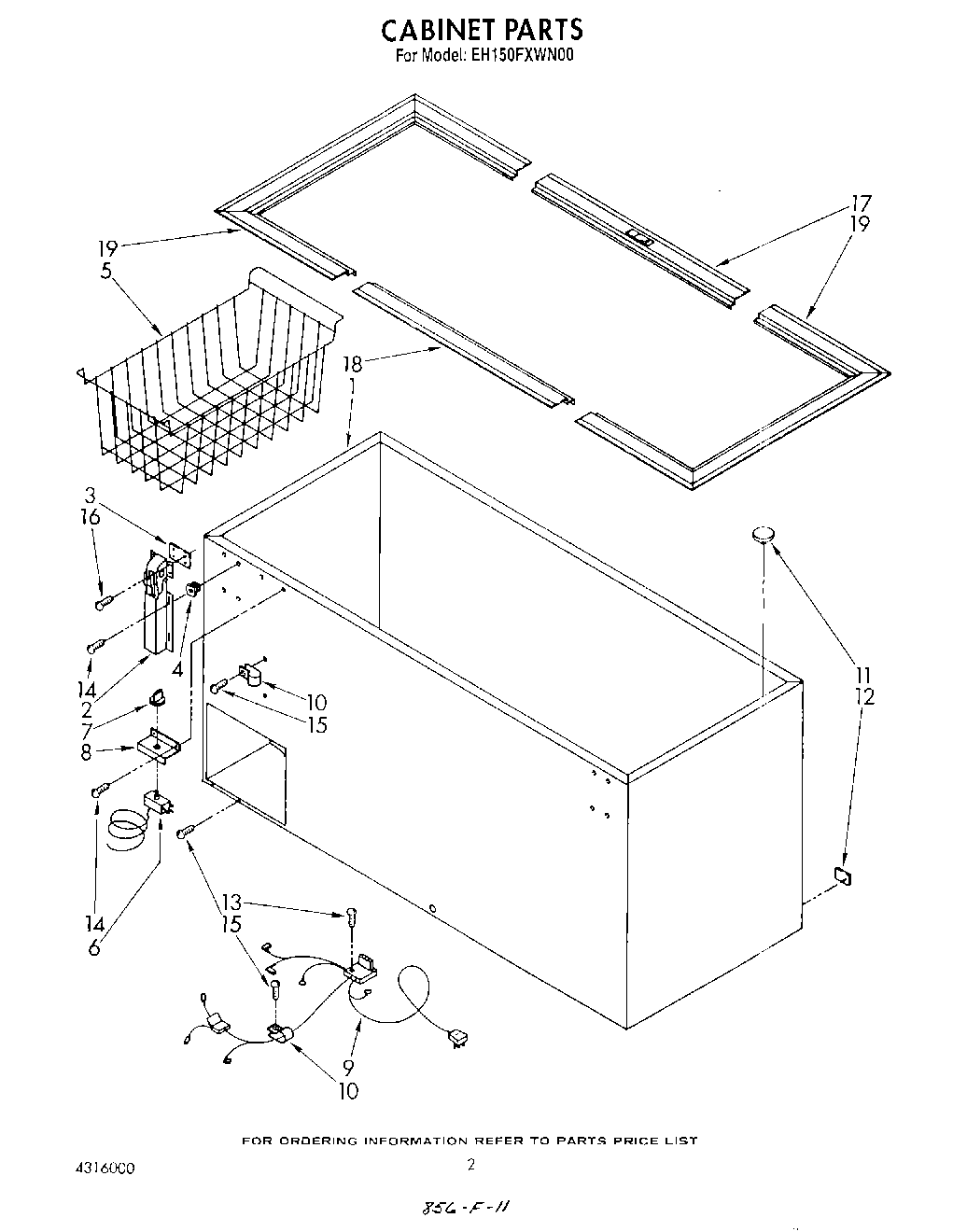

	Parts List
1	Cabinet (Not A Serviceable Part)
2	Hinge, Assembly
3	1-17548-006 Whirlpool Refrigerator Spacer
4	4356321 Whirlpool Refrigerator Grommet
5	Wire Basket
6	Thermostat
7	Thermostat, Knob
8	Thermostat, Control Bracket
9	External, Wiring Harness
10	488946 Whirlpool Air Conditioner Clamp
11	Drain, Plug
12	Drain, Cap
13	Screw
14	WP308685 Whirlpool Microwave Screw
15	WP488787 Whirlpool Refrigerator Screw
16	Screw
17	Front, Breaker Strip
18	Rear, Breaker Strip
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	End, Breaker Strip (2)
19	350956 Whirlpool Spray Assembly
