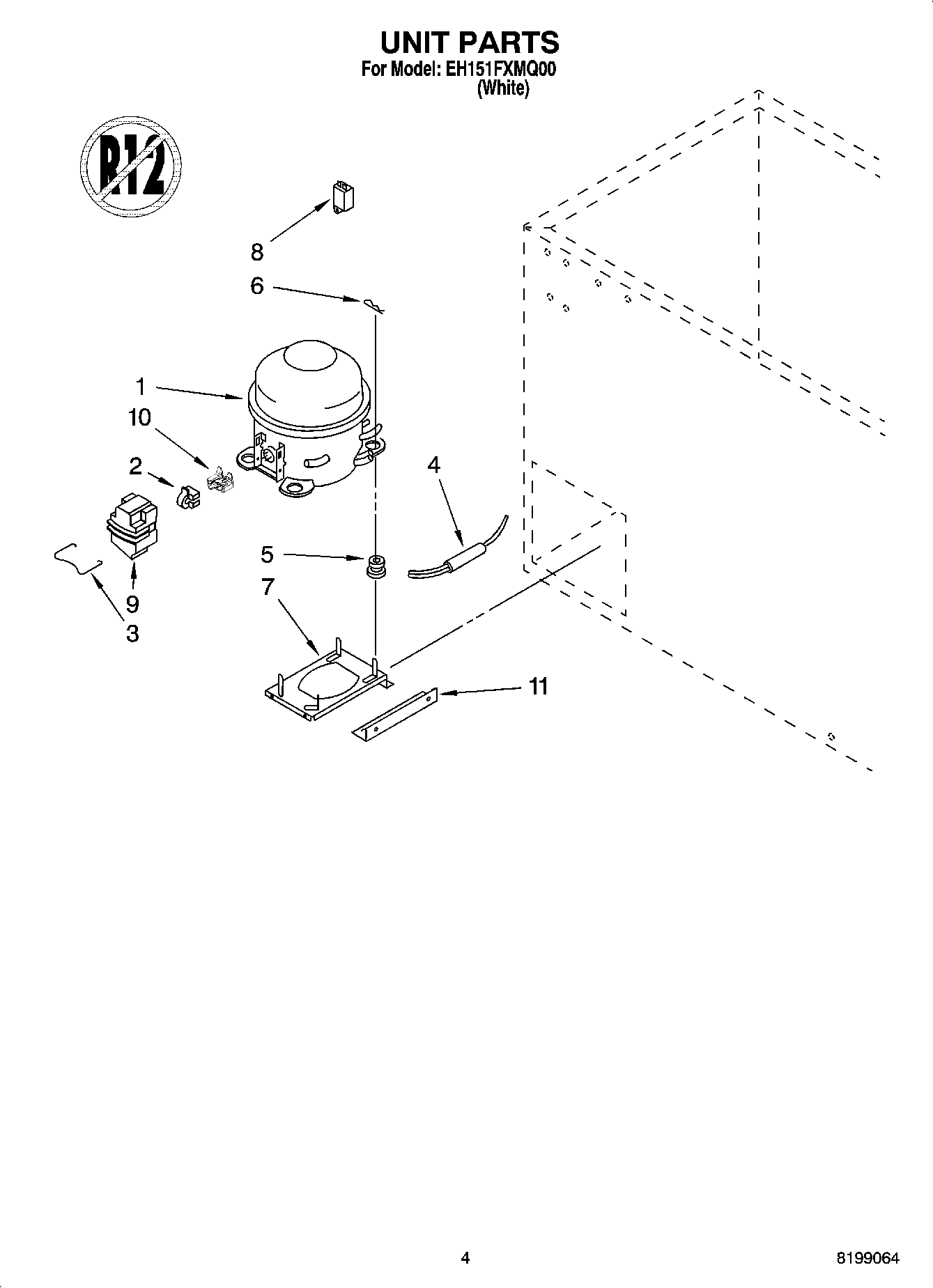

EH151FXMQ00 03 – UNIT PARTS

Products

Position	Product
1	Compressor (Includes Items 2, 9 & 10)
2	Relay
3	Clip, Cover
4	W10843121 Whirlpool Refrigerator Tube
5	Grommet, Mounting Compressor
6	Clip, Hitch Pin
7	Base, Compressor
8	WPW10662129 Whirlpool Refrigerator Run Capacitor
9	Cover
10	Overload
11	3-81556-001 Whirlpool Brace
11	REFRIGERANT CHARGE 4.8 oz. (R-134A)
