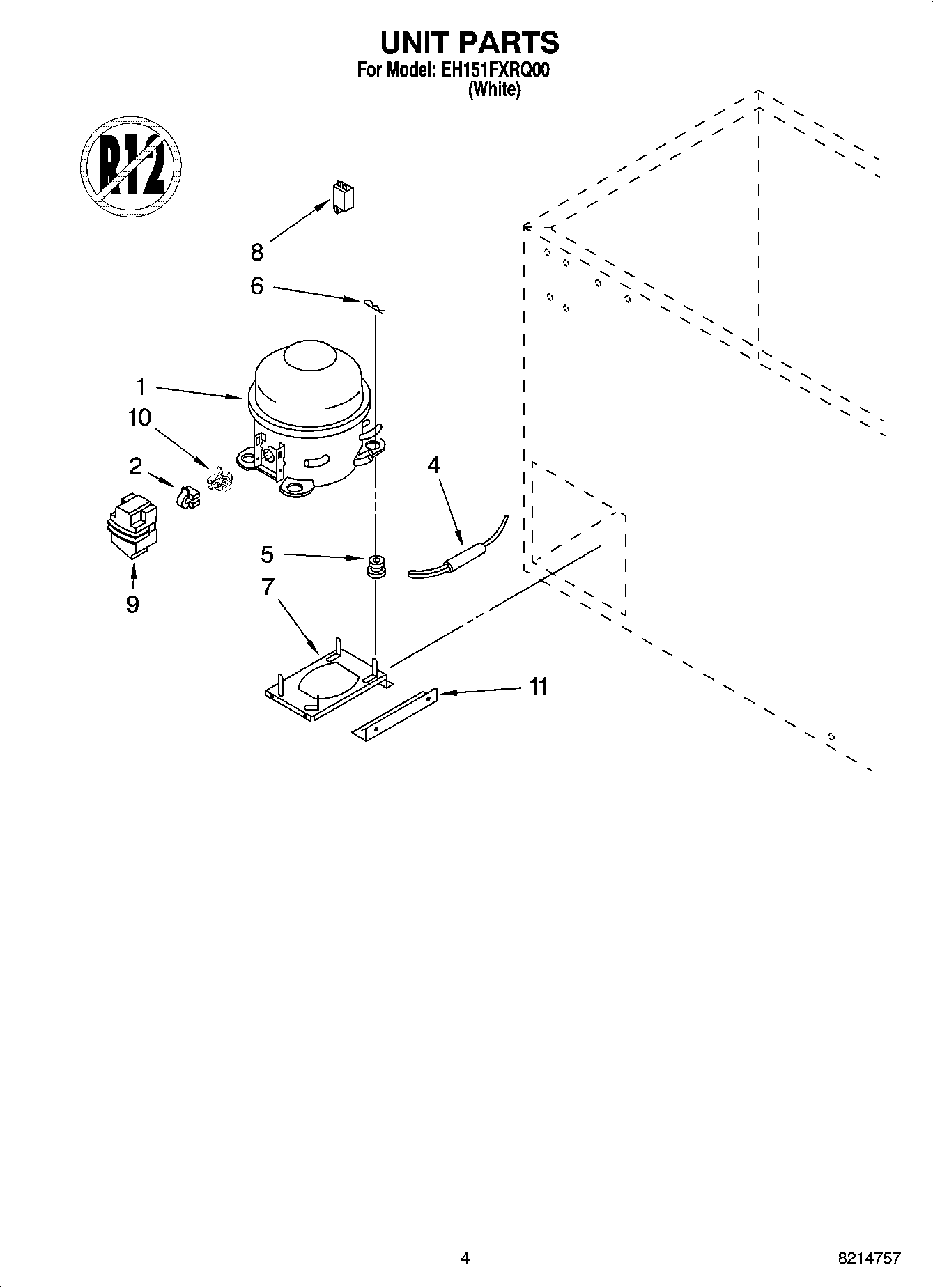

EH151FXRQ00 03 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Parts Not Illustrated and Optional Parts (Not Included)
	Customer Touch-Up Material
	Rivet Kit (60)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
1	Compressor (Includes Items 2, 9 & 10)
2	Relay
4	W10843121 Whirlpool Refrigerator Tube
5	Grommet, Mounting Compressor
6	Clip, Hitch Pin
7	Base, Compressor
8	Capacitor
9	4356777 Whirlpool Term Cover
10	WP2214067 Whirlpool Refrigerator Overload Relay
11	REFRIGERANT CHARGE 4.8 oz. (R-134A)
11	3-81556-001 Whirlpool Brace
