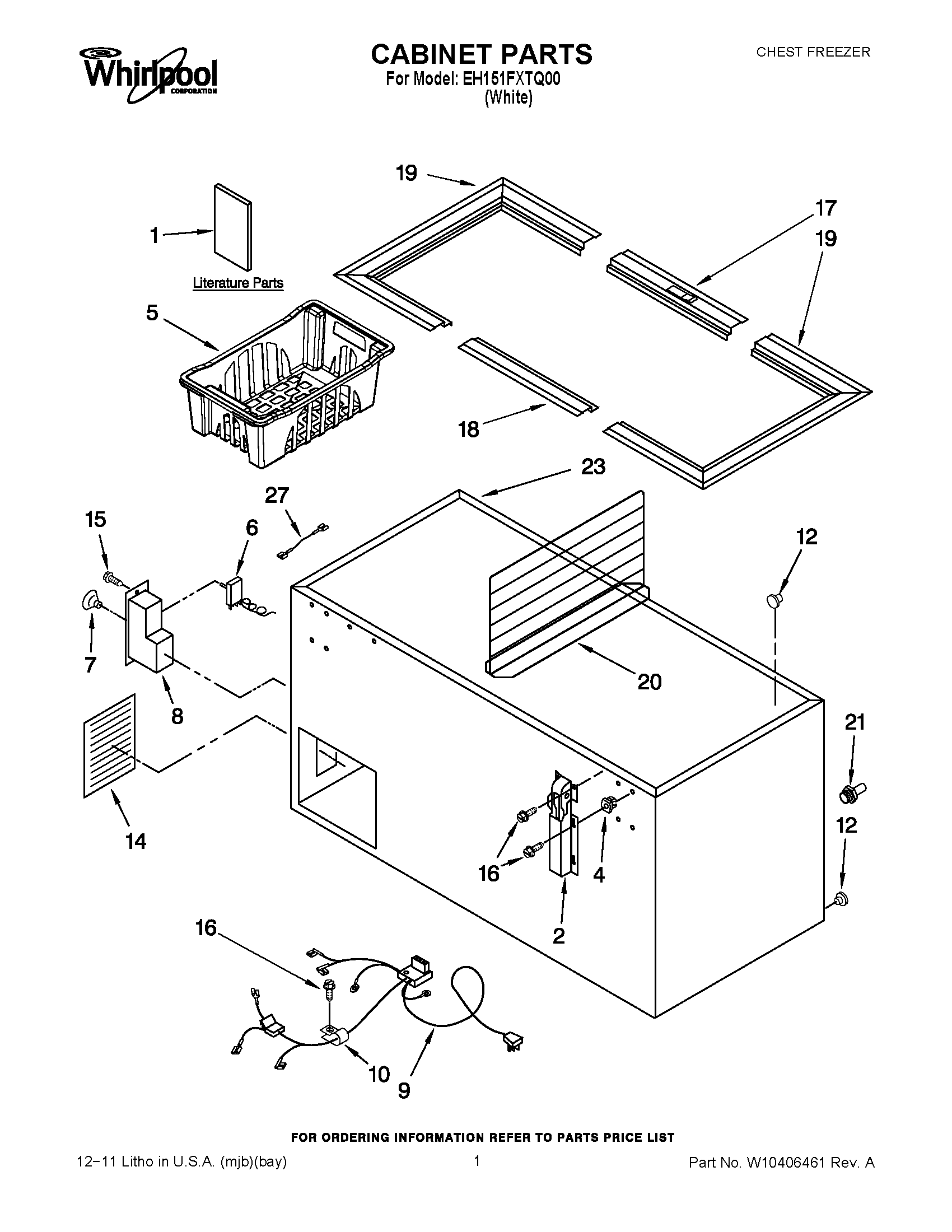

EH151FXTQ00 01 – CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE/TAG
1	OWNERS MANUAL
2	HINGE, ASSEMBLY
4	4356321 Whirlpool Refrigerator Grommet
5	W11553315 Whirlpool Refrigerator Basket
6	WP4-35940-001 Whirlpool Refrigerator Thermostat
7	Thermostat, Knob
8	W10682894 Whirlpool Refrigerator Control Box
9	4-35130-004 Whirlpool Refrigerator Harness
10	488946 Whirlpool Air Conditioner Clamp
12	Drain, Cap
14	Access Panel
15	3-24004-049 Whirlpool Screw
16	4356491 Whirlpool Refrigerator Screw
17	4-35011-004 Whirlpool Refrigerator Breaker Trim
18	4-35010-004 Whirlpool Breaker Trim
19	W11045300 Whirlpool Refrigerator Trim Bracket
20	Divider
21	W11663505 Whirlpool Hose Adapter
23	CABINET (NOT A SERVICEABLE PART)
27	Wire, Lead
