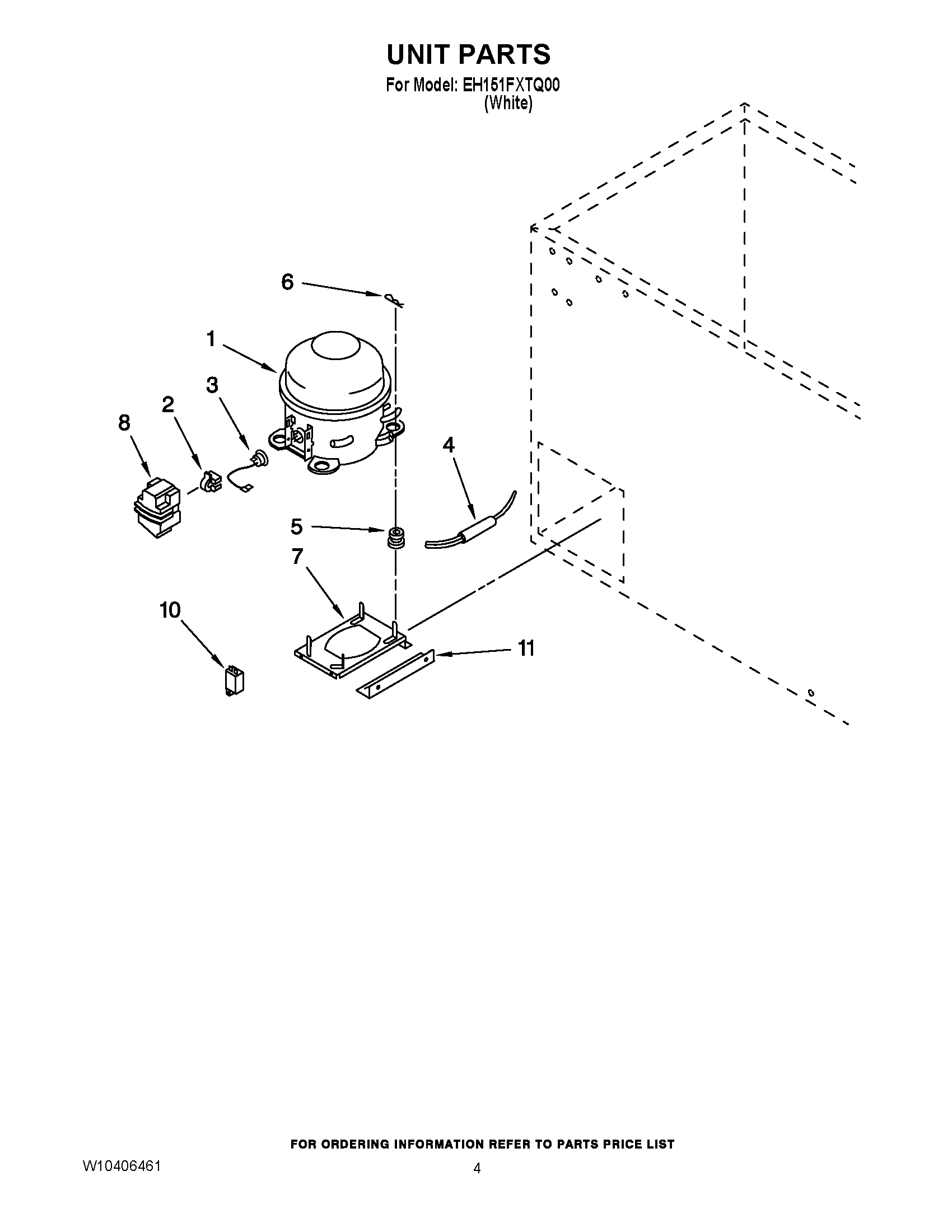

EH151FXTQ00 03 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1COMPRESSOR (INCLUDES ITEMS 2, 3, 4, 5, 6 & 8)
2Relay
3WP2214067 Whirlpool Refrigerator Overload Relay
4W10843121 Whirlpool Refrigerator Tube
5Grommet, Mounting Compressor
6A201435 Whirlpool Refrigerator Clip
7Base, Compressor
84356777 Whirlpool Term Cover
10Capacitor
113-81556-001 Whirlpool Brace
