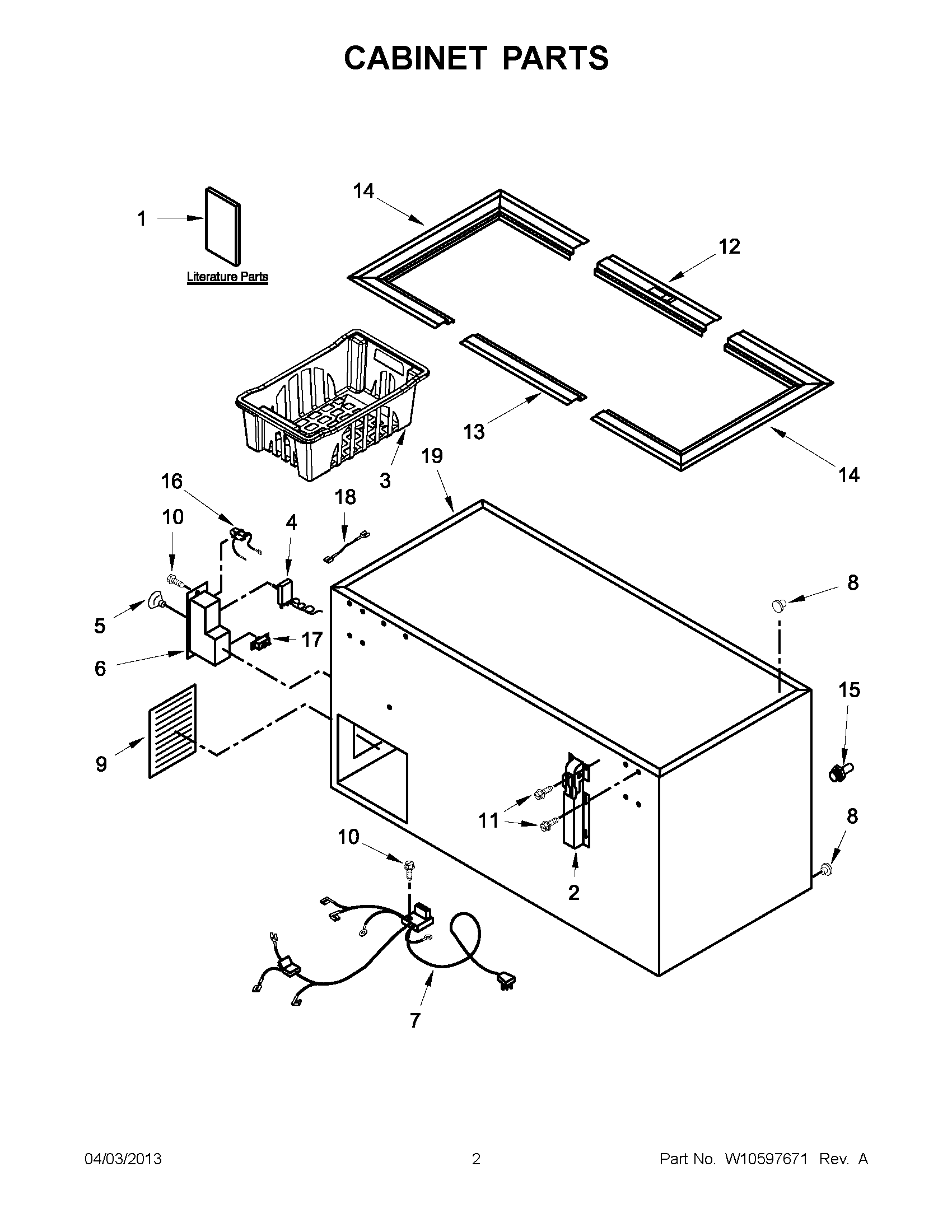

EH155FXBQ00 01 – CABINET PARTS

Written by

Products

Position	Product
1	OWNERS MANUAL
1	ENERGY GUIDE/TAG
2	HINGE, ASSEMBLY
3	BASKET
4	THERMOSTAT
5	KNOB, THERMOSTAT
6	CONTROL BOX
7	HARNESS, WIRING
8	DRAIN, PLUG
9	ACCESS PANEL
10	SCREW
11	SCREW
12	FRONT, BREAKER STRIP
13	REAR, BREAKER STRIP
14	END, BREAKER STRIP (2)
15	ADAPTER, DRAIN
16	BUZZER, DOOR ALARM
17	SWITCH, ALARM
18	WIRE, LEAD
19	CABINET (NOT A SERVICEABLE PART)
