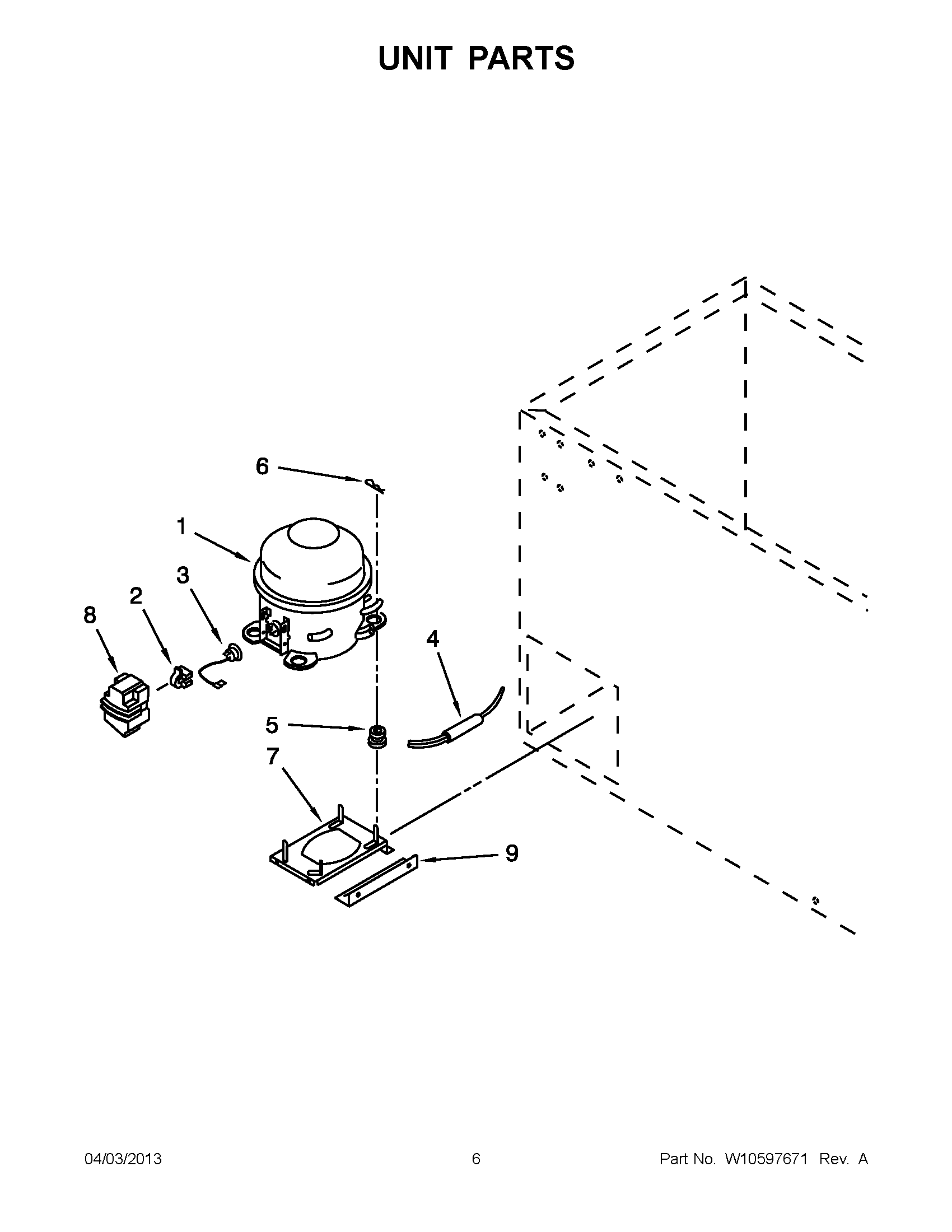

EH155FXBQ00 03 – UNIT PARTS

Written by

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	COMPRESSOR (INCLUDES ITEMS 2, 3, 4, 5, 6 & 8)
2	RELAY
3	OVERLOAD
4	W10843121 Whirlpool Refrigerator Tube
5	WP2163786 Whirlpool Refrigerator Grommet
6	A201435 Whirlpool Refrigerator Clip
7	COMPRESSOR BASE
8	COVER
9	BRACE
