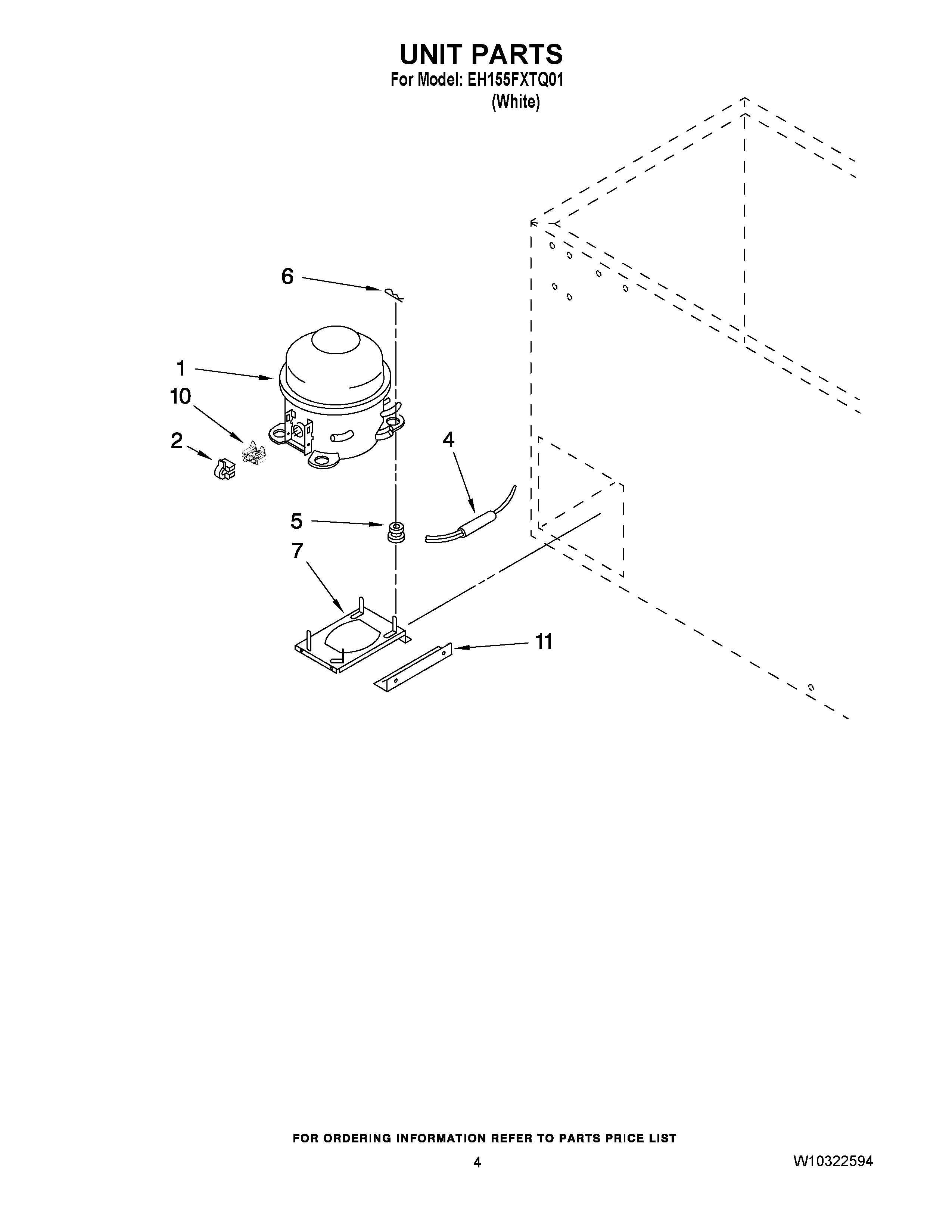

EH155FXTQ01 03 – UNIT PARTS

Written by

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W10309989 Whirlpool Refrigerator Compressor
2	Relay
4	W10843121 Whirlpool Refrigerator Tube
5	Grommet, Mounting Compressor
6	COMPRESSOR, HITCH PIN
7	Base, Compressor
10	WP2214067 Whirlpool Refrigerator Overload Relay
11	3-81556-001 Whirlpool Brace
